MEAN WELL Enclosed Power Supply LRS-100N2-12 102W 12V - 副本

Product Item : LRS-100N2-12
Category：Enclosed Type
Wattage: 102W
Input Voltage: 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Output Current: 0 ~ 8.5A
Output Voltage: 12V
Product description：LRS-100N2 series is a 100W single-output enclosed type power supply with 30mm of low profile design.
INQUIRY EMAIL

LRS-100N2 Series — 100W Single-Output High Peak Power Supply

30mm Ultra-Slim 1U Profile | 200% Peak Power | -30~70°C Wide Temp | 3-Year Warranty | CE / UL / TUV Certified

✓ In Stock 3-Year Warranty 200% Peak Power CE / UL / TUV RoHS Compliant

				Key Performance at a Glance

						100W

						Rated Power

						200%

						Peak Power Capability

						90.5%

						Max Efficiency

						30mm

						Ultra-Slim Profile

						-30~70°C

						Operating Temp Range

						5G

						Vibration Resistance

Product Overview

The LRS-100N2 series is MEAN WELL's next-generation 100W single-output enclosed industrial power supply. Compared to its predecessor, the N2 version delivers significant improvements in efficiency, peak power handling, and long-term reliability—making it an ideal choice for space-constrained industrial applications with demanding thermal requirements.

The LRS-100N2 accepts 85~264VAC universal AC input, covering all major global voltage standards, and also supports 120~373VDC input for DC-powered installations. The series is available in four output voltages—12V, 24V, 36V, and 48V—addressing the most common voltage requirements across industrial automation.

With a profile of just 30mm (1U height) and overall dimensions of 129×97×30mm, the LRS-100N2 fits easily into compact control cabinets and equipment enclosures. The perforated metal case design enables convection-cooled, fanless operation across an ambient temperature range of -30°C to +70°C, making it well suited for outdoor installations and harsh industrial environments where fan reliability is a concern.

The defining advantage of the LRS-100N2 is its 200% peak power output capability. When starting motors, solenoids, relays, or other inductive/capacitive loads, the unit can deliver double its rated wattage momentarily, preventing nuisance system resets caused by inrush current. This feature is especially valuable in CNC machining, packaging machinery, conveyor systems, and any application involving frequent start/stop cycles.

On the compliance side, the LRS-100N2 holds TUV BS EN/EN62368-1, UL62368-1, BS EN/EN61558-1/-2-16, GB4943.1 (CQC), and BSMI CNS15598-1 certifications, and is rated for operation at altitudes up to 4,000 meters. EMC performance meets EN55032 Class B radiated emissions and the EN61000-4 series immunity standards, making it suitable for deployment in heavy-industrial electromagnetic environments.

Technical Specifications

Parameter	LRS-100N2-12	LRS-100N2-24	LRS-100N2-36	LRS-100N2-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	8.5A	4.2A	2.8A	2.1A
Rated Power	102W	100.8W	100.8W	100.8W
Ripple & Noise (max)	120mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage Adjustment Range	10.2~13.8V	21.6~28.8V	32.4~39.6V	43.2~52.8V
Voltage Accuracy	±1.0%	±1.0%	±1.0%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency (Typ.)	88%	90%	90%	90.5%

Input Specifications (All Models)

Input Voltage Range	85~264VAC / 120~373VDC (withstands 300VAC surge for 5 seconds)
Frequency Range	47~63Hz
AC Current (Typ.)	2.1A / 115VAC \| 1.2A / 230VAC
Inrush Current (Typ.)	55A / 230VAC (cold start)
Leakage Current	< 0.75mA / 240VAC

Protection Features & Environmental Ratings

Overload Protection	>105% rated power for >5 sec → output shutdown, auto-recovery; >200% → hiccup mode, auto-recovery
Overvoltage Protection	12V: 13.8~16.2V / 24V: 28.8~33.6V / 36V: 41.4~48.6V / 48V: 55.2~64.8V (shutdown output, auto-recovery)
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Operating Temperature	-30~+70°C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85°C, 10~95% RH
Vibration Resistance	10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes
Overvoltage Category	OVC III (IEC/BS EN/EN61558-1/-2-16, 4000m); OVC II (UL62368-1, 5000m)
MTBF	≥ 2,802.6K hrs (Telcordia SR-332); ≥ 536.6K hrs (MIL-HDBK-217F, 25°C)
Dimensions	129 × 97 × 30 mm (L×W×H)
Net Weight / Packaging	0.35 kg / 40 pcs per carton / 15 kg / 0.92 CUFT

Safety Standards & Certifications

Safety Standards	CB: IEC62368-1, IEC61558-1, IEC61558-2-16, IEC60335-1 TUV: BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN/EN60335-1 UL: UL62368-1 \| CQC: GB4943.1 \| BSMI: CNS15598-1 EAC: TP TC 004 \| BIS: IS 13252(Part1):2010 (except 48V) RCM: AS/NZS 61558.1/2.16, AS/NZS62368.1
Withstand Voltage	I/P-O/P: 4KVAC \| I/P-FG: 2KVAC \| O/P-FG: 1.25KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100MΩ / 500VDC / 25°C / 70% RH
EMC Emissions	BS EN/EN55032 (CISPR32) Class B, EN55014, EN61000-3-2, EN61000-3-3, BSMI CNS15936, EAC TP TC 020
EMC Immunity	EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2); EN55035; heavy-industry level; EAC TP TC 020

Key Features

200% Peak Power
Delivers double rated wattage instantly to start motors, solenoids, and capacitive loads without voltage sag

-30~70°C Wide Temperature
Reliable operation from freezing cold to extreme heat—ideal for outdoor and uncontrolled environments

30mm Ultra-Slim 1U Design
129×97×30mm compact footprint saves valuable space in control cabinets and DIN-rail enclosures

Fanless Convection Cooling
Perforated metal case dissipates heat naturally—zero noise, zero fan maintenance, longer service life

300VAC Surge Immunity
Withstands input surges up to 300VAC for 5 seconds without damage—critical for unstable grid conditions

Global Certifications
CE / UL / TUV / CQC / BSMI / EAC / BIS / RCM—one model for worldwide deployment

Universal AC Input
85~264VAC covers all mains voltages worldwide; also accepts 120~373VDC for battery-backed systems

<0.5W No-Load Consumption
Meets international energy-efficiency standards; minimizes standby power costs in always-on systems

Rated to 4,000m Altitude
Certified for high-altitude operation—suitable for mining, telecommunications towers, and mountain installations

Comprehensive Protection
Short-circuit, overload, and overvoltage protection with automatic recovery—minimizes downtime

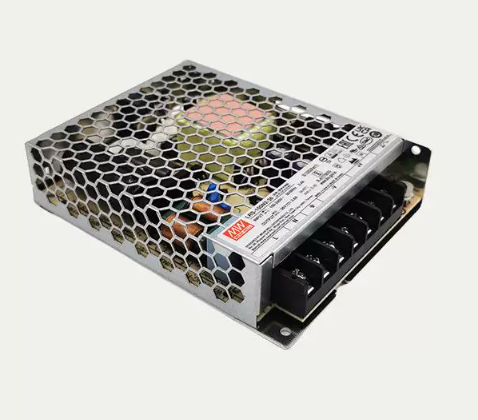

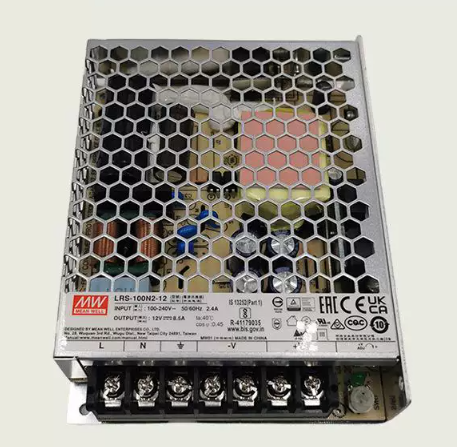

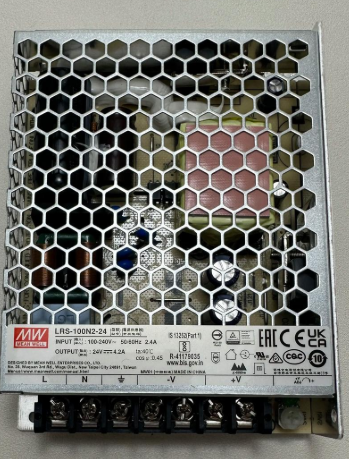

Product Images

Frequently Asked Questions

How does the LRS-100N2 differ from the previous LRS-100?

The N2 version improves on efficiency (up to 90.5% vs ~88%), peak power capability (200% vs 150%), and input surge immunity (300VAC/5s vs 300VAC/instant). It also adds OVC III overvoltage category certification, making it better suited for high-altitude installations and unstable grid conditions.

How long can the 200% peak power be sustained?

The peak power pulse width t ≤ 5 seconds, with a duty cycle ≤ 35% (at 200~264VAC input). The average output power must not exceed the 100W rated power. Refer to the peak power formula in the user manual for detailed calculations.

Is this power supply suitable for outdoor use?

The LRS-100N2 operates reliably from -30°C to +70°C, withstands 5G vibration, and is certified to 4,000m altitude. However, it does not carry an IP rating for water ingress—it must be installed inside a weatherproof enclosure when used outdoors.

Is the 48V model BIS-certified for India?

The 48V model is not currently covered under the BIS (IS 13252) certification. The 12V, 24V, and 36V models are BIS-certified and should be selected for shipments to India.

Which output voltage should I choose?

12V — low-voltage control circuits, LED strips, small actuators. 24V — the most common industrial standard for sensors, PLC I/O, and mid-range motors. 36V — specialized industrial equipment and communication systems. 48V — Power-over-Ethernet (PoE), telecom equipment, and higher-power LED arrays. Not sure? Contact our engineers for application-specific advice.
