30mm Ultra-Slim 1U Profile | 24V DC Output | 8.8A Rated Current | 200% Peak Power | 89.5% Efficiency | Switch-Selected 115/230VAC Input

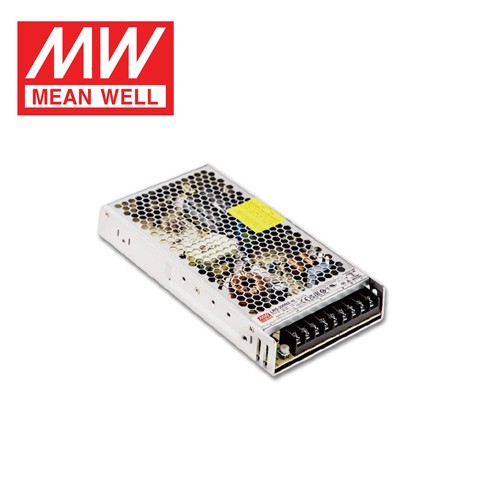

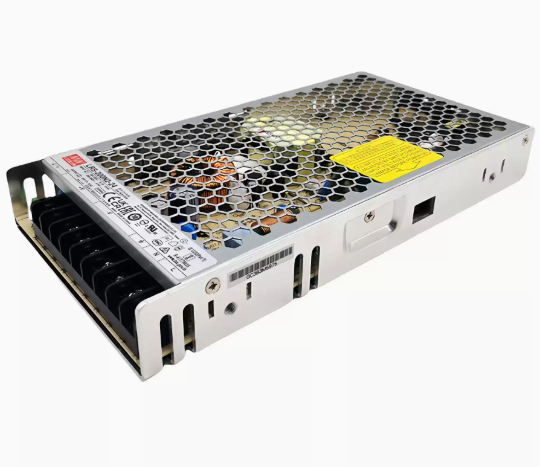

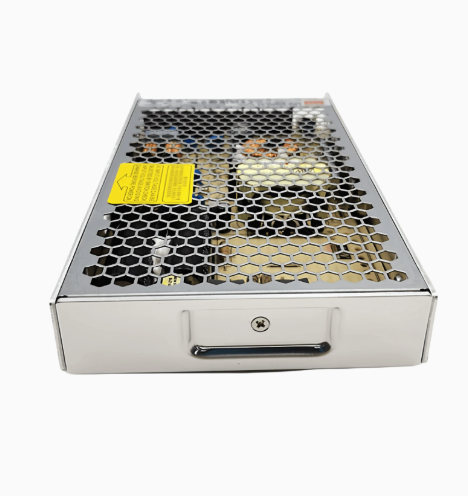

The LRS-200N2-24 is the 24V output model in MEAN WELL's LRS-200N2 series of 200W single-output enclosed industrial power supplies. Delivering 8.8A at 24V DC with 211.2W rated power, this model is the workhorse of the series—24V is the dominant voltage in industrial automation, process control, and machinery applications worldwide.
The LRS-200N2 series uses a switch-selected 115/230VAC input design (90~132VAC or 180~264VAC via front-panel switch), allowing optimized efficiency at each input range. It also accepts 240~370VDC input when the switch is set to 230VAC position.
The LRS-200N2-24 delivers 200% peak power capability—up to 422.4W for up to 5 seconds (duty ≤ 35%). This is critical for 24V industrial systems where motor startups, solenoid banks, and relay clusters create substantial momentary current demands that would trip lesser power supplies.
At 89.5% efficiency with only 150mVp-p ripple, the LRS-200N2-24 provides clean, stable power for PLC controllers, industrial sensors, pneumatic solenoid valves, stepper and servo motor drivers, and 24V LED lighting systems. The 215×115×30mm fanless housing operates from -25°C to +70°C.
For 100W 24V applications, the LRS-100N2-24 (100.8W/24V/4.2A) offers the same 24V output in a smaller footprint. For other voltages in the 200W series, see the LRS-200N2-12 (12V/17A), LRS-200N2-36 (36V/5.9A), or LRS-200N2-48 (48V/4.4A).
| Model | LRS-200N2-24 |
| DC Output Voltage | 24V |
| Rated Current | 8.8A (0 ~ 8.8A) |
| Rated Power | 211.2W |
| Peak Power (200%) | 422.4W (t ≤ 5s, duty ≤ 35%) |
| Ripple & Noise (max) | 150mVp-p |
| Voltage Adjustment Range | 21.6 ~ 28.8V |
| Voltage Accuracy | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Efficiency (Typ.) | 89.5% |
| Overvoltage Protection | 28.8 ~ 33.6V (shutdown output, auto-recovery) |
| Input Voltage Range | 90~132VAC / 180~264VAC (switch-selected) / 240~370VDC (switch at 230VAC) |
| Frequency Range | 47~63Hz |
| AC Current (Typ.) | 4.1A / 115VAC | 2.4A / 230VAC |
| Inrush Current (Typ.) | 60A / 115VAC | 60A / 230VAC (cold start) |
| Leakage Current | < 2mA / 240VAC |
| Start-up / Rise Time | 1300ms / 50ms (230VAC, full load) |
| Hold-up Time (Typ.) | 16ms / 230VAC | 12ms / 115VAC (full load) |
| Overload Protection | >105% rated power for >5 sec → output shutdown, restart recovery; >200% → hiccup mode, auto-recovery |
| Short Circuit Protection | Hiccup mode, auto-recovery after fault removal |
| Over Temperature Protection | Shutdown output, restart recovery |
| Operating Temperature | -25~+70°C (refer to derating curve) |
| Operating Humidity | 20~90% RH, non-condensing |
| Storage Temp / Humidity | -40~+85°C, 10~95% RH |
| Temperature Coefficient | ±0.03%/°C (0~50°C) |
| Vibration Resistance | 10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes |
| Overvoltage Category | OVC III (IEC/BS EN/EN61558-1/-2-16, EN50178, EN60664-1, EN62477-1; 2000m altitude) |
| MTBF | ≥ 2,089.1K hrs (Telcordia SR-332); ≥ 243.6K hrs (MIL-HDBK-217F, 25°C) |
| Dimensions | 215 × 115 × 30 mm (L×W×H) |
| Net Weight / Packaging | 0.66 kg / 15 pcs per carton / 10.7 kg / 0.67 CUFT |
| Safety Standards |
IEC/UL 62368-1, IEC 60950-1:2005 (except 48V model) TUV: BS EN/EN62368-1, BS EN/EN61558-1/-2-16 CQC: GB4943.1 | BSMI: CNS15598-1 EAC: TP TC 004 | BIS: IS 13252(Part1):2010 RCM: AS/NZS 61558.1/2.16, AS/NZS 62368.1 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | I/P-FG: 2KVAC | O/P-FG: 0.5KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: > 100MΩ / 500VDC / 25°C / 70% RH |
| EMC Emissions | BSMI CNS15936, EAC TP TC 020 |
| EMC Immunity | BS EN/EN55035, EAC TP TC 020 (heavy-industrial level) |
| No-Load Consumption | < 1W |
24V DC is the global standard for industrial control circuits because it's high enough to drive solenoids and relays reliably, yet low enough to be safe for personnel contact. PLCs, sensors, and industrial fieldbus systems (Profinet, EtherCAT) almost universally run on 24V. The LRS-200N2-24 with 8.8A output covers the majority of mid-size industrial applications.
Yes. With 200% peak power (422.4W for up to 5 seconds), the supply can handle the combined inrush of multiple 24V loads starting simultaneously. For example, a 200W continuous load with brief 400W inrush peaks during motor starts is within spec. For lower-power 24V applications, the LRS-100N2-24 (100.8W) may suffice.
The LRS-200N2-24 delivers 211.2W/8.8A (double the 100.8W/4.2A of LRS-100N2-24). The 200N2 uses switch-selected input (not universal), is physically larger (215×115mm vs 129×97mm), and has higher inrush current (60A vs 55A). Choose 200N2 for high-current 24V loads; choose 100N2 for compact installations with universal AC input needs.
The power supply itself is rated for -25°C to +70°C operation, making it suitable for indoor or enclosed outdoor installations. However, it is not IP-rated for direct water exposure. For outdoor LED lighting applications, ensure the power supply is housed in a weatherproof enclosure. For 12V outdoor LED applications, consider the LRS-200N2-12.
