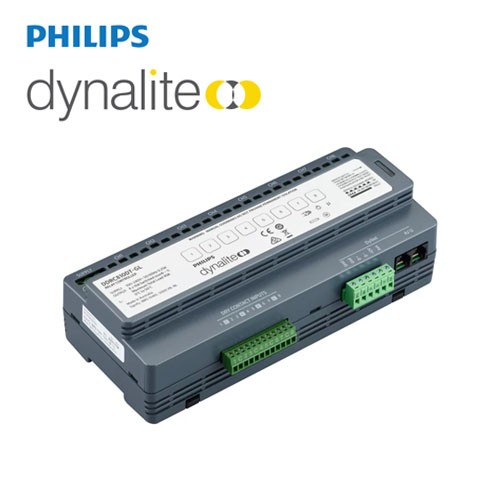

PHILIPS Dynalite Relay Controllers DDRC810DT-GL 913703035209

DDRC810DT-GL

Designed to operate any type of switched load

• Voltage free changeover SPDT output relays – Perfect for controlling bi-directional motors.

• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to

the controlled circuit.

• Inbuilt diagnostic functionality – Features circuit run time tracking on each channel.

• Standalone or networked operation – Can operate as a discrete standalone unit, or as part of an integrated control system when

connected to the DyNet network.

• Dry contact inputs - The unit receives instructions from voltage-free button presses.

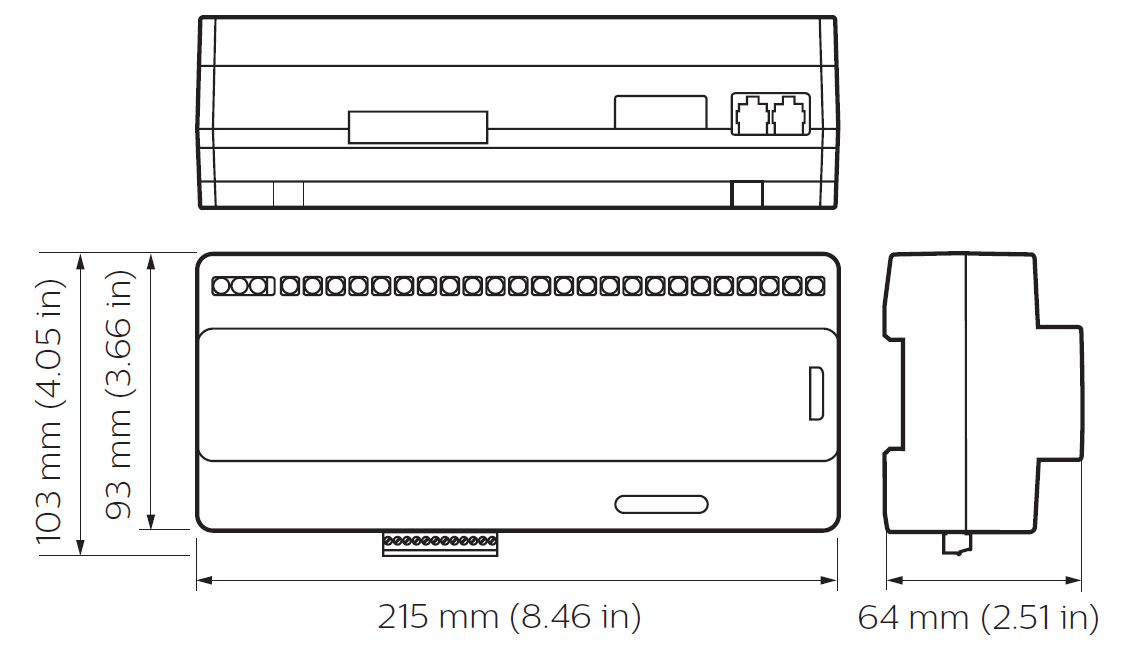

Dimension

Ordering Code

913703334009  DDRC-GRMS-E

913703244609  DDRC420FR V2

913703035209  DDRC810DT-GL

913703243009  DDRC1220FR-GL-V3
