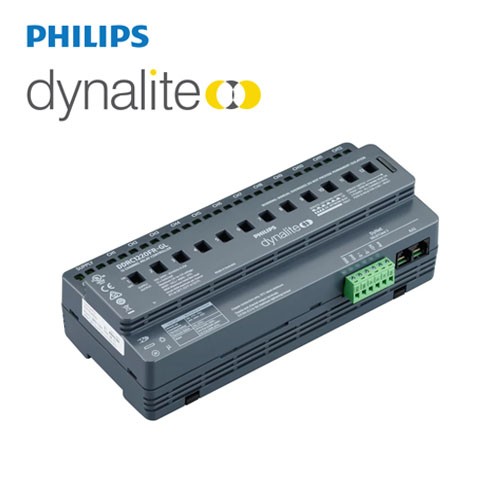

PHILIPS Dynalite Relay Controllers DDRC1220FR-GL-V3 913703243009

DDRC1220FR-GL

Robust control of switched loads

• Feed-through power circuit design – Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being

separately controllable via the DyNet network.

• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to

the controlled circuit.

• Inbuilt diagnostic functionality – Features circuit run time tracking on each channel and Device Online/Offline status indication.

• Multiple wiring schemes supported – Controls single phase and neutral or three phase and neutral (star) wiring configurations.

• Hardware override – Service override switch accessible from front panel.

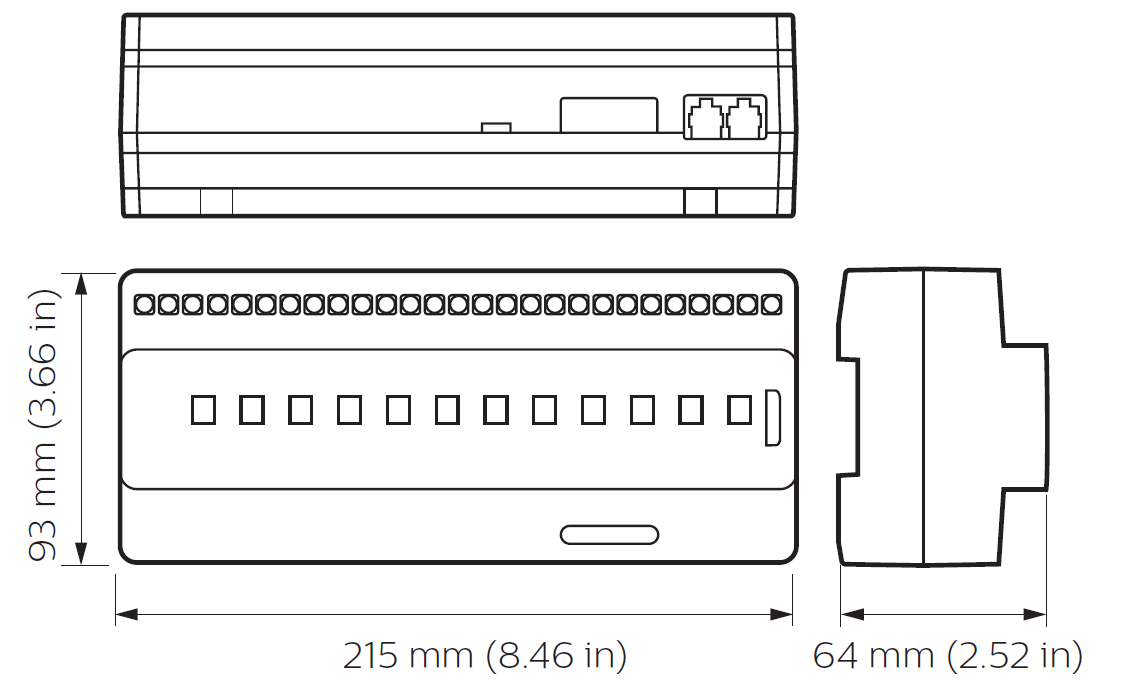

Dimension

Ordering Code

913703334009  DDRC-GRMS-E

913703244609  DDRC420FR V2

913703035209  DDRC810DT-GL

913703243009  DDRC1220FR-GL-V3
