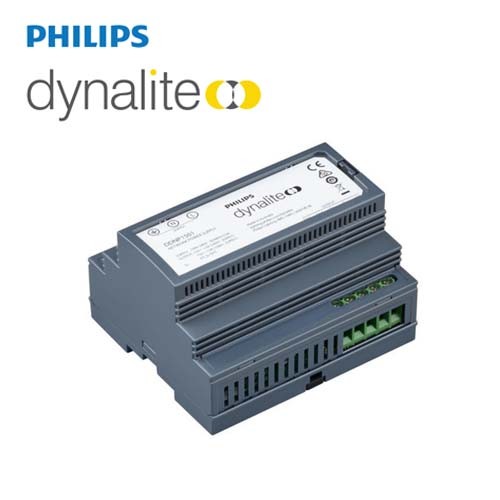

PHILIPS Dynalite Network Devices DDNP1501 913703090309

DDNP1501

Supplements DyNet network DC supply

• No manual selection required – The switch-mode design allows the device to be used with a range of input voltages.

• Used when high-consumption devices are employed – The DyNet network is self-powered via built-in DC supplies integrated

within all mains-powered devices. Use of high-consumption devices, such as edge-lit touchscreens, can necessitate a requirement

for additional power.

• Flexible mounting solution – A DIN-rail mountable device, with a circuit breaker profile designed to be installed into all types of

distribution board enclosures, including those with cover apertures specifically designed for circuit breakers.

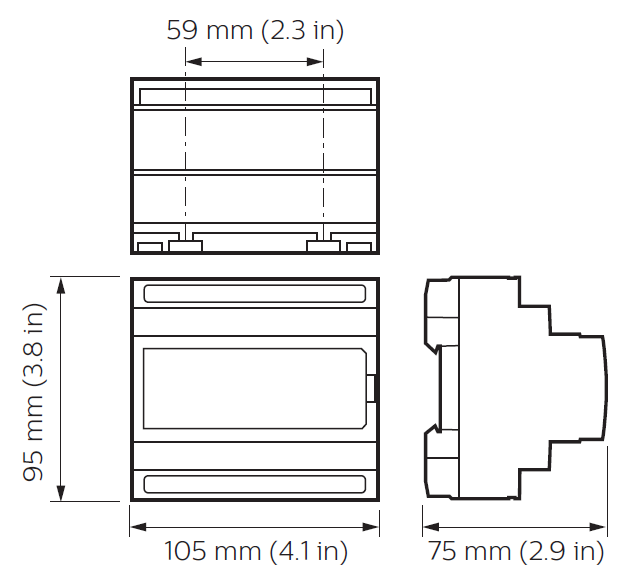

Dimension

Ordering Code

913703090309  DDNP1501

913703097809  DDPB22RJ12

913703090109  DTK622-RS232

913703090209  DTK622-USB-J

913700359103  IRT9090/01

913700392403  IRT9010/00

CN0911630071 SystemManager

SystemBuilder

Dynamic Touch

Envision Touch

Envision Web
