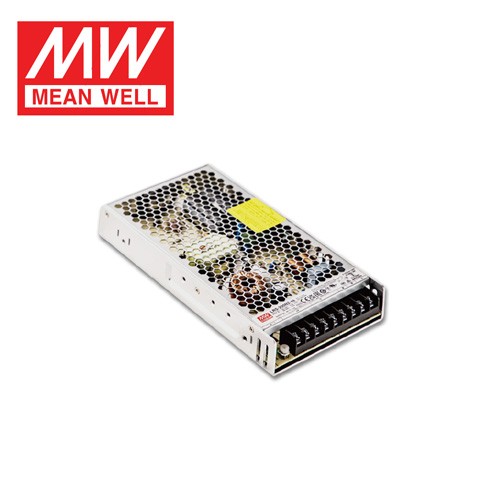

MEAN WELL Enclosed Power Supply LRS-100N2-48 211.2W 48V

Product Item : LRS-200N2-48
Category：Enclosed Type
Wattage: 211.2W
Input Voltage: 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Output Current: 0 ~ 4.4A
Output Voltage: 48V
Product description：LRS-200N2 series is a 200W single-output enclosed type power supply with 30mm of low profile design.
INQUIRY EMAIL

LRS-200N2-48 — 200W 48V 4.4A Single-Output Industrial Power Supply

✓ In Stock 3-Year Warranty 200% Peak Power 48V Model 90% Efficiency

				Key Specifications — LRS-200N2-48

						48V

						DC Output Voltage

						4.4A

						Rated Current

						211.2W

						Rated Power

						200%

						Peak Power (422.4W)

						90%

						Efficiency (Typ.)

						200mV

						Ripple & Noise

Product Overview

The LRS-200N2-48 is the 48V output model in MEAN WELL's LRS-200N2 series of 200W single-output enclosed industrial power supplies. Delivering 4.4A at 48V DC with 211.2W rated power, this model achieves the highest efficiency in the series at 90%—making it the optimal choice for telecom, PoE (Power over Ethernet), and datacom applications where 48V is the standard distribution voltage.

The LRS-200N2 series uses a switch-selected 115/230VAC input design (90~132VAC or 180~264VAC via front-panel switch). It also accepts 240~370VDC input when the switch is set to 230VAC position—useful for battery-backed DC power systems.

The 200% peak power capability delivers up to 422.4W for up to 5 seconds (duty ≤ 35%), handling PoE switch boot currents and telecom equipment power surges. The 90% efficiency minimizes heat dissipation in densely packed telecom racks.

The 48V output is the backbone voltage for telecom central office power (-48V systems), PoE injectors and switches (IEEE 802.3af/at/bt), datacom rack power, battery charging systems, and industrial process controllers. The 215×115×30mm fanless housing operates from -25°C to +70°C.

For 100W 48V applications, the LRS-100N2-48 (100.8W/48V/2.1A) offers the same 48V output at half the power. For other voltages in the 200W series, see the LRS-200N2-12 (12V/17A), LRS-200N2-24 (24V/8.8A), or LRS-200N2-36 (36V/5.9A).

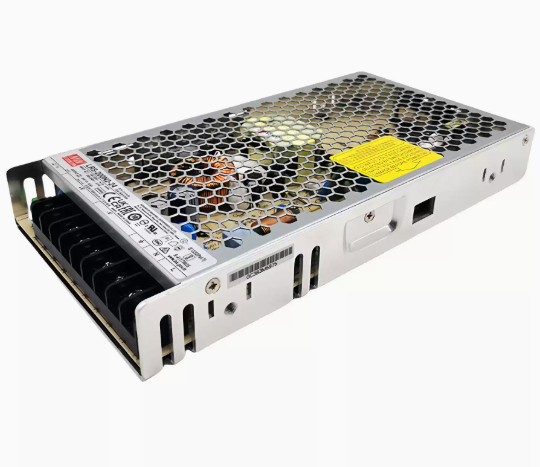

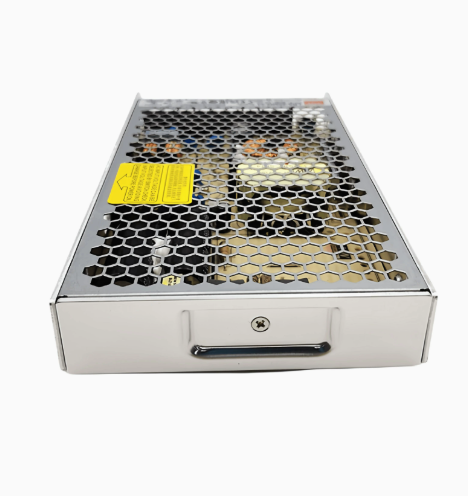

Product Images

Technical Specifications

Model	LRS-200N2-48
DC Output Voltage	48V
Rated Current	4.4A (0 ~ 4.4A)
Rated Power	211.2W
Peak Power (200%)	422.4W (t ≤ 5s, duty ≤ 35%)
Ripple & Noise (max)	200mVp-p
Voltage Adjustment Range	43.2 ~ 52.8V
Voltage Accuracy	±1.0%
Line Regulation	±0.5%
Load Regulation	±0.5%
Efficiency (Typ.)	90% (highest in series)
Overvoltage Protection	55.2 ~ 64.8V (shutdown output, auto-recovery)

Input Specifications (All Models)

Input Voltage Range	90~132VAC / 180~264VAC (switch-selected) / 240~370VDC (switch at 230VAC)
Frequency Range	47~63Hz
AC Current (Typ.)	4.1A / 115VAC \| 2.4A / 230VAC
Inrush Current (Typ.)	60A / 115VAC \| 60A / 230VAC (cold start)
Leakage Current	< 2mA / 240VAC
Start-up / Rise Time	1300ms / 50ms (230VAC, full load)
Hold-up Time (Typ.)	16ms / 230VAC \| 12ms / 115VAC (full load)

Protection Features & Environmental Ratings

Overload Protection	>105% rated power for >5 sec → output shutdown, restart recovery; >200% → hiccup mode, auto-recovery
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Over Temperature Protection	Shutdown output, restart recovery
Operating Temperature	-25~+70°C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85°C, 10~95% RH
Temperature Coefficient	±0.03%/°C (0~50°C)
Vibration Resistance	10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes
Overvoltage Category	OVC III (IEC/BS EN/EN61558-1/-2-16, EN50178, EN60664-1, EN62477-1; 2000m altitude)
MTBF	≥ 2,089.1K hrs (Telcordia SR-332); ≥ 243.6K hrs (MIL-HDBK-217F, 25°C)
Dimensions	215 × 115 × 30 mm (L×W×H)
Net Weight / Packaging	0.66 kg / 15 pcs per carton / 10.7 kg / 0.67 CUFT

Safety Standards & Certifications

Safety Standards	IEC/UL 62368-1 TUV: BS EN/EN62368-1, BS EN/EN61558-1/-2-16 CQC: GB4943.1 \| BSMI: CNS15598-1 EAC: TP TC 004 \| BIS: IS 13252(Part1):2010 RCM: AS/NZS 61558.1/2.16, AS/NZS 62368.1 Note: IEC 60950-1:2005 does not apply to the 48V model
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100MΩ / 500VDC / 25°C / 70% RH
EMC Emissions	BSMI CNS15936, EAC TP TC 020
EMC Immunity	BS EN/EN55035, EAC TP TC 020 (heavy-industrial level)
No-Load Consumption	< 1W

Key Features

90% Highest Efficiency
Best efficiency in the LRS-200N2 series—minimizes heat in dense telecom and datacom racks

48V / 4.4A Telecom Standard
Standard voltage for telecom central office, PoE, and datacom applications

200% Peak Power (422.4W)
Handles PoE switch boot surges and telecom equipment power transients

30mm Ultra-Slim 1U Design
215×115×30mm compact footprint fits standard 19-inch rack systems

-25~70°C Wide Temperature
Reliable in telecom shelters and uncontrolled environment equipment rooms

Fanless Convection Cooling
Silent operation—critical for office and telecom closet installations

DC Input Capability
Accepts 240~370VDC input (switch at 230VAC)—battery backup compatible

5G Vibration Resistance
Suitable for industrial and mobile telecom installations

<1W No-Load Consumption
Low standby power for energy-efficient 24/7 telecom operations

Comprehensive Protection
Short-circuit, overload, overvoltage, and over-temperature with auto-recovery

Frequently Asked Questions

Can the LRS-200N2-48 be used for PoE (Power over Ethernet) applications?

Yes. The 48V output is compatible with PoE midspan/endpoint PSE (Power Sourcing Equipment) that requires 48-54V DC input. With 4.4A output, it can power multiple PoE ports. The 200% peak power handles PoE port power-on surges. Always verify your specific PoE switch or injector input requirements.

Why does the 48V model have the highest efficiency (90%)?

Higher output voltage generally results in lower conversion losses—the same wattage at higher voltage means lower current, which reduces I²R losses in the switching circuitry. The 90% efficiency on the 48V model vs 87.5% on the 12V model translates to measurably less heat in continuous-duty telecom applications.

Is the LRS-200N2-48 compatible with -48V telecom systems?

The LRS-200N2-48 provides positive +48V output. Traditional telecom central office power uses -48V (negative ground). You will need to check if your equipment accepts positive 48V or requires negative polarity. Some modern telecom equipment is polarity-insensitive. For lower-power 48V needs, the LRS-100N2-48 (100.8W) is an alternative.

Can I use the DC input feature for battery backup?

Yes. When the input switch is set to 230VAC, the LRS-200N2-48 accepts 240~370VDC input. This is useful for battery-backed systems where a 240-370VDC bus is available (common in telecom -48V battery plants with DC-DC converters). Note that the switch must be correctly positioned—incorrect setting may cause malfunction or damage.
