MEAN WELL Enclosed Power Supply LRS-100N2-36 212.4W 36V

Product Item : LRS-200N2-36
Category：Enclosed Type
Wattage: 212.4W
Input Voltage: 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Output Current: 0 ~ 5.9A
Output Voltage: 36V
Product description：LRS-200N2 series is a 200W single-output enclosed type power supply with 30mm of low profile design.
INQUIRY EMAIL

LRS-200N2-36 — 200W 36V 5.9A Single-Output Industrial Power Supply

✓ In Stock 3-Year Warranty 200% Peak Power 36V Model IEC/UL 62368-1

				Key Specifications — LRS-200N2-36

						36V

						DC Output Voltage

						5.9A

						Rated Current

						212.4W

						Rated Power

						200%

						Peak Power (424.8W)

						89.5%

						Efficiency (Typ.)

						200mV

						Ripple & Noise

Product Overview

The LRS-200N2-36 is the 36V output model in MEAN WELL's LRS-200N2 series of 200W single-output enclosed industrial power supplies. Delivering 5.9A at 36V DC with 212.4W rated power, this model serves specialized industrial applications requiring a higher DC voltage rail—telecom equipment, audio amplifiers, and certain types of motor drives that operate on 36V.

The LRS-200N2 series uses a switch-selected 115/230VAC input design (90~132VAC or 180~264VAC via front-panel switch). It also accepts 240~370VDC input when the switch is set to 230VAC position.

The 200% peak power capability delivers up to 424.8W for up to 5 seconds (duty ≤ 35%), handling inrush currents from 36V motor startups and capacitive charging without triggering protection. The 200mVp-p ripple is slightly higher than the 12V/24V models but well within acceptable range for industrial loads.

The 36V output is used in telecom DC power systems, professional audio amplifiers, AGV (Automated Guided Vehicle) charging, electroplating equipment, and specialized DC motor drives. The 215×115×30mm fanless housing operates from -25°C to +70°C.

For 100W 36V applications, the LRS-100N2-36 (100.8W/36V/2.8A) offers the same 36V output at half the power. For other voltages in the 200W series, see the LRS-200N2-12 (12V/17A), LRS-200N2-24 (24V/8.8A), or LRS-200N2-48 (48V/4.4A).

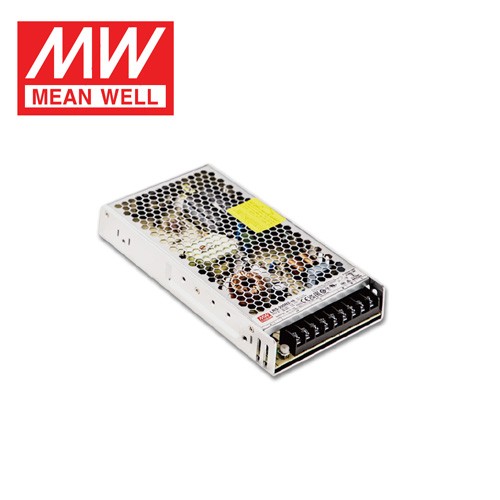

Product Images

Technical Specifications

Model	LRS-200N2-36
DC Output Voltage	36V
Rated Current	5.9A (0 ~ 5.9A)
Rated Power	212.4W
Peak Power (200%)	424.8W (t ≤ 5s, duty ≤ 35%)
Ripple & Noise (max)	200mVp-p
Voltage Adjustment Range	32.4 ~ 39.6V
Voltage Accuracy	±1.0%
Line Regulation	±0.5%
Load Regulation	±0.5%
Efficiency (Typ.)	89.5%
Overvoltage Protection	41.4 ~ 46.8V (shutdown output, auto-recovery)

Input Specifications (All Models)

Input Voltage Range	90~132VAC / 180~264VAC (switch-selected) / 240~370VDC (switch at 230VAC)
Frequency Range	47~63Hz
AC Current (Typ.)	4.1A / 115VAC \| 2.4A / 230VAC
Inrush Current (Typ.)	60A / 115VAC \| 60A / 230VAC (cold start)
Leakage Current	< 2mA / 240VAC
Start-up / Rise Time	1300ms / 50ms (230VAC, full load)
Hold-up Time (Typ.)	16ms / 230VAC \| 12ms / 115VAC (full load)

Protection Features & Environmental Ratings

Overload Protection	>105% rated power for >5 sec → output shutdown, restart recovery; >200% → hiccup mode, auto-recovery
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Over Temperature Protection	Shutdown output, restart recovery
Operating Temperature	-25~+70°C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85°C, 10~95% RH
Temperature Coefficient	±0.03%/°C (0~50°C)
Vibration Resistance	10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes
Overvoltage Category	OVC III (IEC/BS EN/EN61558-1/-2-16, EN50178, EN60664-1, EN62477-1; 2000m altitude)
MTBF	≥ 2,089.1K hrs (Telcordia SR-332); ≥ 243.6K hrs (MIL-HDBK-217F, 25°C)
Dimensions	215 × 115 × 30 mm (L×W×H)
Net Weight / Packaging	0.66 kg / 15 pcs per carton / 10.7 kg / 0.67 CUFT

Safety Standards & Certifications

Safety Standards	IEC/UL 62368-1, IEC 60950-1:2005 TUV: BS EN/EN62368-1, BS EN/EN61558-1/-2-16 CQC: GB4943.1 \| BSMI: CNS15598-1 EAC: TP TC 004 \| BIS: IS 13252(Part1):2010 RCM: AS/NZS 61558.1/2.16, AS/NZS 62368.1
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100MΩ / 500VDC / 25°C / 70% RH
EMC Emissions	BSMI CNS15936, EAC TP TC 020
EMC Immunity	BS EN/EN55035, EAC TP TC 020 (heavy-industrial level)
No-Load Consumption	< 1W

Key Features

200% Peak Power (424.8W)
Handles 36V motor startups and capacitive charging without voltage sag

36V / 5.9A Specialized Output
Serves telecom, professional audio, AGV charging, and electroplating applications

89.5% High Efficiency
Minimizes heat and energy costs in continuous-duty 36V systems

30mm Ultra-Slim 1U Design
215×115×30mm compact footprint for standard control cabinet integration

-25~70°C Wide Temperature
Reliable in harsh environments from cold storage to factory floors

Fanless Convection Cooling
Perforated mesh housing—silent operation, no fan maintenance

Switch-Selected 115/230VAC
Front-panel switch optimizes for regional mains voltage

5G Vibration Resistance
Suitable for mobile equipment and industrial machinery

<1W No-Load Consumption
Meets international energy-efficiency requirements

Comprehensive Protection
Short-circuit, overload, overvoltage, and over-temperature with auto-recovery

Frequently Asked Questions

What applications use 36V DC power supplies?

36V is commonly used in telecom DC power distribution, professional audio amplifier systems, AGV (Automated Guided Vehicle) battery charging, electroplating and anodizing equipment, and certain DC motor drive systems. While less common than 24V, 36V is the preferred voltage for specific specialized industries.

Why does the 36V model have higher ripple (200mV) than the 24V model (150mV)?

Higher output voltage generally produces proportionally higher ripple. The 200mVp-p ripple on the 36V model is still less than 0.6% of output voltage—well within acceptable range for industrial loads. For ultra-clean power requirements, consider adding external filtering. The LRS-200N2-24 offers lower 150mV ripple if your application is sensitive.

Can I use the LRS-200N2-36 for telecom applications?

The 36V output is compatible with some telecom DC power systems. However, standard telecom central office power is typically -48V. For -48V telecom applications, the LRS-200N2-48 (48V/4.4A) is more appropriate. Always verify compatibility with your specific telecom equipment requirements.

What's the difference between LRS-200N2-36 and LRS-100N2-36?

The LRS-200N2-36 delivers 212.4W/5.9A (double the 100.8W/2.8A of LRS-100N2-36). The 200N2 uses switch-selected input, is physically larger, and has higher inrush current. Choose 200N2 for high-current 36V loads; choose 100N2 for compact installations with universal AC input.
