MEAN WELL Enclosed Power Supply LRS-200N2 Series Single-Output High Peak

Product Item : LRS-200N2 series
Category：Enclosed Type
Wattage: 200W
Input Voltage: 90 ~ 132VAC/180 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC)
Output Current: 0 ~ 17A
Output Voltage: 12 ~ 48V
Product description：LRS-200N2 series is a 200W single-output enclosed type power supply with 30mm of low profile design.
INQUIRY EMAIL

LRS-200N2 Series - 200W Single-Output High Peak Power Supply

215x115x30mm Slim Profile | 200% Peak Power | -25~70C Wide Temp | Overtemp Protection | 3-Year Warranty

✓ In Stock 3-Year Warranty 200% Peak Power Overtemp Protection RoHS Compliant

				Key Performance at a Glance

						200W

						Rated Power

						200%

						Peak Power (400W)

						90%

						Max Efficiency

						215mm

						Length (Slim 30mm)

						-25~70C

						Operating Temp Range

						5G

						Vibration Resistance

Product Overview

The LRS-200N2 series is MEAN WELL's 200W single-output enclosed industrial power supply with 200% peak power capability. Featuring a 30mm low-profile design and switchable 115/230VAC input, it delivers high power density in a compact 215x115x30mm form factor - ideal for motor-driven loads and industrial automation where momentary high current demand is required.

The LRS-200N2 uses a switchable 90~132VAC / 180~264VAC input (selected via built-in switch), and also supports 240~370VDC input. Available in four output voltages - 12V, 24V, 36V, and 48V - it delivers up to 17A at 12V and 4.4A at 48V, covering a wide range of industrial power needs.

Measuring 215x115x30mm, the LRS-200N2 packs 200W into a remarkably slim chassis. The perforated metal case enables convection-cooled, fanless operation across an ambient range of -25C to +70C. A key upgrade is the addition of over-temperature protection, which shuts down the output if internal temperatures exceed safe limits - preventing thermal damage and extending service life.

The defining advantage is the 200% peak power output (up to 400W). When starting motors, solenoids, relays, or other inductive/capacitive loads, the unit delivers double its rated wattage momentarily - making it especially valuable in CNC machining, packaging machinery, conveyor systems, and any application with frequent start/stop cycles requiring high inrush current handling.

The LRS-200N2 holds IEC/UL62368-1, BS EN/EN61558-1/-2-16, GB4943.1 (CQC), and BSMI CNS15598-1 certifications, with design reference to BS/EN/EN62368-1, AS/NZS 61558.1/2.16, and AS/NZS 62368.1. Note: This model is not compliant with EN61000-3-2 harmonic current requirements for certain EU applications.

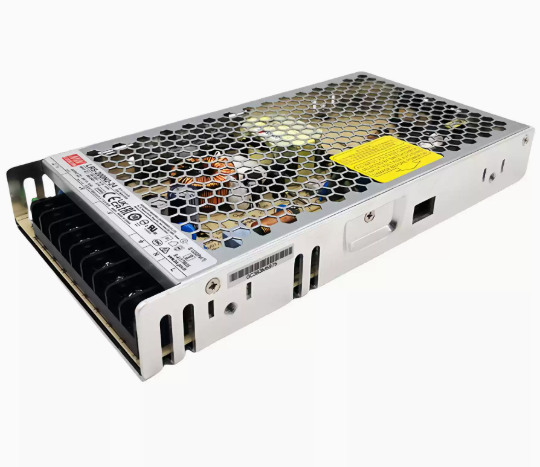

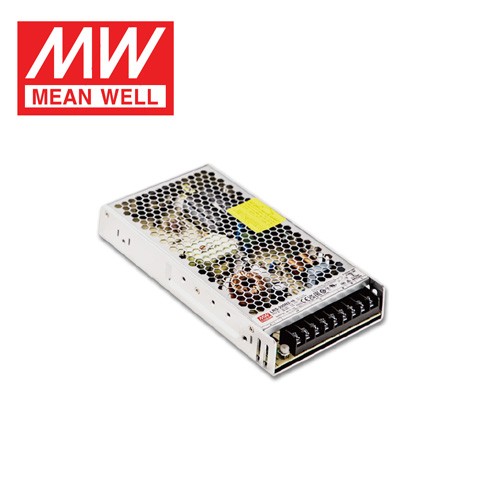

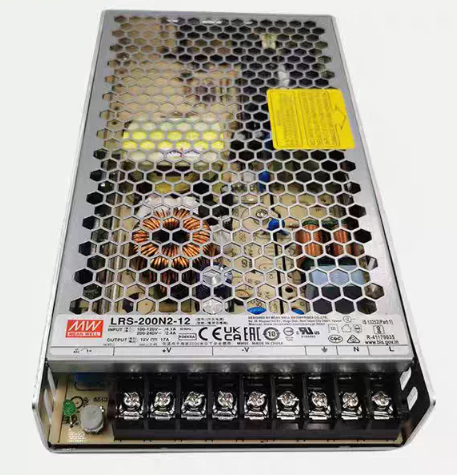

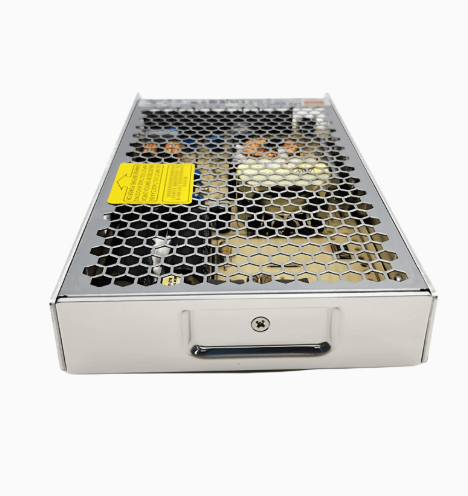

Product Images

Technical Specifications

Parameter	LRS-200N2-12	LRS-200N2-24	LRS-200N2-36	LRS-200N2-48
DC Output Voltage	12V	24V	36V	48V
Rated Current	17A	8.8A	5.9A	4.4A
Rated Power	204W	211.2W	212.4W	211.2W
Ripple & Noise (max)	150mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage Adjustment Range	10.2~13.8V	21.6~28.8V	32.4~39.6V	43.2~52.8V
Voltage Accuracy	+/-1.5%	+/-1.0%	+/-1.0%	+/-1.0%
Line Regulation	+/-0.5%	+/-0.5%	+/-0.5%	+/-0.5%
Load Regulation	+/-1.0%	+/-0.5%	+/-0.5%	+/-0.5%
Efficiency (Typ.)	87.5%	89.5%	89.5%	90%

Input Specifications (All Models)

Input Voltage Range	90~132VAC / 180~264VAC (switch-selectable); 240~370VDC (switch at 230VAC)
Input Surge Immunity	Withstands 300VAC surge for 5 seconds
Frequency Range	47~63Hz
AC Current (Typ.)	4.1A / 115VAC \| 2.4A / 230VAC
Inrush Current (Typ.)	60A / 115VAC \| 60A / 230VAC (cold start)
Leakage Current	< 2mA / 240VAC

Protection Features & Environmental Ratings

Overload Protection	>105% rated power for >5 sec -> output shutdown, auto-recovery; >200% -> hiccup mode, auto-recovery
Overvoltage Protection	12V: 13.8~16.2V / 24V: 28.8~33.6V / 36V: 41.4~46.8V / 48V: 55.2~64.8V (shutdown output, auto-recovery)
Over-temperature Protection	Shutdown output, auto-recovery after temperature drops to safe level
Short Circuit Protection	Hiccup mode, auto-recovery after fault removal
Operating Temperature	-25~+70C (refer to derating curve)
Operating Humidity	20~90% RH, non-condensing
Storage Temp / Humidity	-40~+85C, 10~95% RH
Vibration Resistance	10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes
Overvoltage Category	OVC III (EN61558, EN50178, EN60664-1, EN62477-1; up to 2,000m)
MTBF	>= 2,089.1K hrs (Telcordia SR-332); >= 243.6K hrs (MIL-HDBK-217F, 25C)
Dimensions	215 x 115 x 30 mm (LxWxH)
Net Weight / Packaging	0.66 kg / 15 pcs per carton / 10.7 kg / 0.67 CUFT

Safety Standards & Certifications

Safety Standards	IEC/UL62368-1, BS EN/EN61558-1, BS EN61558-2-16 CQC: GB4943.1 \| BSMI: CNS15598-1 \| EAC: TP TC 004 BIS: IS 13252(Part1):2010 (except 48V) Design refers to: BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1
Withstand Voltage	I/P-O/P: 3.75KVAC \| I/P-FG: 2KVAC \| O/P-FG: 0.5KVAC
Insulation Resistance	I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 25C / 70% RH
EMC Emissions	BSMI CNS15936, EAC TP TC 020 Note: Not compliant with EN61000-3-2 harmonic current limits. See FAQ for EU usage restrictions.
EMC Immunity	BS EN/EN55035, EAC TP TC 020

Key Features

200% Peak Power (400W)
Delivers up to 400W momentarily to start motors, solenoids, and capacitive loads without tripping protection

Over-temperature Protection
Built-in thermal protection automatically shuts down if safe limits are exceeded - prevents heat damage

200W High Power Density
215x115x30mm delivers 200W in a slim 1U chassis - ideal for space-constrained control cabinets

-25~70C Wide Temperature
Reliable operation from sub-freezing to high heat - suited for outdoor and industrial environments

Fanless Convection Cooling
Perforated metal case dissipates heat naturally - zero noise, zero fan maintenance, longer service life

300VAC Surge Immunity
Withstands input surges up to 300VAC for 5 seconds - critical for unstable grid conditions

Switchable AC Input
90~132VAC / 180~264VAC via built-in selector switch; also accepts 240~370VDC

<1W No-Load Consumption
Meets international energy-efficiency standards; minimizes standby power costs in always-on systems

Comprehensive Protection
Short-circuit, overload, overvoltage, and over-temperature protection with automatic recovery

5G Vibration Resistance
Tested to withstand 10~500Hz at 5G across all three axes - built for demanding environments

Frequently Asked Questions

How do I set the correct input voltage on the LRS-200N2?

The LRS-200N2 uses a built-in selector switch to choose between 115VAC (90~132VAC) and 230VAC (180~264VAC) input ranges. Always verify the switch position matches your local mains voltage before powering on. Incorrect setting may cause damage. For DC input (240~370VDC), set the switch to the 230VAC position.

Can the LRS-200N2 be used in EU countries?

The LRS-200N2 is not compliant with EN61000-3-2 harmonic current limits. It should NOT be used in end equipment meeting ALL of these conditions: (a) used within the EU, (b) connected to 220VAC+ public mains, (c) installed in equipment with average input power >75W, and (d) part of a lighting system. Professional equipment rated >1,000W and symmetrically controlled heating elements <=200W are exempt. For EU applications within these restrictions, consider the LRS-350 series instead.

Is this power supply suitable for outdoor use?

The LRS-200N2 operates reliably from -25C to +70C and withstands 5G vibration. However, it does not carry an IP rating for water ingress - it must be installed inside a weatherproof enclosure when used outdoors.

Is the 48V model BIS-certified for India?

The 48V model is not currently covered under the BIS (IS 13252) certification. The 12V, 24V, and 36V models are BIS-certified and should be selected for shipments to India.

How does the LRS-200N2 compare to the LRS-100N2?

The LRS-200N2 doubles the power to 200W with a larger 215x115mm footprint (vs. 129x97mm). Key differences: switchable AC input instead of universal, adds over-temperature protection, narrower min temp (-25C vs -30C), limited to 2,000m altitude. The LRS-100N2 is better for universal-voltage, high-altitude applications; the LRS-200N2 is the choice when you need more power with over-temp protection in a slim form factor.
