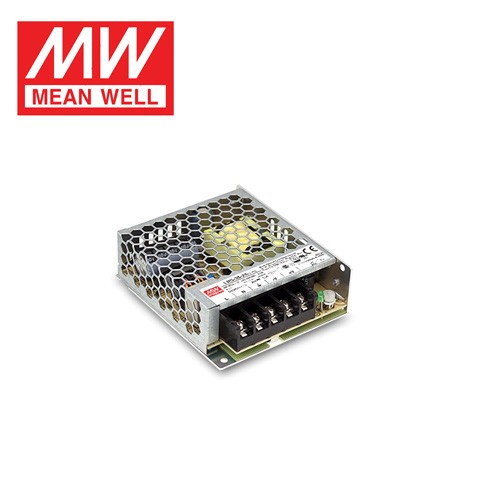

MEAN WELL Enclosed Power Supply LRS-35-5 35W 5V

Product features

- Universal AC input (85–264VAC)

- Withstands 300VAC surge input for 5 seconds

- No-load power consumption < 0.2W

- Compact size with 1U low-profile design

- Operating temperature up to +70°C

- Protection functions: Short circuit / Overload / Overvoltage

- Natural convection cooling (no fan required)

- Compliant with IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN 61558-1, -2-16 for household appliance applications

- Operable at altitudes up to 5,000 meters (Note 8)

- Withstands 5G vibration testing

- High efficiency, long service life, and high reliability

- Power-on LED indicator

- Overvoltage category III

- 100% full-load burn-in test

- 3-year warranty

Application

- Industrial automation machinery

- Industrial control systems

- Mechanical and electrical equipment

- Electronic instruments, devices, and apparatus

- Household appliances

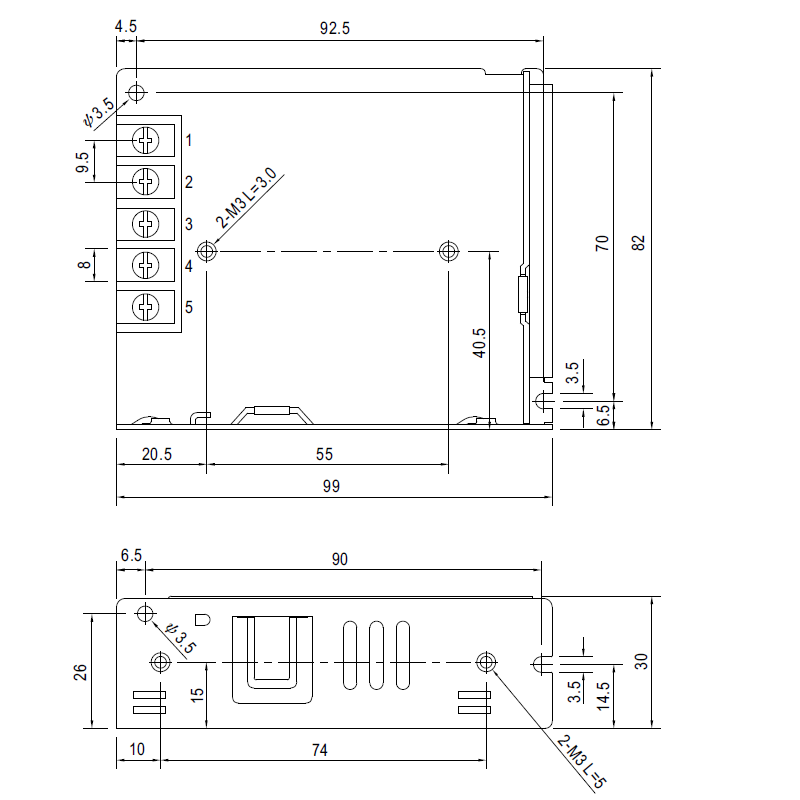

Dimension

Remark

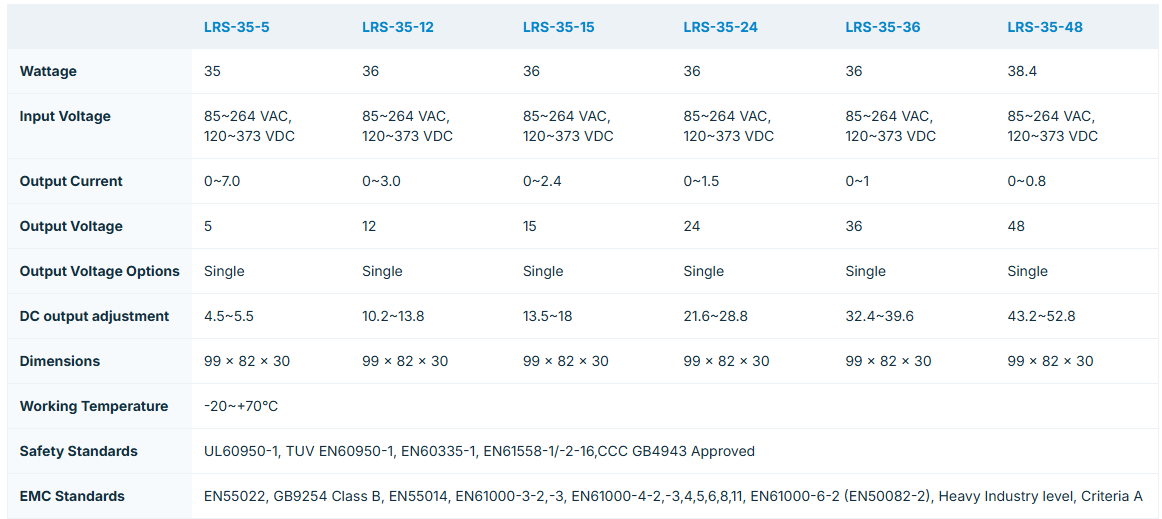

LRS-35 Series:

LRS-35-5

LRS-35-12

LRS-35-15

LRS-35-24

LRS-35-36

LRS-35-48

Any question,please feel free to contact with us
