215x115x30mm Slim Profile | 36V DC Output | 9.7A Rated Current | 200% Peak Power | Built-in Fan | 3-Year Warranty

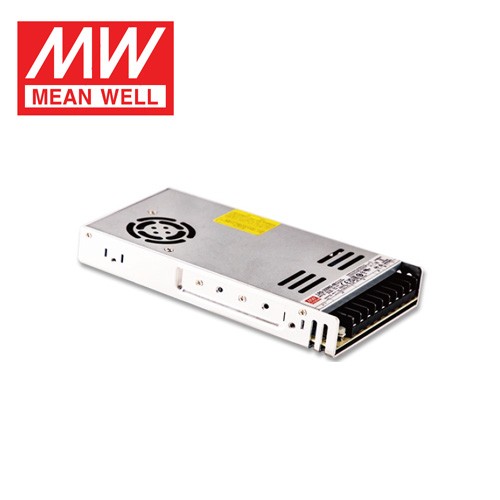

The LRS-350N2-36 is the 36V output model in MEAN WELL's LRS-350N2 series of 350W single-output enclosed industrial power supplies. Delivering 9.7A at 36V DC with 349.2W rated power, this model is designed for specialized industrial equipment, communication systems, and applications requiring a higher voltage rail than the standard 24V.
Like all LRS-350N2 models, the LRS-350N2-36 uses a switchable 90~132VAC / 180~264VAC input (selected via built-in switch) and supports 240~370VDC input. It features the series' signature 200% peak power capability - delivering up to 698W momentarily to handle motor inrush and capacitive load startup without triggering protection circuits. The 36V output is commonly used in specialized industrial machinery, LED grow lights, and communication infrastructure.
The LRS-350N2-36 offers the best balance of efficiency and power delivery in the lineup at 88.5% typical efficiency. The built-in DC fan with intelligent thermal control (activates at 50C, off at 40C) enables sustained full-load operation in demanding thermal environments.
The LRS-350N2-36 holds IEC/UL62368-1, BS EN/EN61558-1/-2-16, GB4943.1 (CQC), and BIS IS13252 certifications, is rated for altitudes up to 2,000 meters, and comes with a 3-year warranty. Note: Not compliant with EN61000-3-2 for certain EU applications.
| Model | LRS-350N2-36 |
| DC Output Voltage | 36V |
| Rated Current | 9.7A (0 ~ 9.7A) |
| Rated Power | 349.2W |
| Peak Power (200%) | 698W (t <= 5s, duty <= 35%) |
| Ripple & Noise (max) | 200mVp-p |
| Voltage Adjustment Range | 32.4 ~ 39.6V |
| Voltage Accuracy | +/-1.0% |
| Line Regulation | +/-0.5% |
| Load Regulation | +/-0.5% |
| Efficiency (Typ.) | 88.5% |
| Overvoltage Protection | 41.4 ~ 46.8V (shutdown output, auto-recovery) |
| Input Voltage Range | 90~132VAC / 180~264VAC (switch-selectable); 240~370VDC (switch at 230VAC) |
| Input Surge Immunity | Withstands 300VAC surge for 5 seconds |
| Frequency Range | 47~63Hz |
| AC Current (Typ.) | 6.8A / 115VAC | 3.8A / 230VAC |
| Inrush Current (Typ.) | 60A / 115VAC | 60A / 230VAC (cold start) |
| Leakage Current | < 2mA / 240VAC |
| Overload Protection | >105% rated power for >5 sec -> output shutdown, auto-recovery; >200% -> hiccup mode, auto-recovery |
| Short Circuit Protection | Hiccup mode, auto-recovery after fault removal |
| Over-temperature Protection | Shutdown output, auto-recovery after temperature drops to safe level |
| Fan On/Off Control | RTH3 >= 50C fan on, <= 40C fan off (intelligent thermal management) |
| Operating Temperature | -20~+70C (refer to derating curve) |
| Operating Humidity | 20~90% RH, non-condensing |
| Storage Temp / Humidity | -40~+85C, 10~95% RH |
| Vibration Resistance | 10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes |
| Overvoltage Category | OVC III (EN61558, EN50178, EN60664-1, EN62477-1; up to 2,000m) |
| MTBF | >= 1,857.9K hrs (Telcordia SR-332); >= 226.2K hrs (MIL-HDBK-217F, 25C) |
| Dimensions | 215 x 115 x 30 mm (LxWxH) |
| Net Weight / Packaging | 0.76 kg / 15 pcs per carton / 12.4 kg / 0.67 CUFT |
| Safety Standards |
IEC/UL62368-1, BS EN/EN61558-1, BS EN61558-2-16 CQC: GB4943.1 | BSMI: CNS15598-1 | EAC: TP TC 004 BIS: IS 13252(Part1):2010 / IEC60950-1:2005 (except 48V) Design refers to: BS/EN/EN62368-1, AS/NZS 61558.1/2.16, AS/NZS 62368.1 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | I/P-FG: 2KVAC | O/P-FG: 0.5KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 25C / 70% RH |
| EMC Emissions |
BSMI CNS15936, EAC TP TC 020 Note: Not compliant with EN61000-3-2 harmonic current limits for certain EU applications. |
| EMC Immunity | BS EN/EN55035, EAC TP TC 020 |
