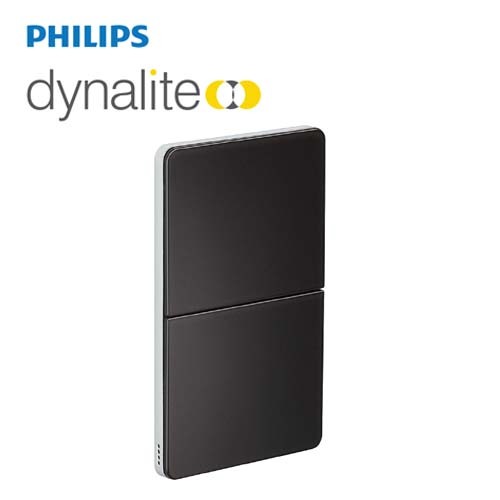

PHILIPS Dynalite Antumbra Button Control Panel PA4BPA-AA-L 913703035609

PAxBPA

Contemporary two-, four-, or six-button panel with light-wash effect

• Field effect technology* – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to

encourage interaction.

• Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and

matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-

site,allowing commissioning to commence prior to finalizing rim and button options.

• Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in

temperature sensor automatically adjusts air conditioning when integrated into the system.

• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common

icons transcends language barriers, which is particularly useful in hospitality applications.

• Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.

• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

Dimension

Ordering Code

913703072809  DACM-DyNet (DyNet communication module)

913703064309  DINGUS-DUS-DUAL-RJ12 (dual RJ12 connector - pack of 10)

913703334609  DINGUS-UI-DUAL-RJ45 (dual RJ45 connector - pack of 10)

913703035609  PA4BPA-AA-L

913703035509  PA4BPA-AA-X

913703035609  PA4BPA-AC-L

913703035509  PA4BPA-AC-X

913703035609  PA4BPA-AM-L

913703035509  PA4BPA-AM-X
