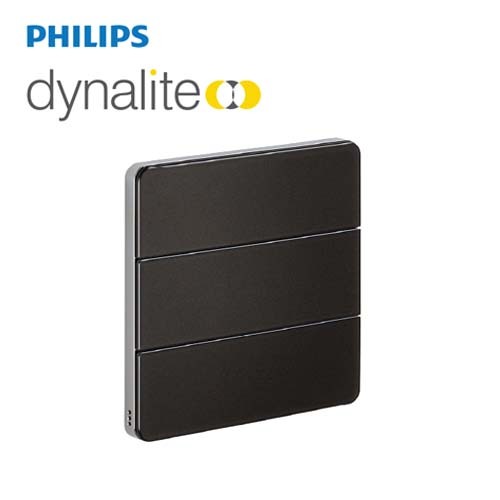

PHILIPS Dynalite Antumbra Button Control Panel PA6BPE-WA-X 913703035309

PAxBPE

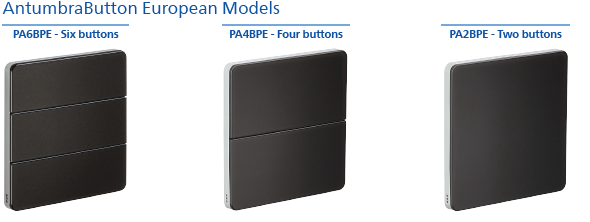

Contemporary two-, four-, or six-button panel with light-wash effect

• Field effect technology* – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to

encourage interaction.

• Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and

matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-

site,allowing commissioning to commence prior to finalizing rim and button options.

• Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in

temperature sensor automatically adjusts air conditioning when integrated into the system.

• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common

icons transcends language barriers, which is particularly useful in hospitality applications.

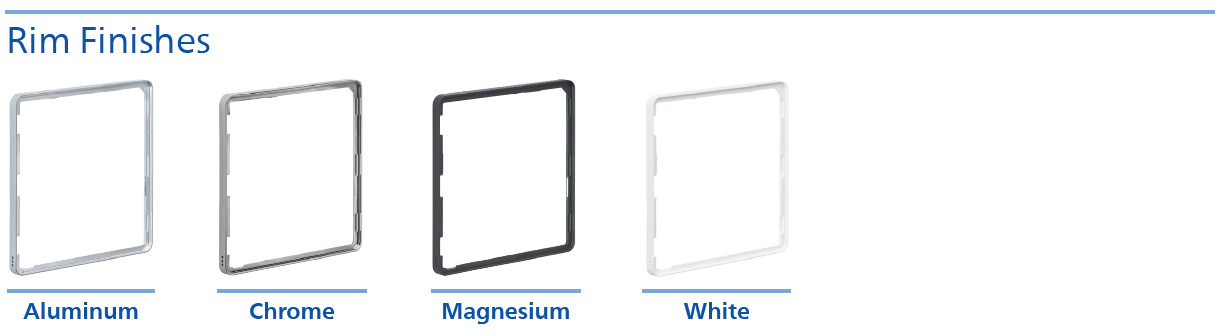

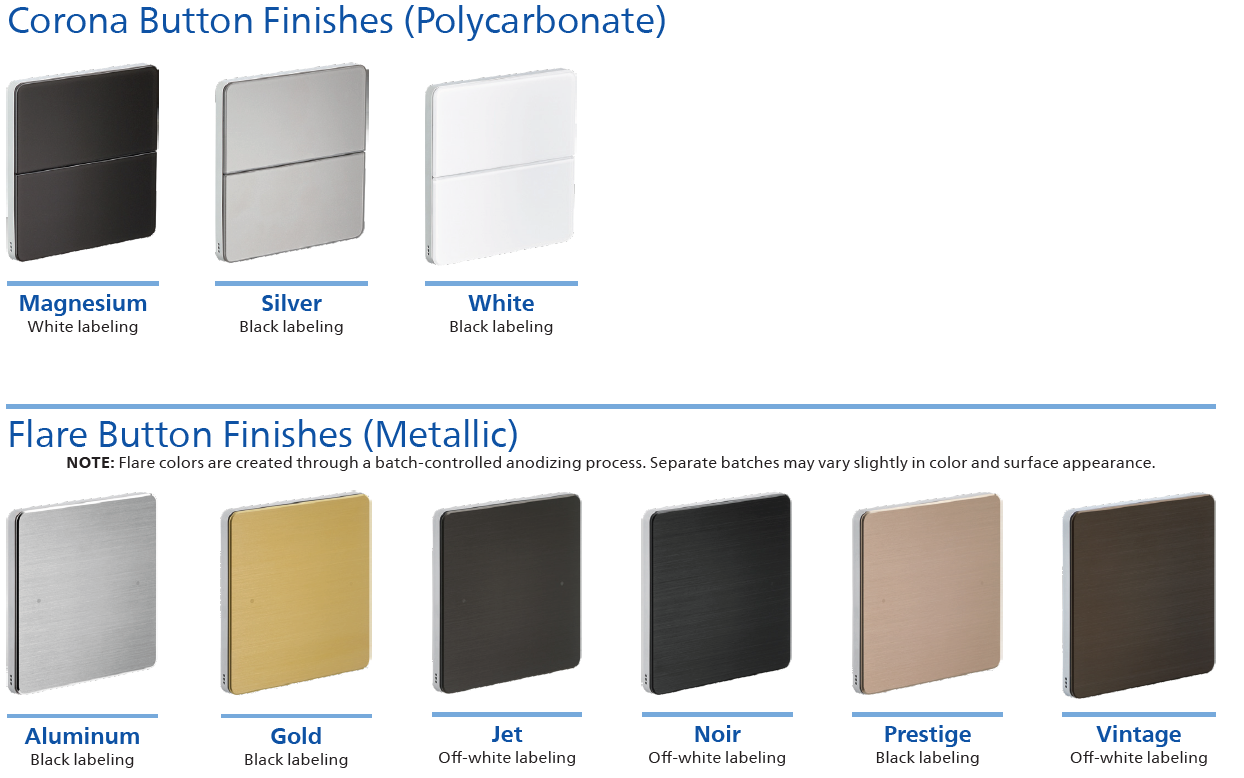

• Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.

• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

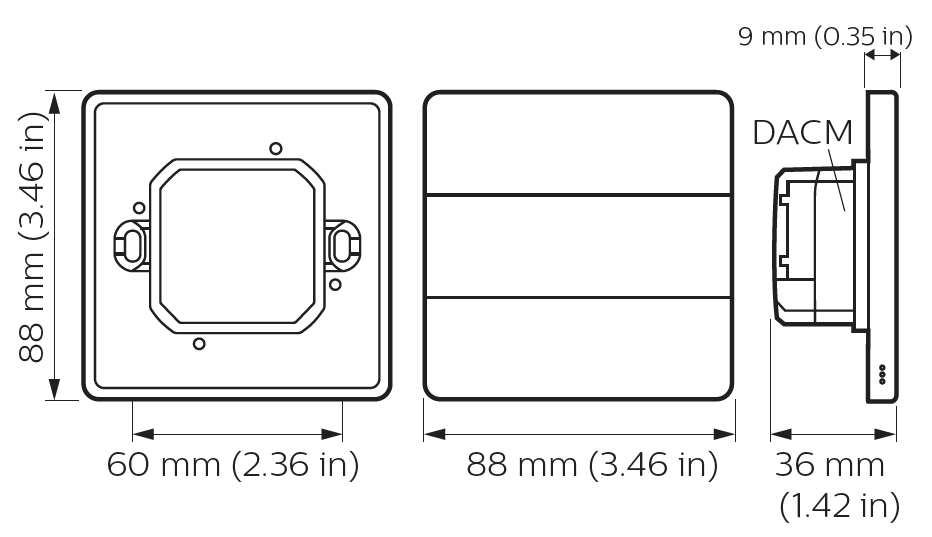

Dimension

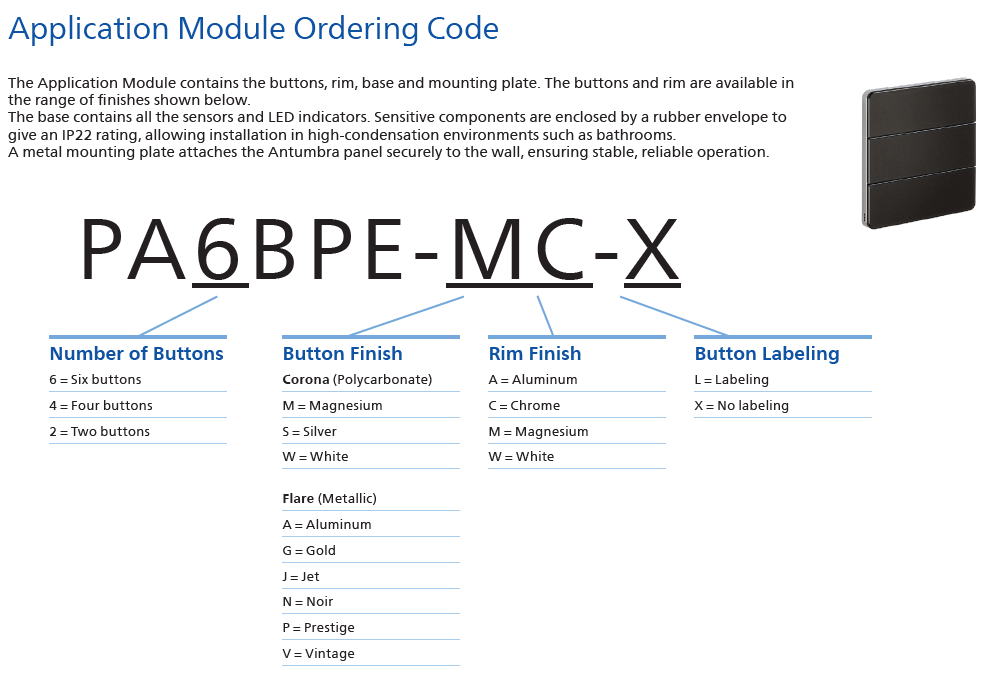

Ordering Code

913703072809  DACM-DyNet (DyNet communication module)

913703035409  PA6BPE-WW-L

913703430107  PA6BPE-WW-X

913703035409  PA6BPE-WA-L

913703035309  PA6BPE-WA-X

913703035409  PA6BPE-WC-L

913703035309  PA6BPE-WC-X

913703035409  PA6BPE-WM-L

913703035309  PA6BPE-WM-X
