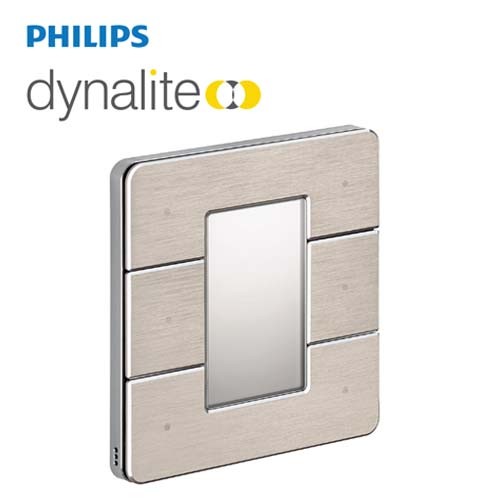

PHILIPS Dynalite Antumbra Display Panel PADPE-WC-X 913703040409

PADPE

Contemporary button panel with LCD display

• Field effect technology* – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to

encourage interaction.

• Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and

matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site,

allowing commissioning to commence prior to finish options being finalized.

• Hidden sensory inputs – An internal light sensor measures ambient light and adjusts the lightwash effect accordingly. A built-in

temperature sensor automatically adjusts air conditioning when integrated into the system.

• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common

icons transcends language barriers, which is particularly useful in hospitality applications.

• Central LCD – Allows for display of system information including temperature, time, channel level and current scene. Button

function can change when navigating between up to 16 pages.

• Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.

• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures.

Dimension

Ordering Code

913703072809  DACM-DyNet (DyNet communication module)

913703064309  DINGUS-DUS-DUAL-RJ12 (dual RJ12 connector - pack of 10)

913703334609  DINGUS-UI-DUAL-RJ45 (dual RJ45 connector - pack of 10)

913703433707  PADPE-WW-X

913703040409  PADPE-WA-X

913703040409  PADPE-WC-X

913703040409  PADPE-WM-X
