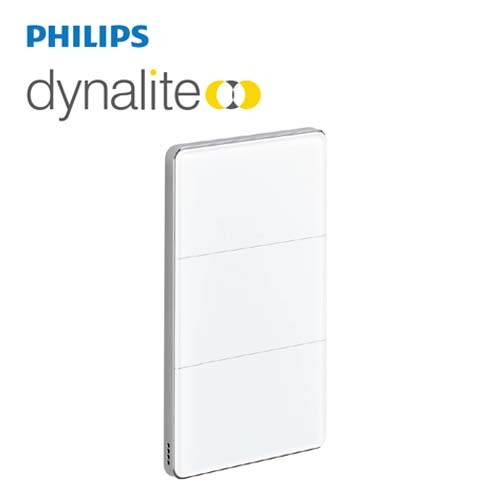

PHILIPS Dynalite Antumbra Touch Control Panel PATPA-WA-X 913703050809

PATPA

Contemporary smooth glass panels with capacitive touch technology

• Field effect technology* – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to

encourage interaction.

• Capacitive touch technology – Smooth glass finish detects the presence of a finger and triggers a button press action.

• Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and

matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-

site, allowing commissioning to commence prior to finish options being finalized.

• Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in

temperature sensor automatically adjusts air conditioning when integrated into the system.

• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common

icons transcends language barriers, which is particularly useful in hospitality applications.

• Décor-matching options – Rims are available in aluminum, black, chrome and white. Fascia finishes include black, silver and white.

• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures.

Dimension

Ordering Code

913703072809  DACM-DyNet (DyNet communication module)

913703064309  DINGUS-DUS-DUAL-RJ12 (dual RJ12 connector - pack of 10)

913703334609  DINGUS-UI-DUAL-RJ45 (dual RJ45 connector - pack of 10)

913703050909  PATPA-WW-L

913703050809  PATPA-WW-X

913703050909  PATPA-WA-L

913703050809  PATPA-WA-X

913703050909  PATPA-WC-L

913703050809  PATPA-WC-X

913703050909  PATPA-WB-L

913703050809  PATPA-WB-X
