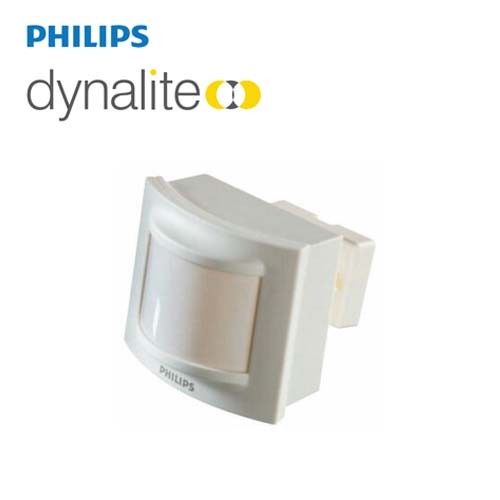

PHILIPS Dynalite Multifunction Sensor DUS90WHB-D 913703015509

DUS90WHB-D

Wide-angle high bay DALI network sensor

• DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.

• Powered directly by the DALI network – Eliminates the need for additional network field wiring.

• Motion detection feature – Detects the presence or absence of motion and triggers a programmed action.

• Ambient light level detection – In applications where it is critical to maintain precise lighting levels, the PE function reads ambient

levels and adjusts artificial light accordingly.

• Daylight harvesting – When used in conjunction with networked open loop daylight sensor.

• Infrared receive capability – Enables sign-in identification to the networked system.

• Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.

• Targeted positioning – Directional wallmounting block allows sensors to be easily mounted and directed to the required area.

Dimension

Ordering Code

913703213009  DUS360CR-D

913703023909  DUS360CS-D

913703015409  DUS90-AHB-D

913703015509  DUS90-WHB-D

913703015609  DUS30-LHB-D

913703338209  DUS180WR
