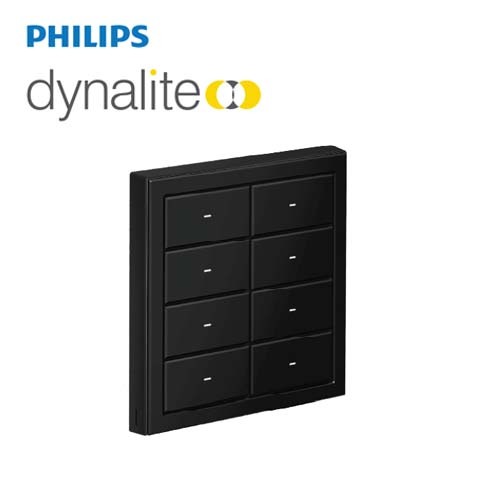

PHILIPS Dynalite Revolution Panel European PDR8xxE-BWW-S 913703074409

PDRxE

Contemporary two-, four-, or eight-button panel with backlit buttons

• Field effect technology* – The user interface detects an approaching user and lights up to encourage interaction.

• Colour backlight – Customise each button’s backlight from an RGB colour palette.

• Supplied as two components – The Application Module contains buttons, frame, base and mounting plate, which can be mixed

and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-

programmed off-site, allowing commissioning to commence prior to finalizing finish options.

• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common

icons transcends language barriers, which is particularly useful in hospitality applications.

• Custom button engraving – Available on request.

• Décor-matching options – Buttons and frames are available in a range of attractive glass-look polycarbonate finishes.

• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

Dimension

Ordering Code

913703072809  DACM-DyNet (DyNet communication module)

913703064309  DINGUS-DUS-DUAL-RJ12 (dual RJ12 connector - pack of 10)

913703334609  DINGUS-UI-DUAL-RJ45 (dual RJ45 connector - pack of 10)

913703074409  PDR8xxE-WWW-L

913703074409  PDR8xxE-WWW-S

913703074409  PDR8xxE-WBB-L

913703074409  PDR8xxE-WBB-S

913703074409  PDR8xxE-BWW-L

913703074409  PDR8xxE-BWW-S

913703074409  PDR8xxE-BBW-S

913703074409  PDR8xxE-BBB-L

913703074409  PDR8xxE-BBB-S
