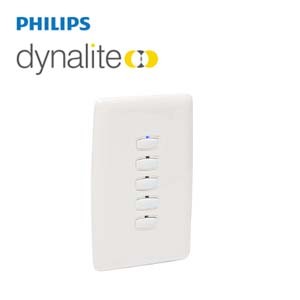

PHILIPS Dynalite Standard Series American User Interfaces DL2PA950 913703388209

DL2PA

Slim-line panel in white with blue LED indicators

• Slimline finish – Ultra-thin profile provides a less intrusive alternative, where aesthetics are a key issue.

• Aesthetically pleasing – Provides an elegant point for integrated automation in commercial buildings and homes.

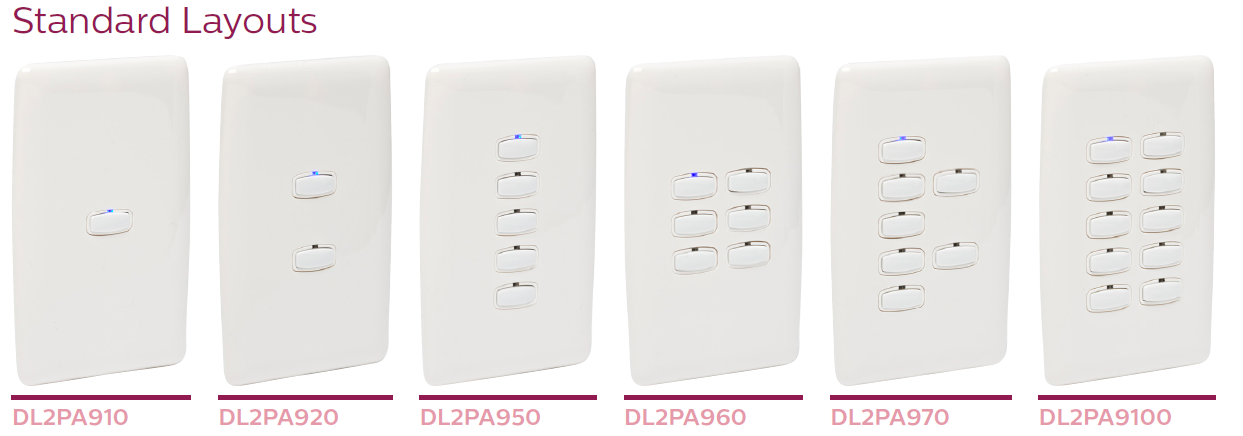

• Available in two configurations – Single column, for up to five buttons and a dual column design for up to ten buttons, where more

complex control is required.

• Incorporates a miniature DyNet control network socket – Discreetly located under the snap-on cover, the network socket enables

system adjustments and programming from any user interface on the network.

• Smooth action buttons with blue LED indicators – Provide tactile and visual feedback and are easily removed for engraving.

• Décor matching capability – Available in a range of fascia, bezel and button cap colors and finishes.

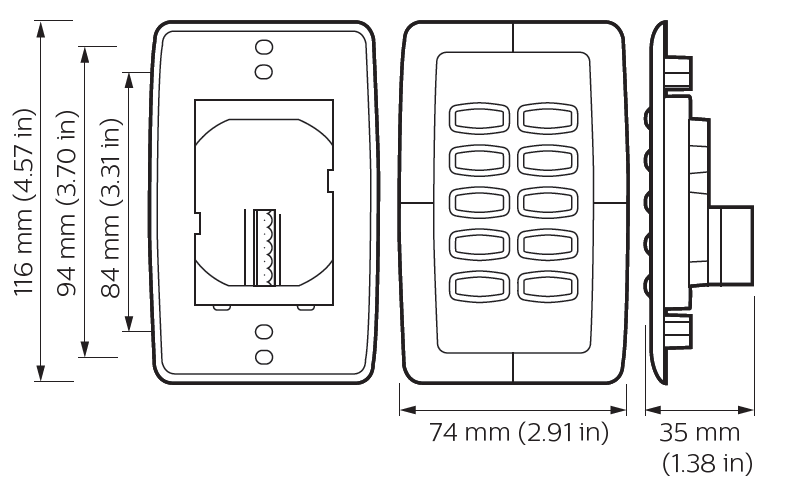

Dimension

Ordering Code

913703388409  DL2PA910

913703388509  DL2PA920

913703389009  DL2PA930

913703388209  DL2PA950

913703388609  DL2PA960

913703388709  DL2PA970

913703388309  DL2PA9100

913703249109  DR2PA

913703249209  DR2PA
