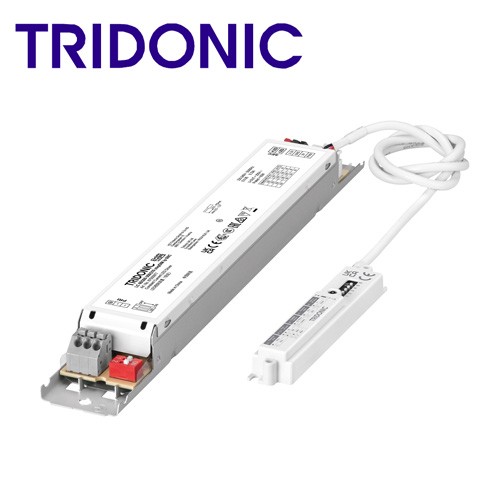

Tridonic LED Driver LC 65W 200-350mA stepDIM lp SNC 87500977

Product description

- LED Constant current LED driver for luminaire installation

- Motion and daylight detection (included in delivery)

- LED driver with sensor (included in delivery)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Selectable fixed output current 350, 300, 250 and 200 mA (pre-selected current 350 mA)

- Max. output power 65 W

- Up to 89 % efficiency

- Nominal lifetime up to 50,000 h

- 5 years guarantee

Housing properties

- Casing driver: metal, white

- Casing sensor: polycarbonate, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

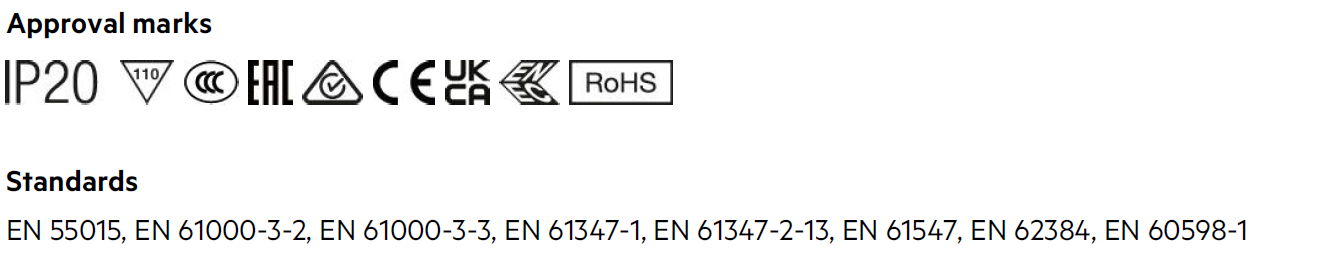

Approval marks and Standards

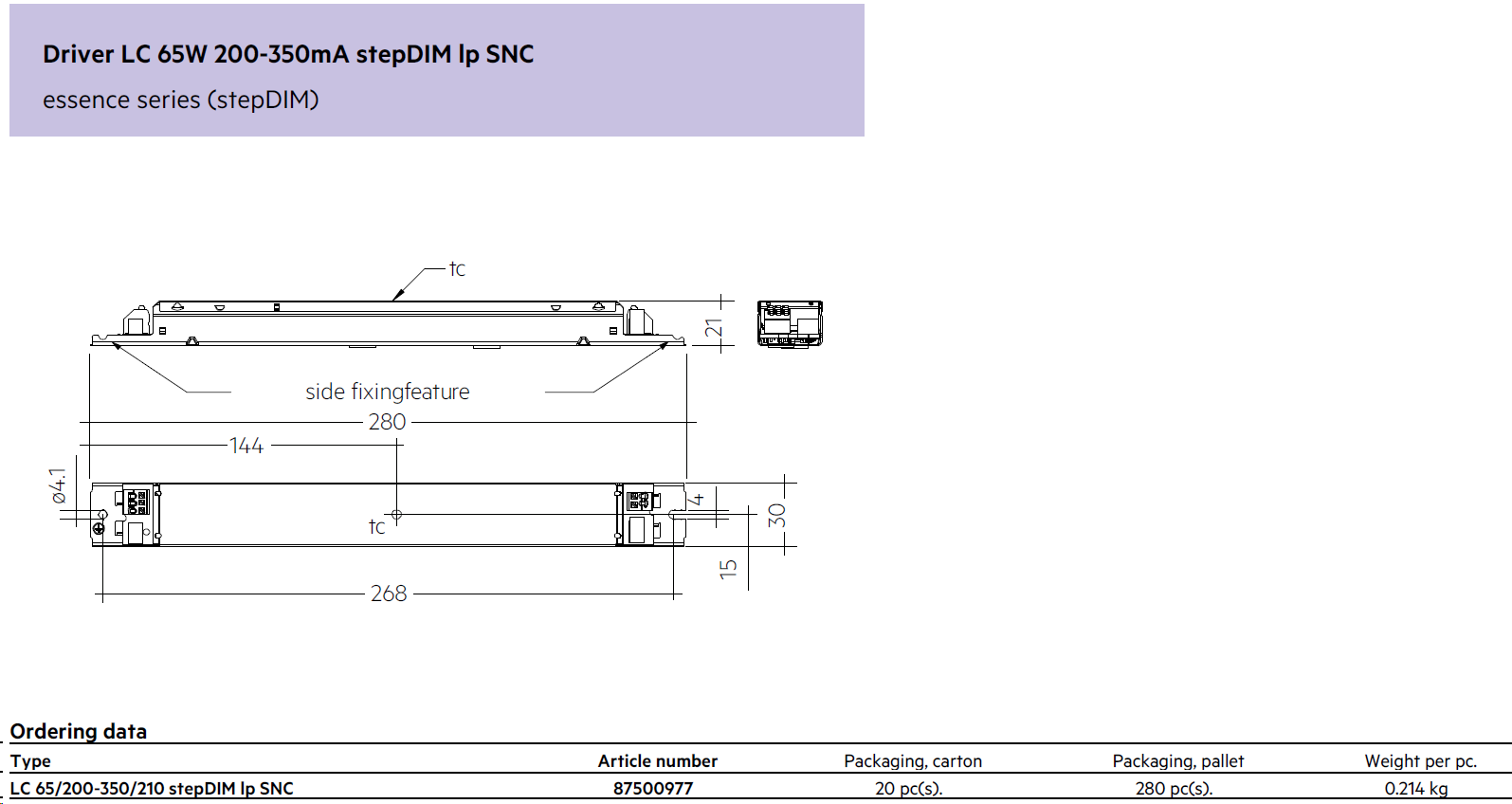

Dimension and Ordering data

Remark

LC 25/200-350/70 stepDIM lp SNC      87500974

LC 35/200-350/121 stepDIM lp SNC    87500975

LC 50/200-350/170 stepDIM lp SNC    87500976

LC 65/200-350/210 stepDIM lp SNC    87500977

Any question,please feel free to contact with us
