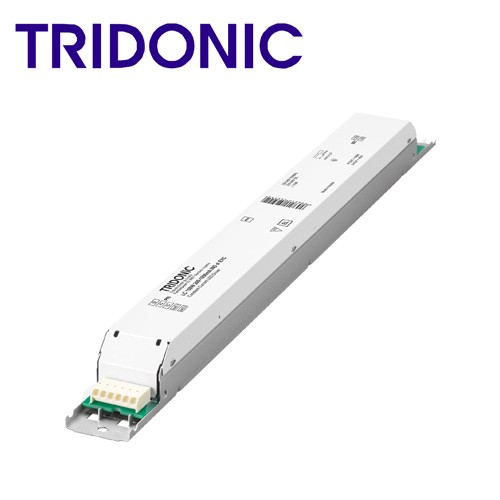

Tridonic LED Driver LC 150W 200–1050mA sl EXC 28001698

Product description

- Constant current built-in LED driver, particularly suitable for industrial applications in moderate environments such as

semiconductor factories or logistic warehouses

- The LED driver is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 %

- Output current adjustable between 200 – 1,050 mA

- Max. output power 150 W

- Suitable for mains voltage peaks (burst/surge) up to 4 kV

- Temperature range of -25 ... +60 °C

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- White slim metal casing

- Type of protection IP20

Interfaces

- ready2mains (configuration via mains)

Functions

- Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Suitable for emergency escape lighting systems acc. to EN 50172

- Power-up fading at AC

- Intelligent Temperature Guard (overtemperature protection)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

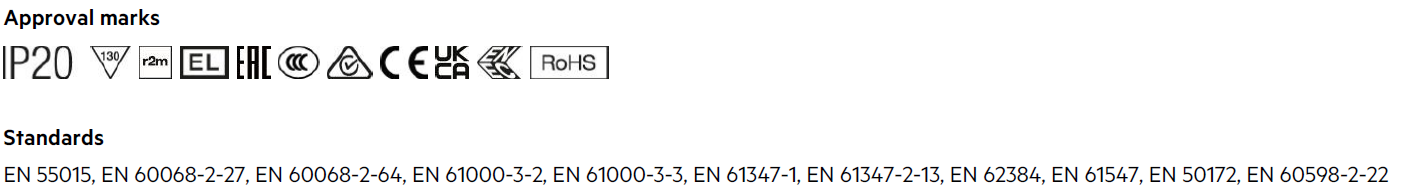

Approval marks and Standards

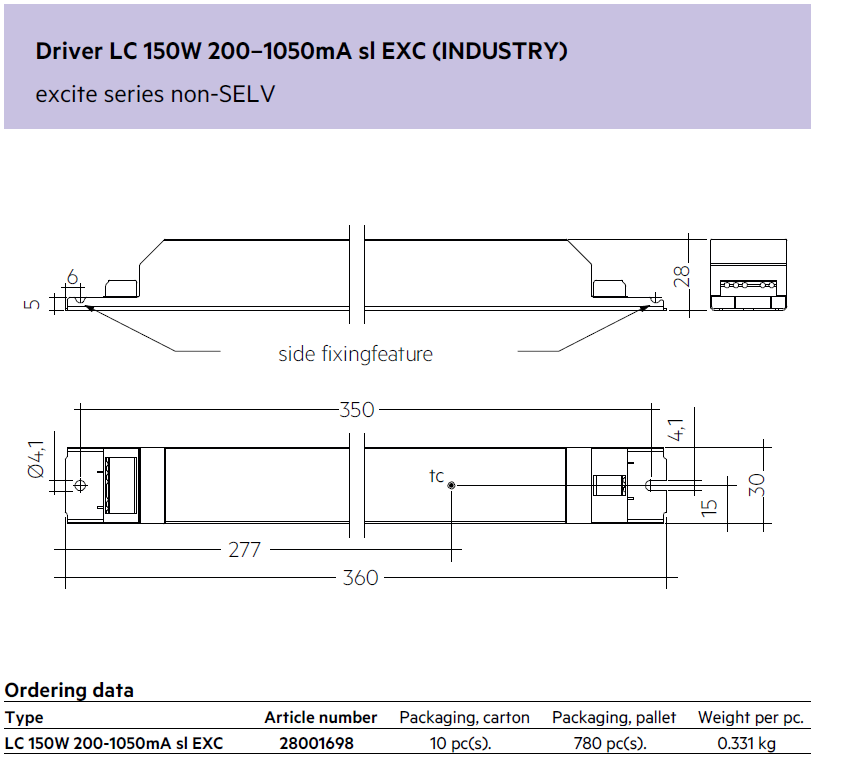

Dimension and Ordering data

Remark

LC 150W 200-1050mA IND sl EXC                 28000691

LC 150W 200-1050mA sl EXC                       28001698

LCI 75/100-700/250 flexC NF lp EXC3           87500919

LCI 75/250-500/230 flexC NF h21 EXC3        28003510

LCI 105/250-1050/300 flexC NF lp EXC3       87500920

LCI 105/350-600/230 flexC NF h21 EXC3      28003511

LCI 150/500-850/230 flexC NF h28 EXC3      28003512

LCI 220/800-1200/230 flexC NF h28 EXC3    28003513
