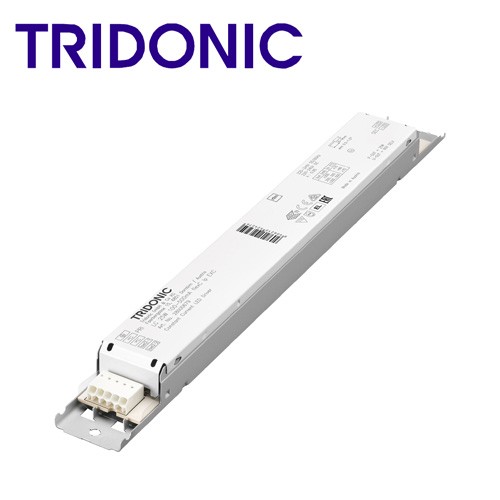

Tridonic LED Driver LC 25W 100–500mA flexC lp EXC 28000679

Product description

- Constant current LED driver for luminaire installation

- For luminaires of protection class I and protection class II

- Adjustable output current between 100 and 500 mA via ready2mains Programmer or I-SELECT 2 plugs

- Max. output power 25 W

- Up to 87 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Low profile metal casing with white cover

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

- Best energy savings due to high efficiency

- Flexible configuration via ready2mains and I-SELECT 2

- Reliability proven by lifetime up to 100,000 h and 5 years guarantee

Typical applications

- For linear/area lighting in office applications

Approval marks and Standards

Dimension and Ordering data

Remark

LC 20/80-500/54 flexC NF h16 EXC4         28004409

LC 35/150-700/54 flexC NF h16 EXC4       28004410

LC 55/350-1050/54 flexC NF h16 EXC4     28004411

LC 75/900-1900/54 flexC NF h16 EXC4     28004412

LC 25/75-350/220 flexC NF h16 EXC4       28005033

LC 40/75-400/220flexC NF h16 EXC4        28005034

LC 60/75-330/310flexC NF h16 EXC4        28005036

LC 60/150-550/220flexC NF h16 EXC4      28005035

LC 90/150-400/310 flexC NF h16 EXC4     28005038

LC 90/200-800/220 flexC NF h16 EXC4     28005037

LC 120/350-1050/240flexC NF h16 EXC4  28005039

LC 25W 100-500mA flexC Ip EXC              28000679

LC 50W 350-1050mA flexC lp EXC            28000681

LC 75W 900-1800mA flexC lp EXC            28000684

LC 50W 100-400mA flexC lp EXC              28000680

LC 75W 100-400mA flexC lp EXC              28000713

LC 75W 250-550mA flexC lp EXC              28001808

LC 75W 350-1050mA flexC lp EXC            28000683

LC 100W 250-700mA flexC lp EXC            28000690
