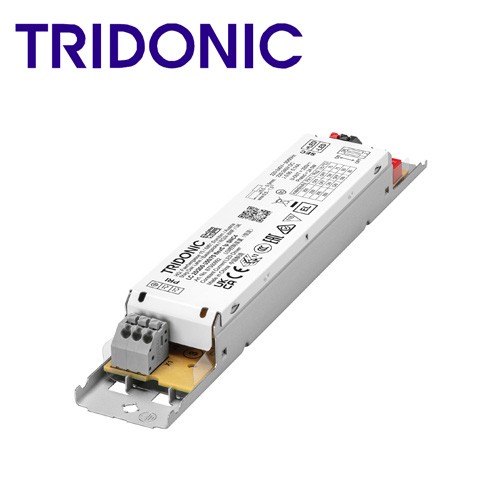

Tridonic LED Driver LC 25W 200-350mA flexC lp SNC4 87500992

Product Item : 87500992
Category： LED Linear Drivers
Power: 25W
Rated supply voltage: 220-240V
Output current: 200-350mA
Dimensions: 180*30*21mm
Product description：This linear driver delivers a ‌flexible output current range of 200–350mA‌ with a ‌25W maximum power rating‌, optimized for 230V AC input. Equipped with ‌NF (No Flicker)‌ technology.
INQUIRY EMAIL

Tridonic LED Driver LC 25W 200-350mA flexC lp SNC4 87500992

Product description

- LED Constant current LED driver for luminaire installation

- For class I luminaires

- Temperature protection as per EN 61347-2-13 C5e

- Selectable fixed output current 350, 300, 250 and 200 mA

- Max. output power 24.5 W

- Up to 86 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: metal, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

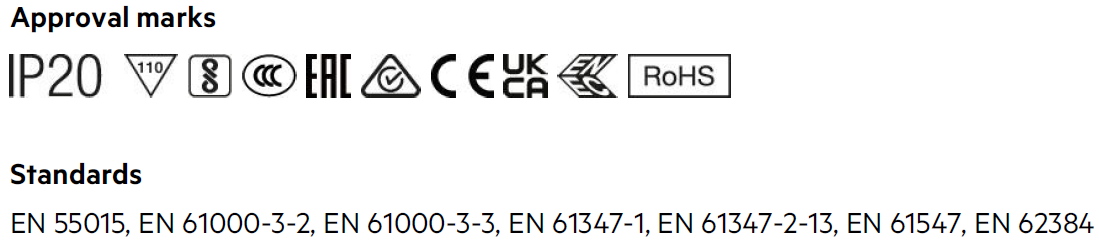

Approval marks and Standards

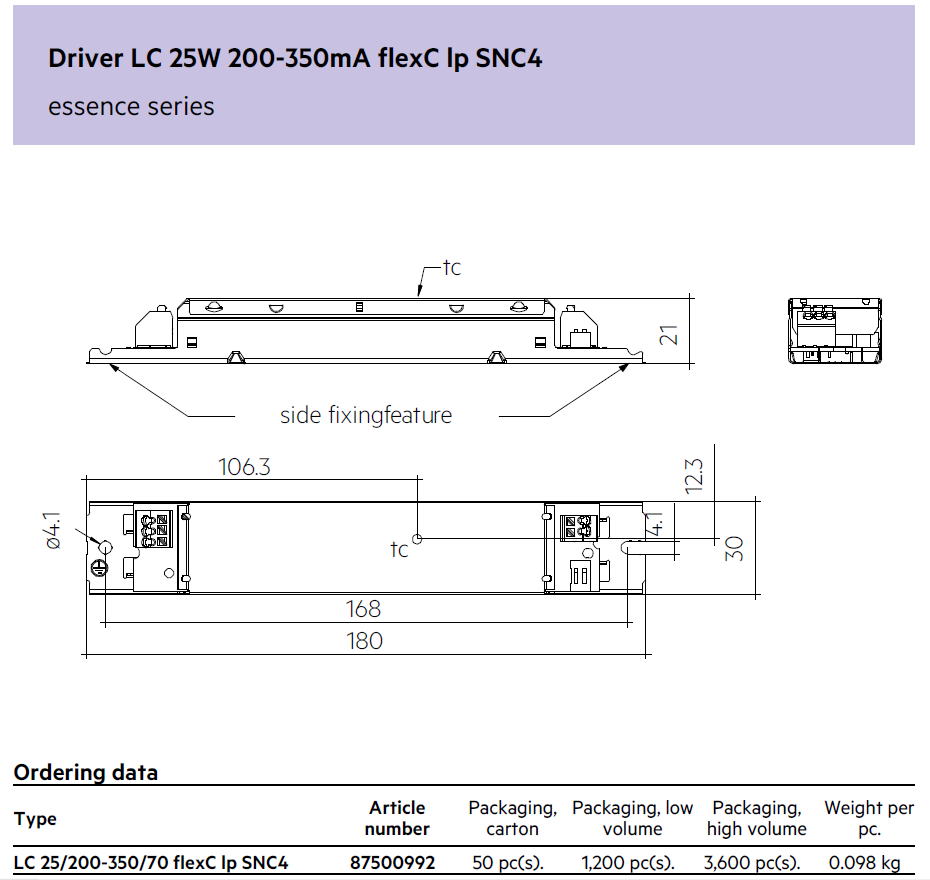

Dimension and Ordering data

Remark

LC 20/200-350/67 flexCC lpSNC4 87501098

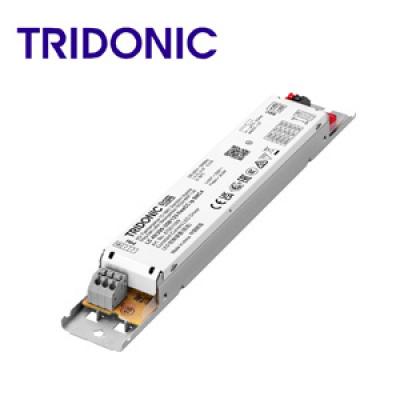

LC 40/200-350/133 flexCC lp SNC4 87501099

LC 60/200-350/200 flexCC lp SNC4 87501100

LC 75/350-500/216 flexCC lp SNC4 87501101

LC 20/200-350/67 flexCC Ip SNC4 CCT   87501102

LC 40/200-350/133 flexCC Ip SNC4 CCT   87501103

LC 60/200-350/200 flexCC lp SNC4 CCT   87501104

LC 75/350-500/216 flexCC IpSNC4 CCT 87501105

LC 25/200-350/70 flexC lp SNC4 87500992

LC 35/200-350/121 flexC lp SNC4 87500993

LC 50/200-350/170 flexC lp SNC4 87500994

LC 65/200-350/210 flexC lp SNC4 87500995

LC 38/350-500/85 flexC Ip SNC4 87501116

LC 75/350-500/167 flexC lp SNC4 87501117

LC 112/200-350/320 flexC lp SNC4 87501118

LC 165/400-700/320 flexC lp SNC4 87501119

LC 10/200-350/29 flexC lp SNC4 28004119

LC 19/200-350/54 flexC lp SNC4 28004120

LC 38/400-700/54 flexC lp SNC4 28004142

LC 57/700-1050/54 flexC Ip SNC4 28004143

LC 75/1100-1400/54 flexC lp SNC4 28004144
