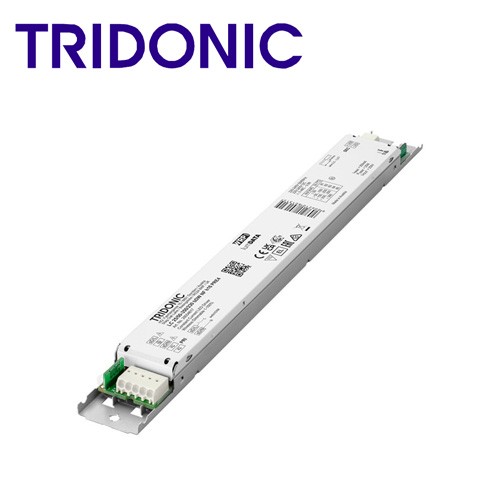

Tridonic LED Driverc  LC 25W 50–350mA 230V bDW NF h16 PRE4 28004617

Product description

- Can be integrated in Casambi systems (Casambi Ready)

- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)

- Dimmable built-in constant current LED driver

- Dimming range 1 to 100 %

- For luminaires of protection class I and protection class II

- Output current adjustable between 50 – 350 mA

- Max. output power 25 W

- Up to 91.1 % efficiency

- Power input on stand-by < 0.14 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

- We will provide security updates for the next five years after the date of purchase of this product

Housing properties

- Low profile metal casing with white cover

- Only 16 mm housing height

- Type of protection IP20

Interfaces

- basicDIM Wireless

- Near field communication (NFC)

- switchDIM

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC)

- lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)

- Constant light output function (eCLO)

- Power-up fading at AC

- Switch off the driver with fade2zero

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE

- Support NFC multiple programming (full carton box)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- Reliability proven by lifetime up to 100,000 h and 5 years guarantee

Typical applications

- For linear/area lighting in office applications

Approval marks and Standards

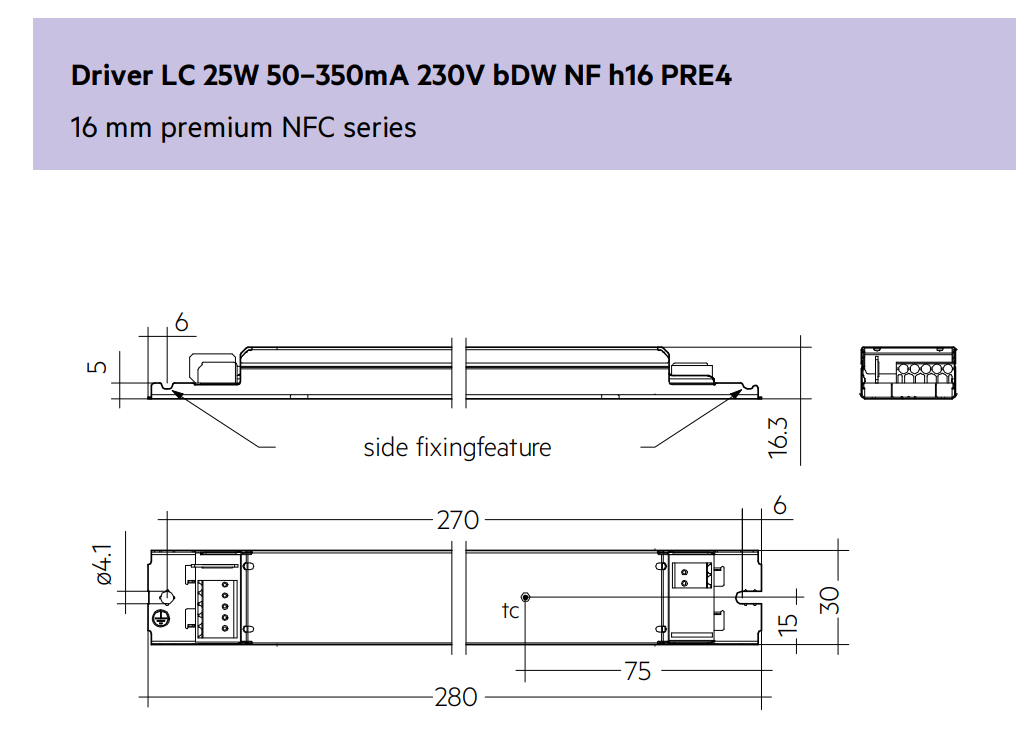

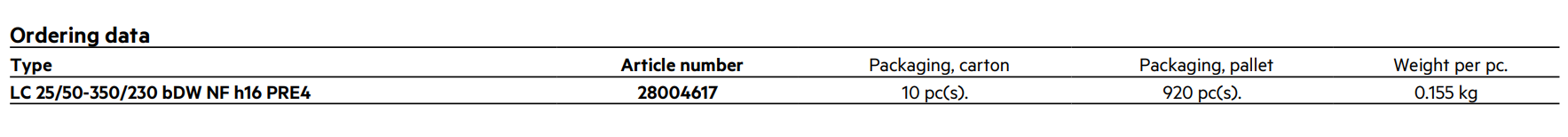

Dimension and Ordering data

Remark

LC 25/50-350/230 bDW NF h16 PRE4      28004617

LC 40/75-400/230 bDW NF h16 PRE4      28004618

LC 60/150-550/230 bDW NF h16 PRE4    28004619

LC 90/200-800/230 bDW NF h16 PRE4    28004620
