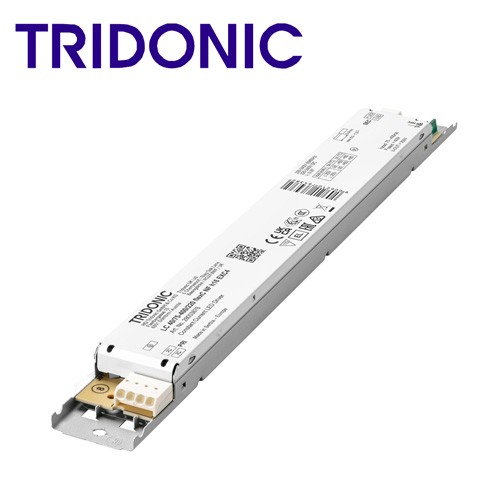

Tridonic LED Driver LC 40W 75–400mA flexC NF h16 EXC4 28005034

Product description

- New article (28005034) with updated NFC interface for compatibility with ID ECCO Smart 2D-TR

- Constant current LED driver for luminaire installation

- For class I luminaires

- Adjustable output current between 75 and 400 mA via NFC

- Max. output power 40 W

- Up to 94 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Low profile metal casing with white cover

- Only 16 mm housing height

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC)

- Constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE

- Support NFC multiple programming (full carton box)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to high efficiency

- Reliability proven by lifetime up to 100,000 h and 5 years guarantee

Typical applications

- For linear/area lighting in office applications

Approval marks and Standards

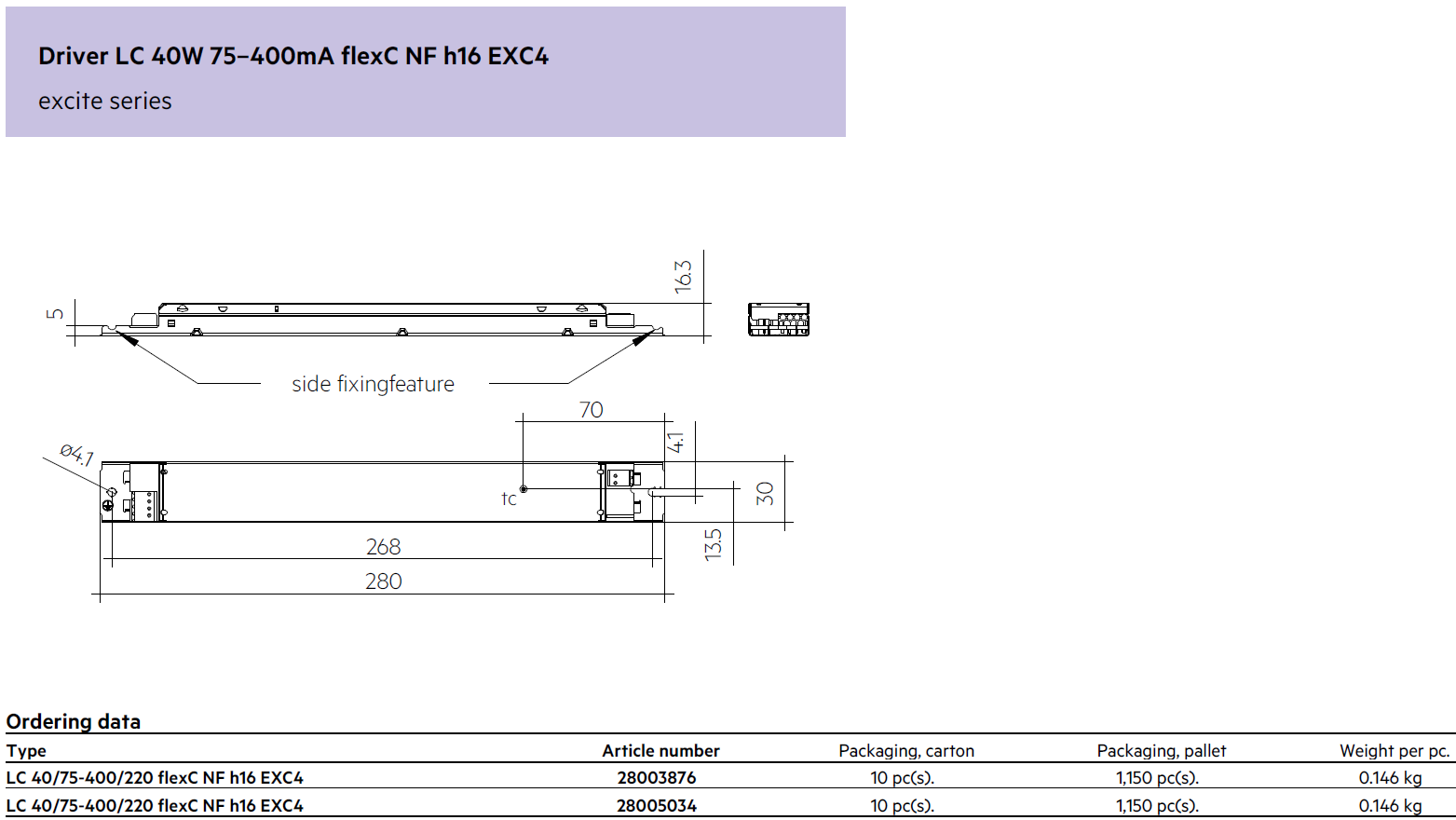

Dimension and Ordering data

Remark

LC 20/80-500/54 flexC NF h16 EXC4         28004409

LC 35/150-700/54 flexC NF h16 EXC4       28004410

LC 55/350-1050/54 flexC NF h16 EXC4     28004411

LC 75/900-1900/54 flexC NF h16 EXC4     28004412

LC 25/75-350/220 flexC NF h16 EXC4       28005033

LC 40/75-400/220flexC NF h16 EXC4        28005034

LC 60/75-330/310flexC NF h16 EXC4        28005036

LC 60/150-550/220flexC NF h16 EXC4      28005035

LC 90/150-400/310 flexC NF h16 EXC4     28005038

LC 90/200-800/220 flexC NF h16 EXC4     28005037

LC 120/350-1050/240flexC NF h16 EXC4  28005039

LC 25W 100-500mA flexC Ip EXC              28000679

LC 50W 350-1050mA flexC lp EXC            28000681

LC 75W 900-1800mA flexC lp EXC            28000684

LC 50W 100-400mA flexC lp EXC              28000680

LC 75W 100-400mA flexC lp EXC              28000713

LC 75W 250-550mA flexC lp EXC              28001808

LC 75W 350-1050mA flexC lp EXC            28000683

LC 100W 250-700mA flexC lp EXC            28000690
