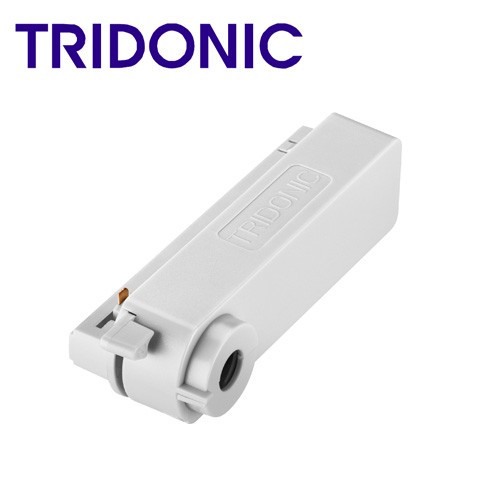

Tridonic LED Driver LC 44W 900-1050mA flexC T-G SNC4 87501169

Product description

- Constant current / in-track LED driver

- Accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head included, but not pre-assembled

- Compatible 1-phase system in-tracks, see data sheet chapter 3.8

- For luminaires of protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Selectable fixed output current via DIP switch 900, 950, 1,000 and 1,050 mA (pre-selected current 900 mA)

- Max. output power 44.1 W

- Up to 88 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, black, white or grey

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

Typical applications

- For spot light in retail and hospitality application

Approval marks and Standards

Dimension and Ordering data

Remark

LC 15/200-350/42 flexC T-B SNC3       87501149

LC 15/200-350/42 flexC T-W SNC3      87501153

LC 15/200-350/42 flexC T-G SNC3       87501157

LC 25/450-600/42 flexC T-B SNC3       87501150

LC 25/450-600/42 flexC T-W SNC3      87501154

LC 25/450-600/42 flexC T-G SNC3       87501158

LC 34/650-800/42 flexCT-B SNC3        87501151

LC 34/650-800/42 flexC T-W SNC3      87501155

LC 34/650-800/42 flexC T-G SNC3       87501159

LC 42/900-1050/40 flexC T-B SNC3     87501152

LC 42/900-1050/40 flexC T-W SNC3    87501156

LC 42/900-1050/40 flexC T-G SNC3     87501160

LC 17/250-400/42 flexC T-B SNC4       87501161

LC 17/250-400/42 flexC T-W SNC4      87501164

LC 17/250-400/42 flexC T-G SNC4       87501167

LC 34/500-800/42 flexC T-B SNC4       87501162

LC 34/500-800/42 flexC T-W SNC4      87501165

LC 34/500-800/42 flexC T-G SNC4       87501168

LC 44/900-1050/42 flexC T-B SNC4     87501163

LC 44/900-1050/42 flexC T-W SNC4    87501166

LC 44/900-1050/42 flexC T-G SNC4     87501169
