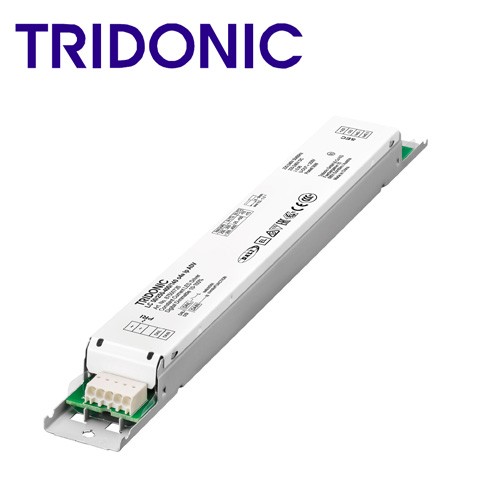

Tridonic LED Driver LC 50W 250-400mA 140V o4a lp ADV 87500726

Product description

- Dimmable built-in constant current LED driver

- Dimming range 10 – 100 % (min. 25 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 250 and 400 mA via I-SELECT 2 plugs

- Max. output power 50 W

- Up to 91 % efficiency

- Power input on stand-by < 0.4 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Low profile metal casing with white cover

- Type of protection IP20

Interfaces

- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2)

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (I-SELECT 2)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

Typical applications

- For linear/area lighting

Approval marks and Standards

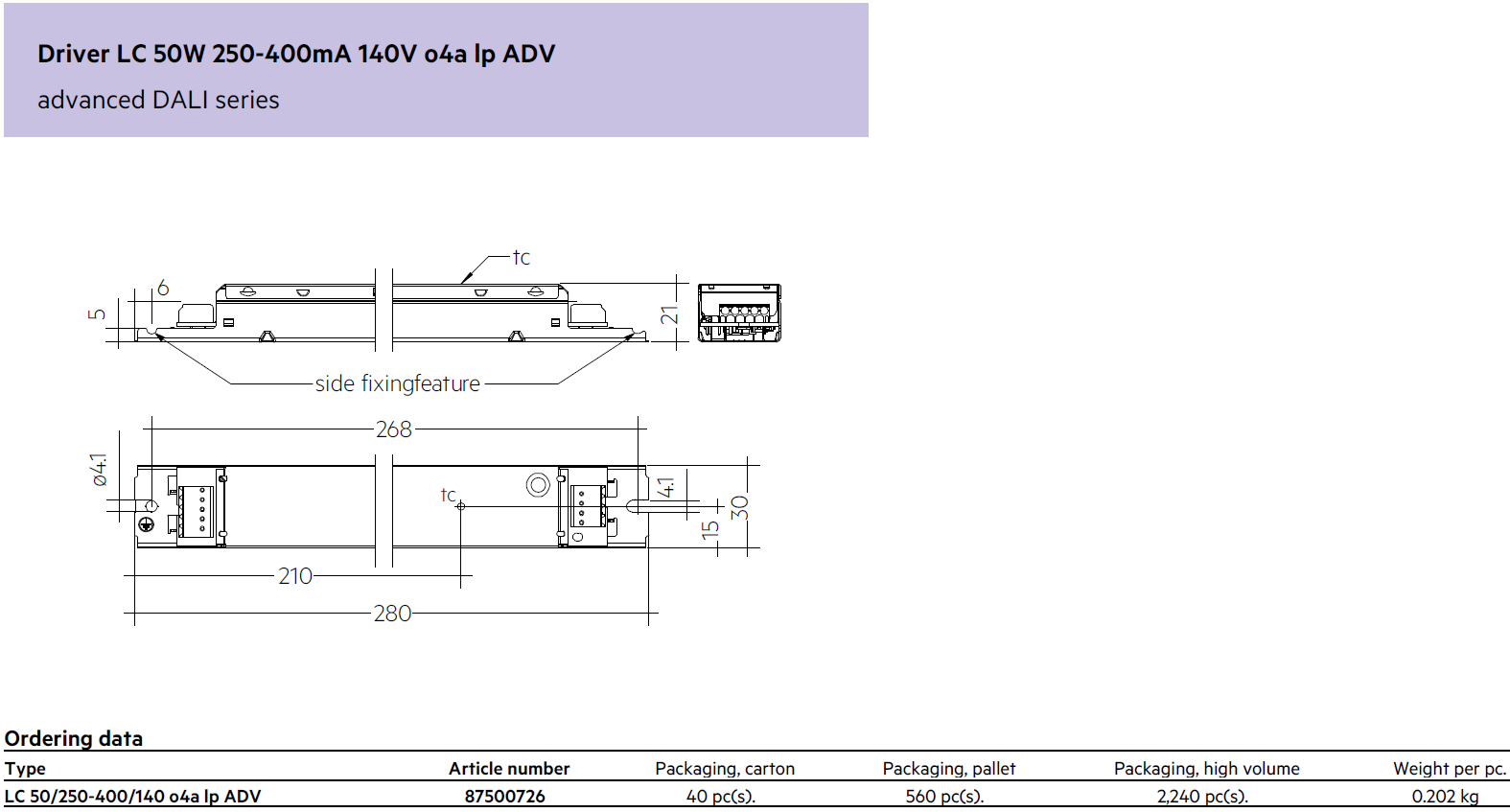

Dimension and Ordering data

Remark

LC 50/250-400/140 o4a lp ADV   87500726

LC 75/250-400/220 o4a lp ADV   87500728
