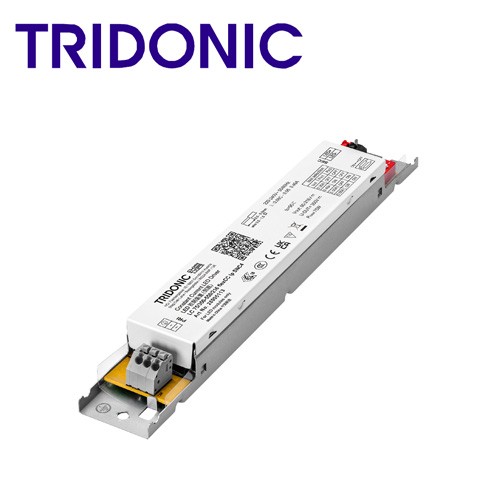

Tridonic LED Driver LC 75W 350-550mA flexCC lp SNC4 28005113

Product description

- LED Constant current LED driver for luminaire installation

- For class I luminaires

- Temperature protection as per EN 61347-2-13 C5e

- Selectable fixed output current 350, 400, 500 and 550 mA (pre-selected current 350 mA)

- Max. output power 75.6 W

- Up to 93 % efficiency

- Nominal lifetime up to 50,000 h

- 3 years guarantee

Housing properties

- Casing: metal, white

- Type of protection IP20

Functions

- Overload protection

- Short-circuit protection

- No-load protection

Approval marks and Standards

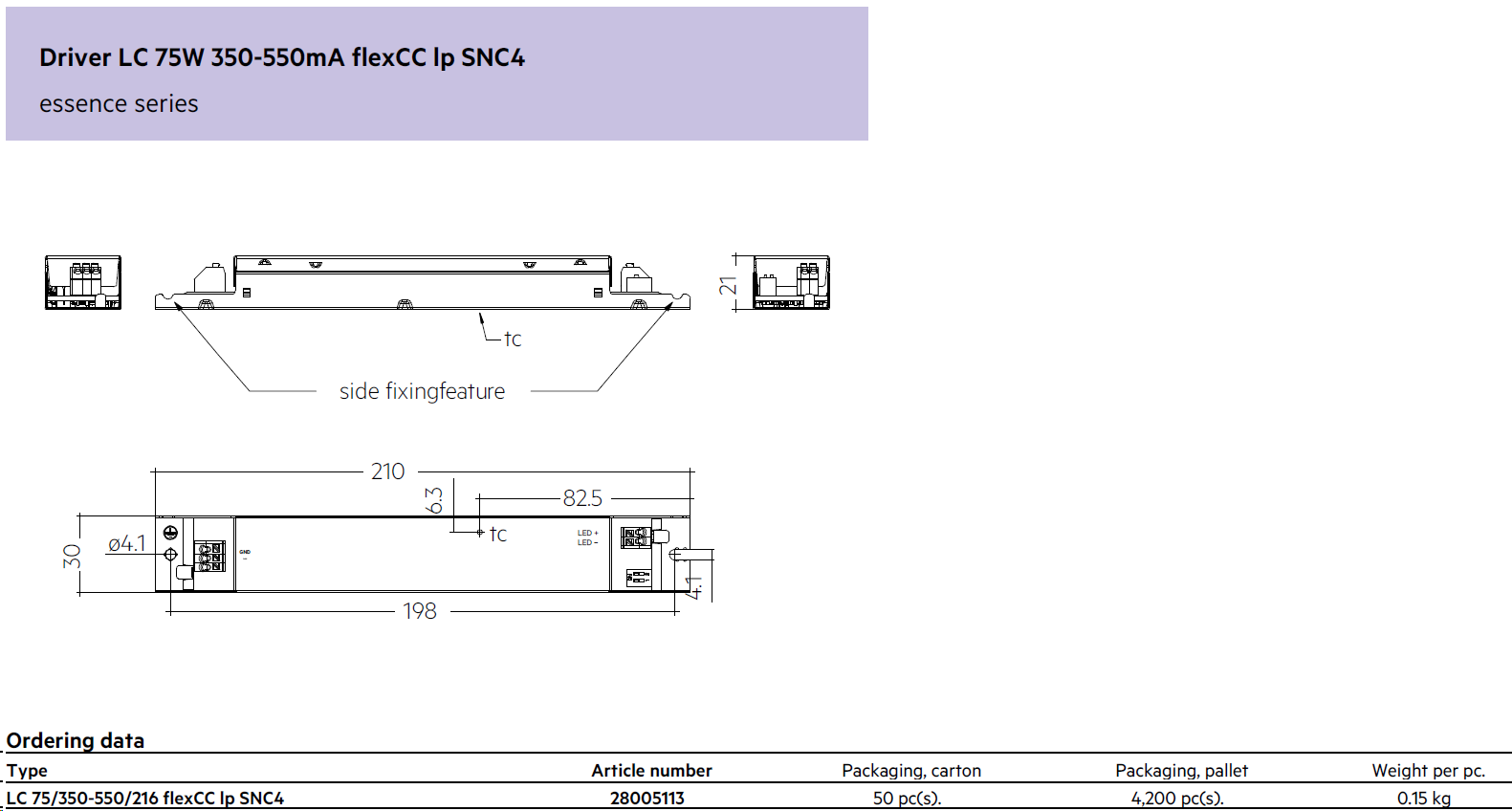

Dimension and Ordering data

Remark

LC 20/200-350/67 flexCC Ip SNC4             28004923

LC 40/200-350/133 flexCClp SNC4            28004924

LC 60/200-350/200 flexCC lp SNC4           28004925

LC 75/350-550/216 flexCC Ip SNC4           28005113

LC 20/200-350/67 flexCC Ip SNC4 CCT     28004926

LC 40/200-350/133 flexCC lp SNC4 CCT   28004927

LC 60/200-350/200 flexCC lp SNC4 CCT   28004928

LC 75/350-550/216 flexCC Ip SNC4 CCT   28005114
