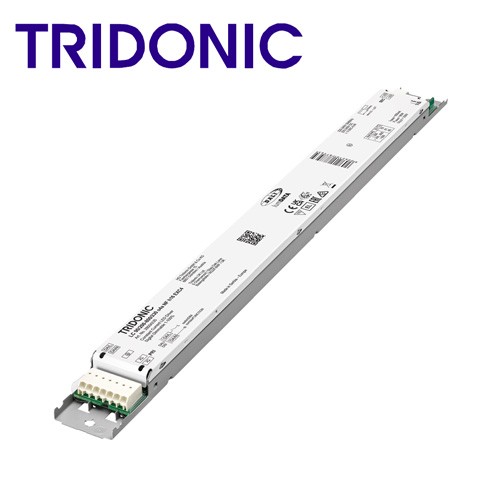

Tridonic LED Driver LC 90W 200–800mA 230V o4a NF h16 EXC4 28004235

Product description

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Dimmable built-in constant current LED driver

- Dimming range 1 to 100 %

- For luminaires of protection class I and protection class II

- Output current adjustable between 200 and 800 mA

- Max. output power 90 W

- Up to 95 % efficiency

- Power input on stand-by < 0.14 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Low profile metal casing with white cover

- Only 16 mm housing height

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC, DALI)

- Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)

- Constant light output function (eCLO)

- Power-up fading at AC

- Switch off the driver with fade2zero

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE

- Support NFC multiple programming (full carton box)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- Reliability proven by lifetime up to 100,000 h and 5 years guarantee

Typical applications

- For linear/area lighting in office applications

Approval marks and Standards

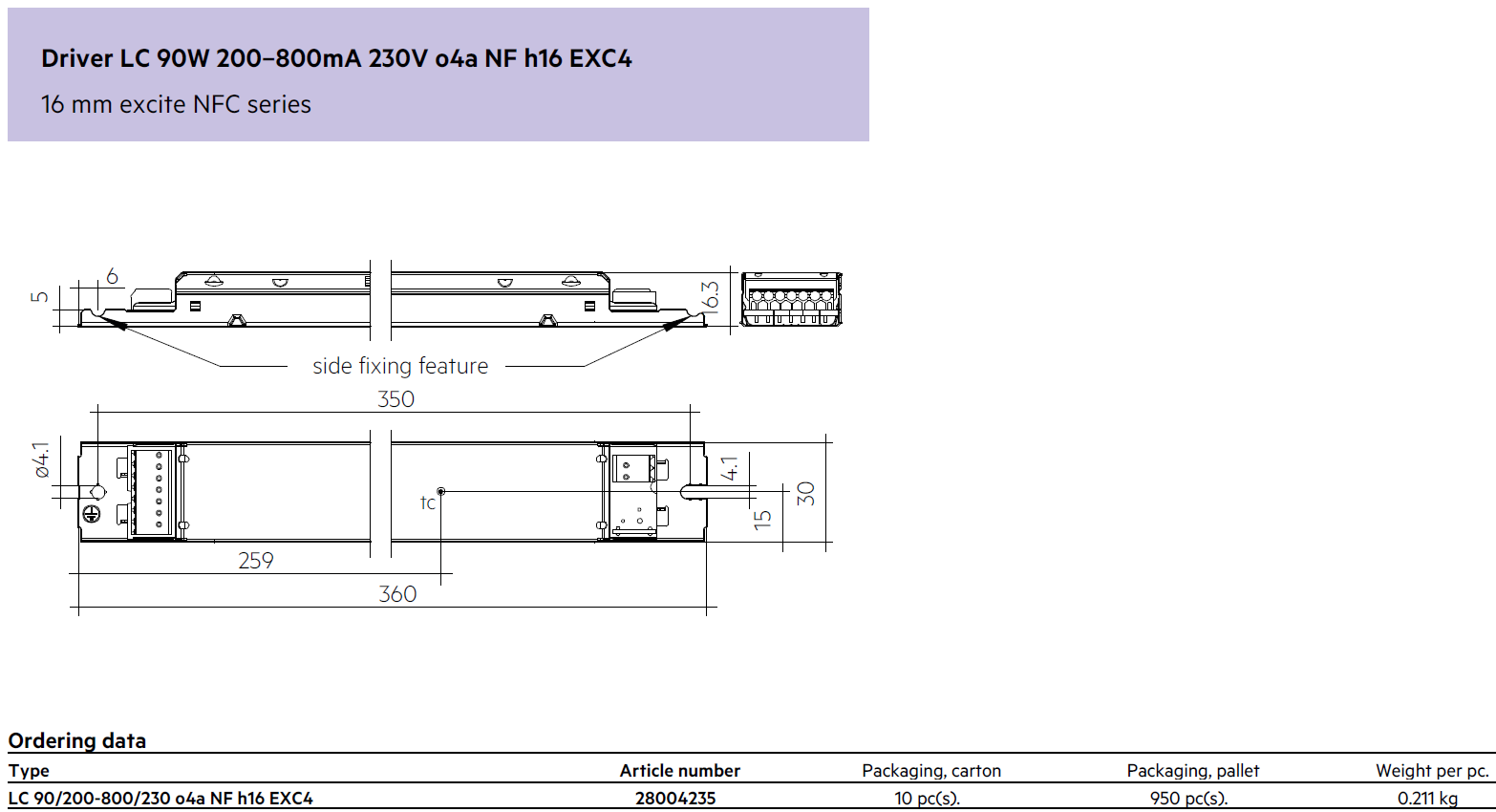

Dimension and Ordering data

Remark

LC 25/50-350/230 04a NF h16 EXC4       28004048

LC 40/75-400/230 04a NF h16 EXC4       28004049

LC 60/75-330/330 04a NF h16 EXC4       28004050

LC 60/150-550/230 04a NF h16 EXC4     28003603

LC 90/150-400/330 04a NF h16 EXC4     28004234

LC 90/200-800/230 04a NF h16 EXC4     28004235

LC 120/350-1050/23004a NF h16 EXC4  28004236

LC 20/80-500/54 04a NF h16 EXC4         28004632

LC 35/150-700/54 04a NF h16 EXC4       28004633

LC 55/350-1050/54 04a NF h16 EXC4     28003602

LC 75/900-1900/54 04a NF h16 EXC4     28004634

LC 50/100-400/140 04a NF h11 PRE3     28002371

LC 75/100-400/220 04a NF h11 PRE3     28002375

LCA 50W 100-400mA one4all lp PRE      28000655

LCA 75W 100-400mA one4all lp PRE      28000657

LCA 75W 250-550mA one4all lp PRE      28001250

LCA 75W 350-1050mA one4all lp PRE    28000659

LCA 100W 250-700mA one4all lp PRE    28000661

LCA 35W 150-700mA one4all Ip PRE      28000654

LCA 50W 350-1050mA one4all lp PRE    28000656

LCA 75W 900-1800mA one4all lp PRE    28000660
