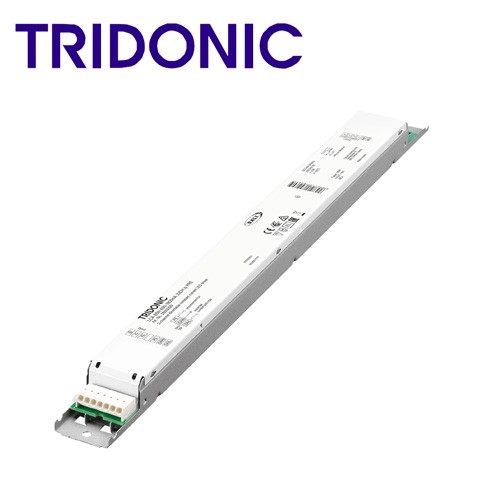

Tridonic LED Driver LCA 85W 600–1800mA 2xCH lp PRE 28002829

Product description

- NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)

- Dimmable built-in constant current 2-channel LED driver with DALI DT6

- Dimming range 1 to 100 %

- Suitable for luminaires of protection class I and protection class II (see data sheet chapter 3.4 for details)

- Output current adjustable between 600 – 1,800 mA for each channel

- Max. output power 85 W

- Up to 89 % efficiency

- Power input on stand-by < 0.5 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Low profile metal casing with white cover

- Type of protection IP20

Interfaces

- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION V2)

- proportionSWITCH

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (DALI) or with resistor plug (I-SELECT 2)

- Constant light output function (CLO)

- proportionSWITCH with pre defined scenes (split between different channel scenes)

- switchDIM and proportionSWITCH with memory function

- Power-up fading and fade2zero

- Configurable via DALI

- Protective features (overtemperature, short-circuit, overload, no-load, reduced surge amplification)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses

- Flexible configuration via DALI and I-SELECT 2

Typical applications

- For linear/area lighting in office and health care applications

- Direct and indirect lighting application

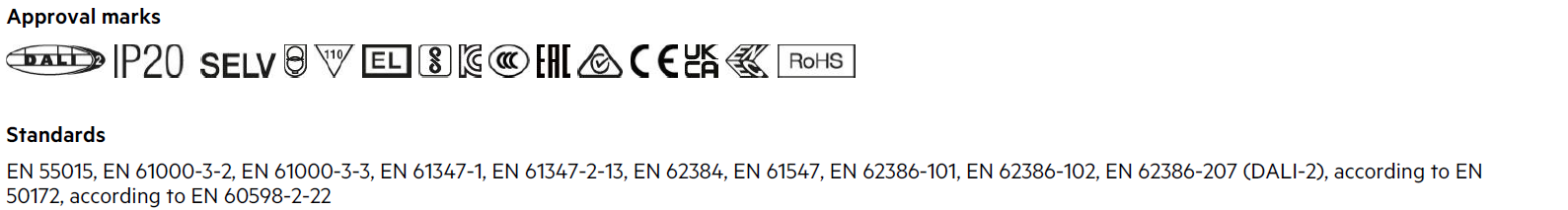

Approval marks and Standards

Dimension and Ordering data

Remark
