Tridonic LED Driver LCI 150W 250-1050mA o4a NF h28 EXC4 28004037

Product description

- Constant current built-in Driver for LED, particularly suitable for industrial applications in tough environments with

elevated ambient temperatures such as warehouses or factories

- Dimming range 1 to 100 %

- For luminaires of protection class I and protection class II

- Output current adjustable between 250 – 1,050 mA

- Max. output power 150 W

- Suitable for mains voltage peaks (burst/surge) up to 4 kV

- Expanded temperature range of -40 ... +80 °C

- Nominal lifetime up to 100,000 h

- 8 years guarantee

Housing properties

- White slim metal casing

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)

- Terminal blocks: 0° push terminals

Functions

- Constant light output function (CLO)

- Intelligent Temperature Guard (overtemperature protection)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC, DALI)

- Application-oriented operating window for maximum compatibility

- Extended vibration damping

- Increased safety through robust design and advanced testing under extreme test conditions

- High reliability through the selection of exclusive components

Typical applications

- For linear/area lighting in industry applications

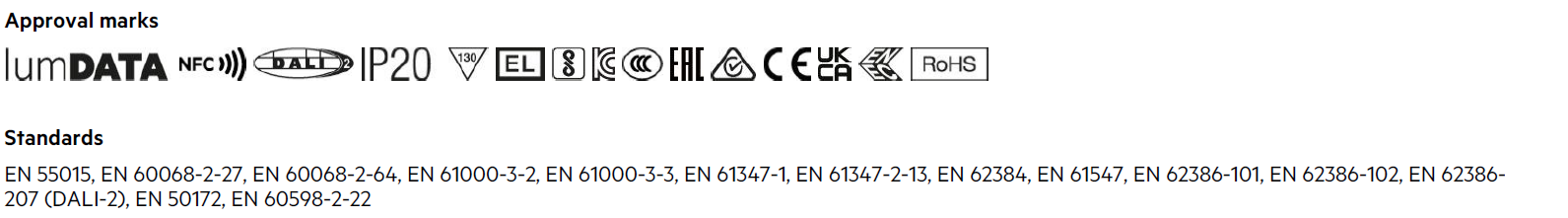

Approval marks and Standards

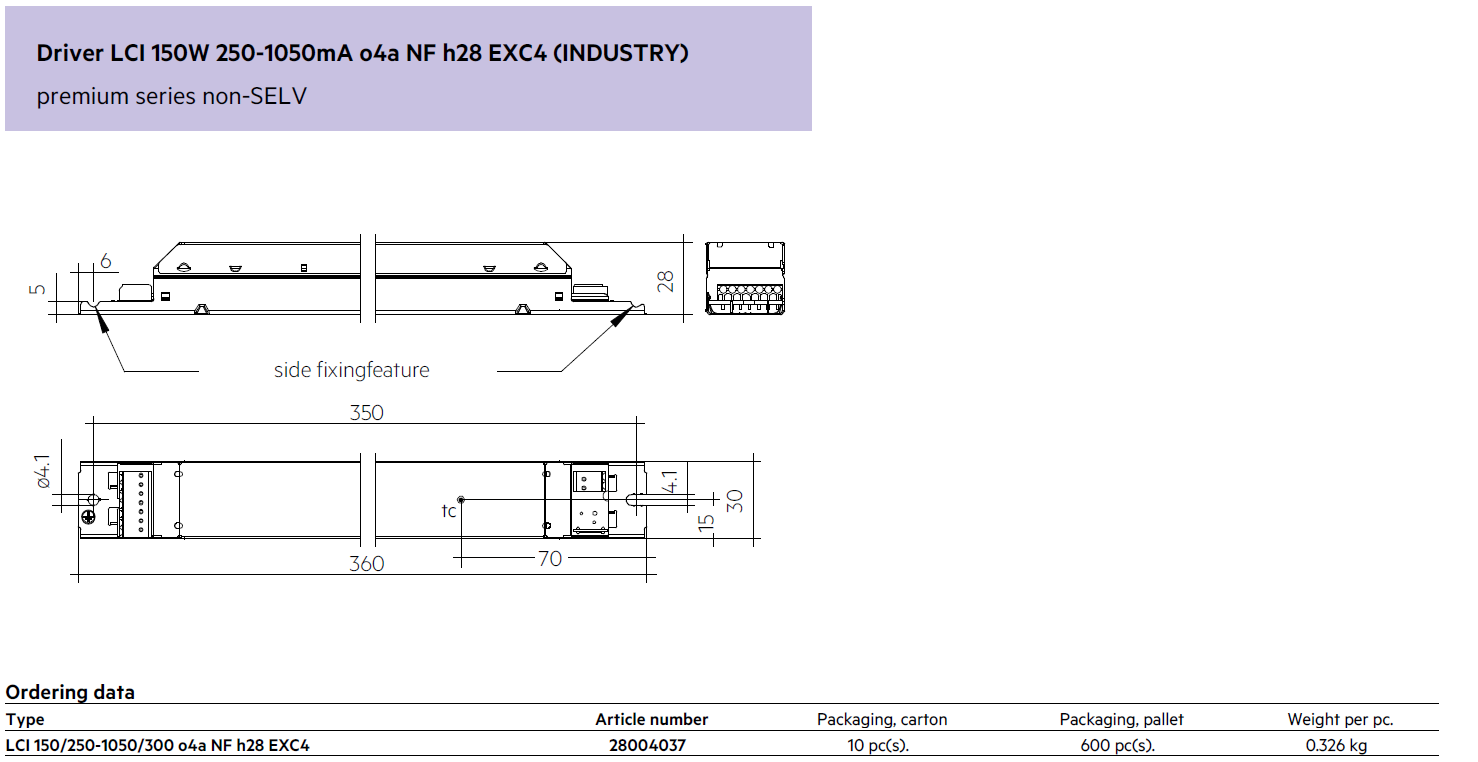

Dimension and Ordering data

Remark

LCI 75/125-550/300 o4a NF h28 EXC4       28004034

LCI 105/200-850/300 o4a NF h28 EXC4     28004035

LCI 105/200-850/300 pD NF h28 PRE4      28004036

LCI 150/250-1050/300 o4a NF h28 EXC4   28004037

LCI 150/250-1050/300 pD NF h28 PRE4    28004038

LCI 220/500-1400/300 pD NF h28 PRE4    28004039

Any question,please feel free to contact with us
