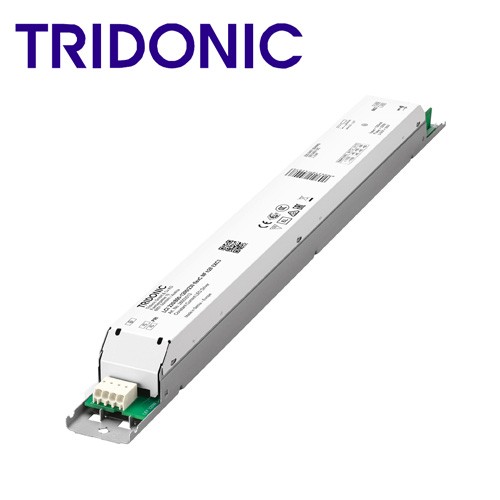

Tridonic LED Driver LCI 220W 800-1200mA flexC NF h28 EXC3 28003513

Product description

- Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with

elevated ambient temperatures such as cold warehouses or factories

- For class I luminaires

- Output current adjustable between 800 – 1,200 mA

- Max. output power 220 W

- Suitable for mains voltage peaks (burst/surge) up to 4 kV

- Expanded temperature range of -40 ... +80 °C

- Nominal lifetime up to 80,000 h (at ta 70 °C)

- 5 years guarantee

Housing properties

- White slim metal casing

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- Terminal blocks: 0° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC)

- Intelligent Temperature Guard (overtemperature protection)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC)

- Application-oriented operating window for maximum compatibility

- Extended vibration damping

- Increased safety through robust design and advanced testing under extreme test conditions

- High reliability through the selection of exclusive components

Typical applications

- For linear/area lighting in industry applications

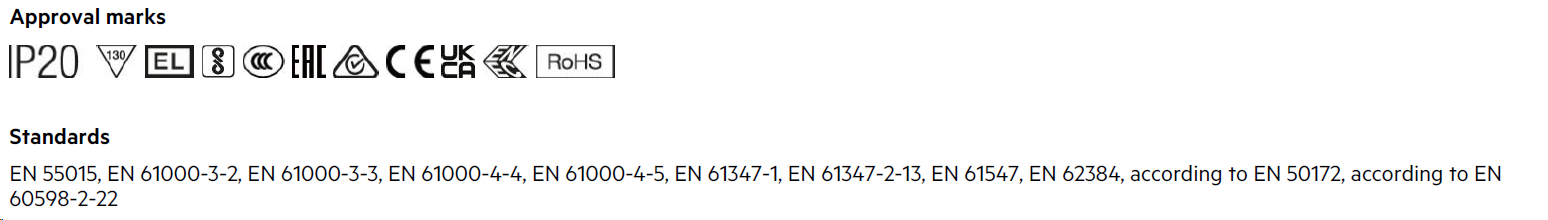

Approval marks and Standards

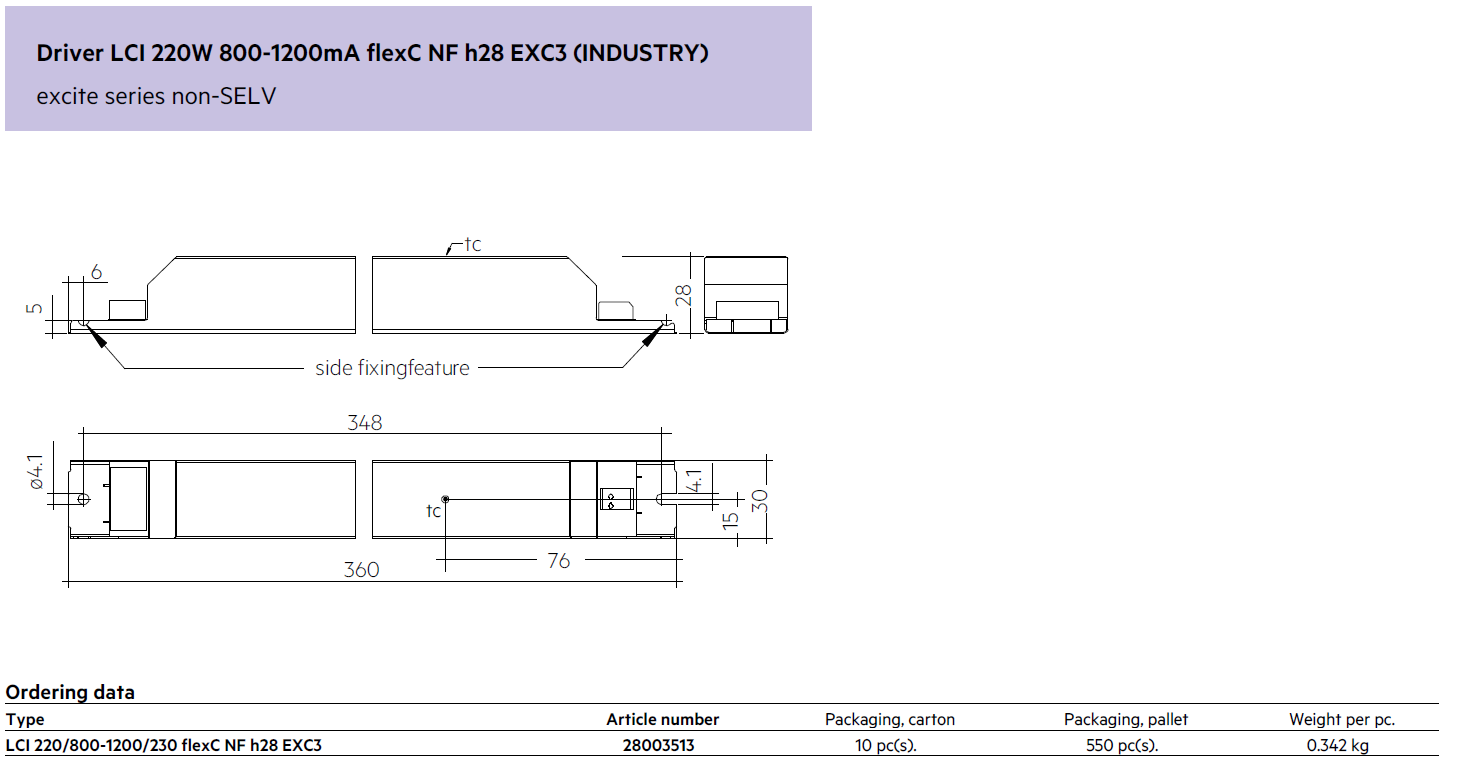

Dimension and Ordering data

Remark

LC 150W 200-1050mA IND sl EXC                 28000691

LC 150W 200-1050mA sl EXC                       28001698

LCI 75/100-700/250 flexC NF lp EXC3           87500919

LCI 75/250-500/230 flexC NF h21 EXC3        28003510

LCI 105/250-1050/300 flexC NF lp EXC3       87500920

LCI 105/350-600/230 flexC NF h21 EXC3      28003511

LCI 150/500-850/230 flexC NF h28 EXC3      28003512

LCI 220/800-1200/230 flexC NF h28 EXC3    28003513
