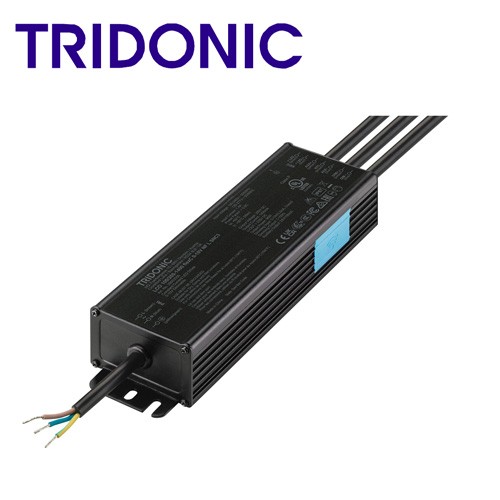

Tridonic LED Driver LCO 100W 200–1400mA flexC 0-10V NF L SNC3 28003556

Product description

- Constant current LED driver

- Tested acc. to salt spray test (ISO 9227)

- Dimmable via 0 ... 10 V interface (incl. stand-by)

- Dimming range 1 to 100 %

- Adjustable output current between 200 and 1,400 mA with NFC

- Max. output power 100 W

- Up to 88 % efficiency

- Nominal lifetime up to 50,000 h

- 5 years guarante

Housing properties

- Casing: metal, black

- Type of protection IP67 and IP66

Functions

- Adjustable output current in 1-mA-steps (NFC)

- AUX output

- Fade-off time programmable

- Configurable external temperature management (ETM)

- Protective features (overtemperature, short-circuit, overload, noload)

Benefits

- Operating window for maximum compatibility

- Added energy savings with dimming via 0 .... 10 V interface

- Configurable via NFC

- Tailor your dimming response with either Linear, Logarithmic or Square Dimming Curves

Typical applications

- For parking lot, high bay, street and road applications

- For linear or area lighting in industry applications

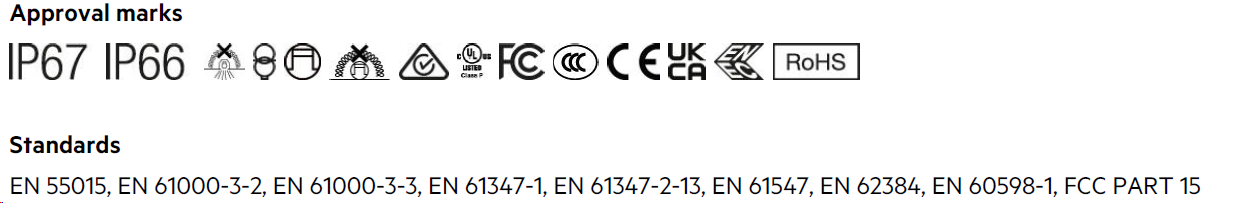

Approval marks and Standards

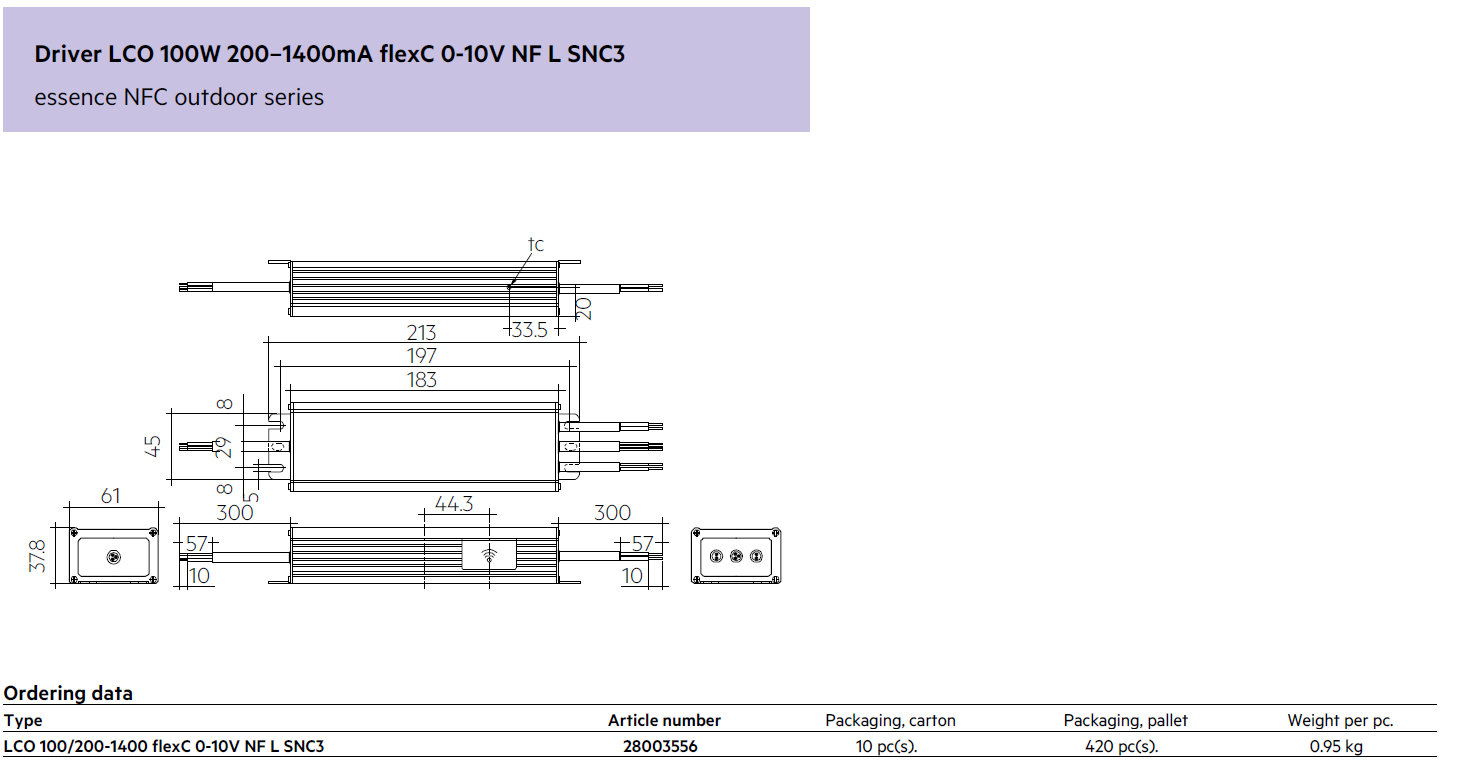

Dimension and Ordering data

Remark

LCO 75/200-1400 flexC 0-10V NF L SNC3     28003555

LCO 100/200-1400 flexC 0-10V NF L SNC3   28003556

LCO 150/200-1400 flexC 0-10V NF L SNC3   28003557

LCO 200/200-1400 flexC 0-10V NF L SNC3   28003558

LCO 240/200-1400 flexC 0-10V NF L SNC3   28003559

LCO 300/200-1400 flexC 0-10V NF L SNC3   28003560
