Tridonic LED Driver LCO 200W 200–1050mA 355V NF C ADV3 87500827

Product description

- Dimmable built-in constant current outdoor LED driver

- Dimming range 5 – 100 % (min. 10 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Output current adjustable between 200 – 1,050 mA via NFC or ready2mains Programmer

- Max. output power 200 W

- Up to 94.5 % efficiency

- Lowest power input on stand-by < 0.16 W

- Nominal lifetime of 100,000 h and 8 years guarantee

Interfaces

- Near field communication (NFC)

- ready2mains (configuration via mains)

- U6Me2 (configuration of chronoSTEP via mains and ready2mains Programmer)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC, ready2mains)

- Programmable chronoSTEP: times and levels (NFC, U6Me2)

- Dimming through mains voltage (inputDIM)

- Enhanced constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, noload, input voltage range, reduced surge amplification)

- Intelligent Temperature Guard (ITG)

- Intelligent Voltage Guard Plus (IVG+)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC, ready2mains™) or U6Me2 programmer

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface and ready2mains

- High overvoltage protection: up to 10 kV asymmetric (protection class I and II)

Typical applications

- Road, street and industry

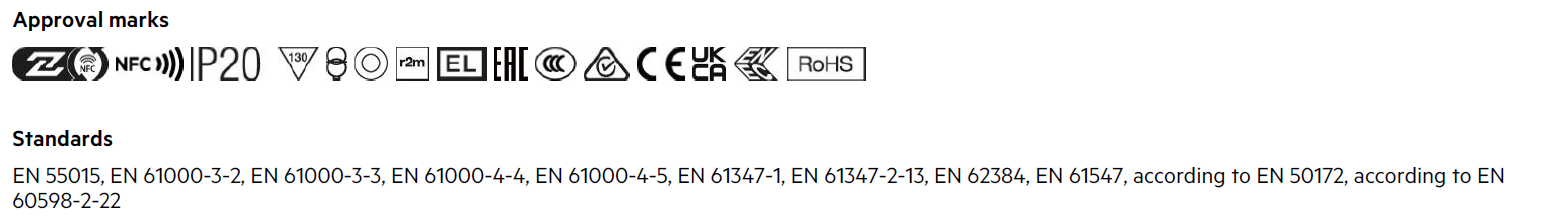

Approval marks and Standards

Dimension and Ordering data

Remark

LCO 14/100-500/38 NF C ADV3         87500821

LCO 24/200-1050/39 NF C ADV3       87500822

LCO 40/200-1050/64 NF C ADV3       87500823

LCO 60/200-1050/100 NF C ADV3     87500824

LCO 90/200-1050/165 NF C ADV3     87500825

LCO 135/200-1050/220 NF C ADV3   87500826

LCO 200/200-1050/355 NF C ADV3   87500827
