30mm Ultra-Slim 1U Profile | 48V DC Output | 2.1A Rated Current | 200% Peak Power | CE / UL / TUV Certified

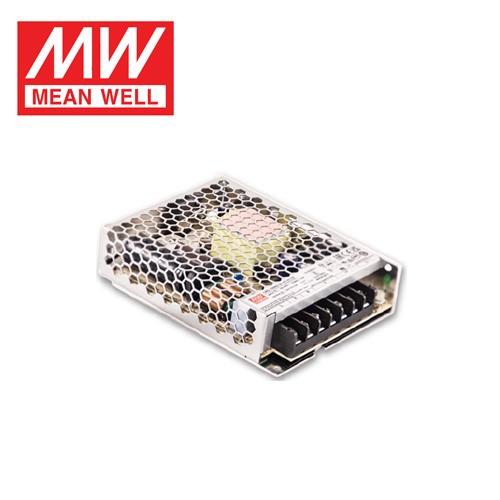

The LRS-100N2-48 is the 48V output model in MEAN WELL's LRS-100N2 series of 100W single-output enclosed industrial power supplies. Delivering 2.1A at 12V DC with 100.8W rated power, this model is optimized for low-voltage industrial control circuits, LED lighting systems, and automation equipment requiring a stable 12V rail.
Like all LRS-100N2 models, the LRS-100N2-48 accepts 85~264VAC universal AC input and supports 120~373VDC input. It features the series' signature 200% peak power capability—delivering up to 201.6W momentarily to handle motor inrush and capacitive load startup without triggering protection circuits. This makes it particularly effective in 48V industrial systems with frequent start/stop cycles.
The 48V output is the most commonly used voltage for PLC controllers, relay logic, sensor networks, LED strip lighting, and small DC motors. With 2.1A of continuous current and 200% peak headroom, the LRS-100N2-48 can handle demanding loads that would trip lesser power supplies.
The LRS-100N2-48 is backed by TUV BS EN/EN62368-1, UL62368-1, BS EN/EN61558-1/-2-16, and GB4943.1 (CQC) certifications, rated for operation at altitudes up to 4,000 meters, and comes with a 3-year warranty.
| Model | LRS-100N2-48 |
| DC Output Voltage | 12V |
| Rated Current | 2.1A (0 ~ 2.1A) |
| Rated Power | 100.8W |
| Peak Power (200%) | 201.6W (t ≤ 5s, duty ≤ 35%) |
| Ripple & Noise (max) | 200mVp-p |
| Voltage Adjustment Range | 43.2 ~ 52.8V |
| Voltage Accuracy | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Efficiency (Typ.) | 90.5% |
| Overvoltage Protection | 55.2 ~ 64.8V (shutdown output, auto-recovery) |
| Input Voltage Range | 85~264VAC / 120~373VDC (withstands 300VAC surge for 5 seconds) |
| Frequency Range | 47~63Hz |
| AC Current (Typ.) | 2.1A / 115VAC | 1.2A / 230VAC |
| Inrush Current (Typ.) | 55A / 230VAC (cold start) |
| Leakage Current | < 0.75mA / 240VAC |
| Overload Protection | >105% rated power for >5 sec → output shutdown, auto-recovery; >200% → hiccup mode, auto-recovery |
| Short Circuit Protection | Hiccup mode, auto-recovery after fault removal |
| Operating Temperature | -30~+70°C (refer to derating curve) |
| Operating Humidity | 20~90% RH, non-condensing |
| Storage Temp / Humidity | -40~+85°C, 10~95% RH |
| Vibration Resistance | 10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes |
| Overvoltage Category | OVC III (IEC/BS EN/EN61558-1/-2-16, 4000m); OVC II (UL62368-1, 5000m) |
| MTBF | ≥ 2,802.6K hrs (Telcordia SR-332); ≥ 536.6K hrs (MIL-HDBK-217F, 25°C) |
| Dimensions | 129 × 97 × 30 mm (L×W×H) |
| Net Weight / Packaging | 0.35 kg / 40 pcs per carton / 15 kg / 0.92 CUFT |
| Safety Standards | CB: IEC62368-1, IEC61558-1, IEC61558-2-16, IEC60335-1 TUV: BS EN/EN62368-1, BS EN/EN61558-1/-2-16, BS EN/EN60335-1 UL: UL62368-1 | CQC: GB4943.1 | BSMI: CNS15598-1 EAC: TP TC 004 | BIS: IS 13252(Part1):2010 RCM: AS/NZS 61558.1/2.16, AS/NZS62368.1 |
| Withstand Voltage | I/P-O/P: 4KVAC | I/P-FG: 2KVAC | O/P-FG: 1.25KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: > 100MΩ / 500VDC / 25°C / 70% RH |
| EMC Emissions | BS EN/EN55032 (CISPR32) Class B, EN55014, EN61000-3-2, EN61000-3-3, BSMI CNS15936, EAC TP TC 020 |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2); EN55035; heavy-industry level; EAC TP TC 020 |
Looking for a different wattage in the same compact enclosed design?
