225x124x41mm Enclosed | 36V DC Output | 16.6A Rated Current | 200% Peak Power | Built-in Fan | 92% Efficiency | 3-Year Warranty

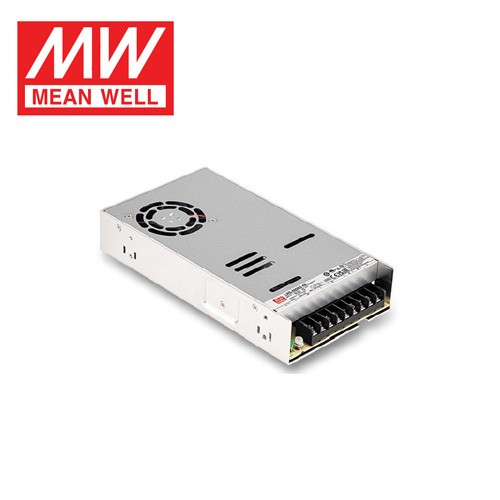

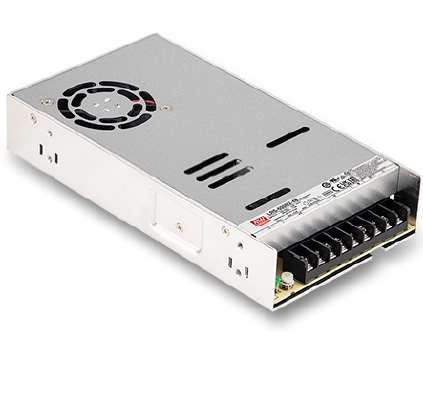

The LRS-600N2-36 is the 36V output model in MEAN WELL's LRS-600N2 series of 600W single-output enclosed industrial power supplies. Delivering 16.6A at 36V DC with 597.6W rated power and 92% efficiency - tied for highest in the LRS N2 family. This model is designed for specialized industrial equipment, communication systems, and applications requiring a higher voltage rail with best-in-class energy conversion.
Like all LRS-600N2 models, the LRS-600N2-36 uses a switchable 90~132VAC / 180~264VAC input (selected via built-in switch) and supports 255~370VDC input. It features the series' signature 200% peak power capability - delivering up to 1,195W momentarily to handle startup surges. The 36V output is commonly used in specialized industrial machinery, LED grow lights, and communication infrastructure.
At 92% peak efficiency, the LRS-600N2-36 generates the least waste heat of any LRS N2 model, making it the best choice for thermally constrained installations. The built-in DC fan with intelligent thermal control (activates at 50C, off at 40C) ensures sustained full-load operation in demanding environments.
The LRS-600N2-36 holds BS IEC/UL62368-1, BS EN/EN61558-1/-2-16, GB4943.1 (CQC), and BIS IS13252 certifications, is rated for altitudes up to 2,000 meters, and comes with a 3-year warranty. Note: OVP requires ~4 min cooldown after tripping; not EN61000-3-2 compliant for certain EU applications.
| Model | LRS-600N2-36 |
| DC Output Voltage | 36V |
| Rated Current | 16.6A (0 ~ 16.6A) |
| Rated Power | 597.6W |
| Peak Power (200%) | 1,195W (t <= 5s, duty <= 35%) |
| Ripple & Noise (max) | 360mVp-p |
| Voltage Adjustment Range | 34.2 ~ 39.6V |
| Voltage Accuracy | +/-1.0% |
| Line Regulation | +/-0.5% |
| Load Regulation | +/-0.5% |
| Efficiency (Typ.) | 92% |
| Overvoltage Protection | 41.4 ~ 48.6V (shutdown output; requires ~4 min cooldown before restart) |
| Input Voltage Range | 90~132VAC / 180~264VAC (switch-selectable); 255~370VDC (switch at 230VAC) |
| Input Surge Immunity | Withstands 300VAC surge for 5 seconds |
| Frequency Range | 47~63Hz |
| AC Current (Typ.) | 12A / 115VAC | 7.5A / 230VAC |
| Inrush Current (Typ.) | 35A / 115VAC | 60A / 230VAC (cold start) |
| Leakage Current | < 2mA / 240VAC |
| Overload Protection | >105% rated power for >5 sec -> output shutdown, auto-recovery; >200% constant current limit for >5 sec -> output shutdown, auto-recovery |
| Short Circuit Protection | Hiccup mode, auto-recovery after fault removal |
| Over-temperature Protection | Shutdown output, auto-recovery after temperature drops to safe level |
| Fan On/Off Control | RTH3 >= 50C fan on, <= 40C fan off (intelligent thermal management) |
| Operating Temperature | -20~+65C (refer to derating curve) |
| Operating Humidity | 20~90% RH, non-condensing |
| Storage Temp / Humidity | -40~+85C, 10~95% RH |
| Vibration Resistance | 10~500Hz, 5G, 10 min/cycle, 60 min each for X, Y, Z axes |
| Overvoltage Category | OVC III (EN61558, EN50178, EN60664-1, EN62477-1; up to 2,000m) |
| MTBF | >= 1,336.2K hrs (Telcordia SR-332); >= 230.8K hrs (MIL-HDBK-217F, 25C) |
| Dimensions | 225 x 124 x 41 mm (LxWxH) |
| Net Weight / Packaging | 0.95 kg / 12 pcs per carton / 12.4 kg / 0.77 CUFT |
| Safety Standards |
BS IEC/UL62368-1, BS EN/EN61558-1, BS EN/EN61558-2-16 CQC: GB4943.1 | BSMI: CNS15598-1 | EAC: TP TC 004 BIS: IS 13252(Part1):2010 / IEC60950-1:2005 (except 48V) Design refers to: AS/NZS 61558.1/2.16, AS/NZS 62368.1 |
| Withstand Voltage | I/P-O/P: 3.75KVAC | I/P-FG: 2KVAC | O/P-FG: 0.5KVAC |
| Insulation Resistance | I/P-O/P, I/P-FG, O/P-FG: > 100Mohm / 500VDC / 25C / 70% RH |
| EMC Emissions |
BSMI CNS15936, EAC TP TC 020 Note: Not compliant with EN61000-3-2 harmonic current limits for certain EU applications. |
| EMC Immunity | EAC TP TC 020 |
