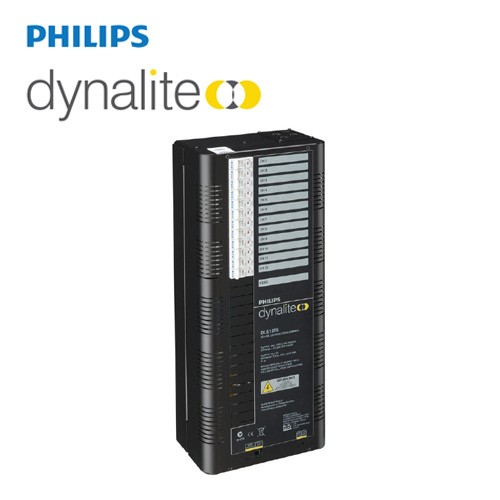

PHILIPS Dynalite DLE1205-RCBO Leading Edge Controller 913703010509

DLE1205

Wall mount direct dimming for a range of lighting loads

- Fully rated device – The combination of load capacity and sub-circuit protection delivers a superior solution for small scale

commercial applications.

- Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as

transformers.

- Naturally ventilated – Requires no forced cooling or maintenance. Soft start and voltage regulation

- technologies – Protects lamps from over voltage and dramatically improves lamp life, reducing maintenance costs.

- Diagnostic functionality – Device Online/Offline status reporting.

- User controls – Incorporates service override switch and three phase indicator LED. Hardware bypass switches are provided for

each channel.

- Option available – RCBO earth leakage and overload protection on each channel.

Dimension

Ordering Code

913703002009   DLE220

913703006009   DLE410

913703006709   DLE410-RCBO

913703010009   DLE1205

913703010509   DLE1205-RCBO

913703014009   DLE1210GL

913703014409   DLE1210GL-RCBO

913703022009   DTE1210

913703022609   DTE1210-RCBO

913703016009   DLE1220GL-S

913703016609   DLE1220GL-S-RCBO

913703016609   DLE1220GL-S-RCBO

Any question,please feel free to contact with us
