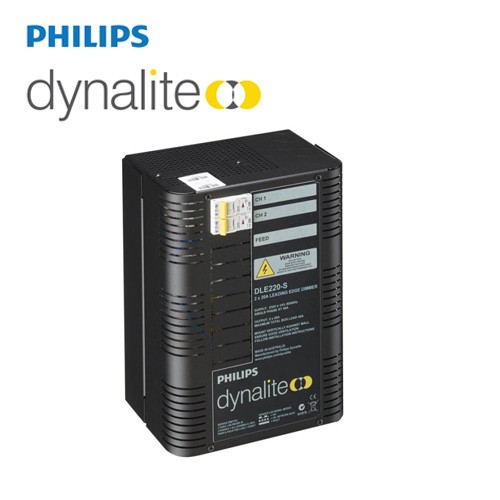

PHILIPS Dynalite DLE220 Leading Edge Controller 913703002009

DLE220

- Large load capability — Complements multi-channel dimmers by providing extra channels where additional capacity is required.

- Reliable control — Suitable for applications where lamp life is critical, such as where lamp replacement is difficult or expensive.

- Interference suppression — Iron powder core toroidal choke lessens effects of interference from other equipment, such as

transformers.

- Naturally ventilated — Requires no forced cooling or maintenance.

- Soft start and voltage regulation technologies — Protects lamps from over voltage and dramatically improves lamp life, reducing

maintenance costs.

- Diagnostic functionality — Device Online/ Offline status reporting.

- User controls — Incorporates service override switch - all channels to 100% and a diagnostic LED.

- Options available — Including an additional RS485 DyNet/DMX512 port, circuit breaker trip reporting or neutral disconnect

breakers.

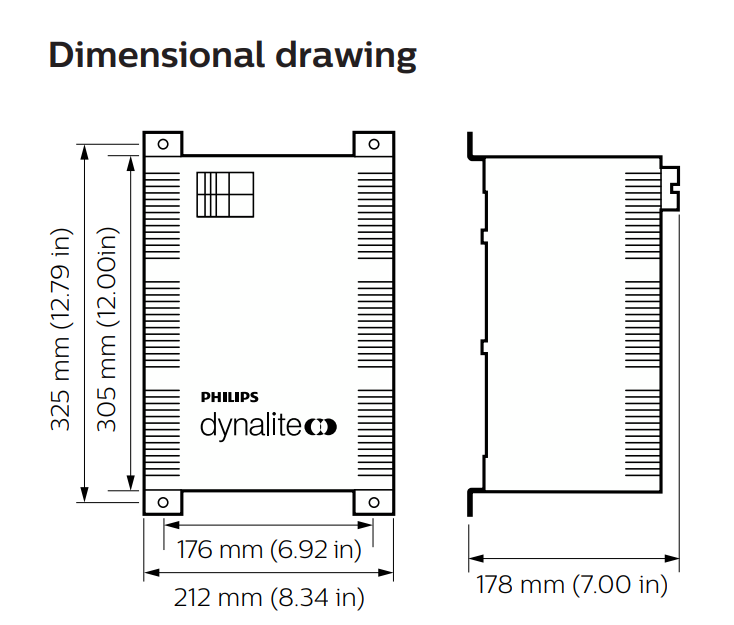

Dimension

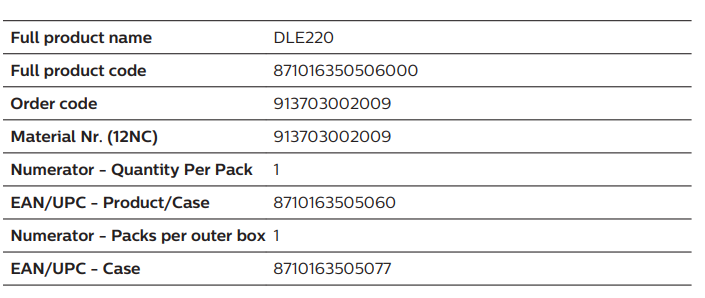

Ordering Code

913703002009   DLE220

913703006009   DLE410

913703006709   DLE410-RCBO

913703010009   DLE1205

913703010509   DLE1205-RCBO

913703014009   DLE1210GL

913703014409   DLE1210GL-RCBO

913703022009   DTE1210

913703022609   DTE1210-RCBO

913703016009   DLE1220GL-S

913703016609   DLE1220GL-S-RCBO

913703016609   DLE1220GL-S-RCBO

Any question,please feel free to contact with us
