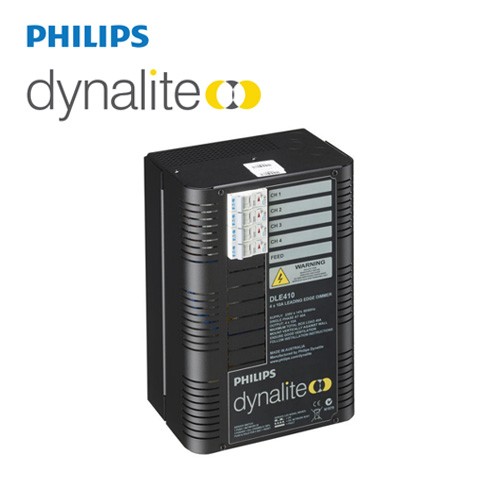

PHILIPS Dynalite DLE410-RCBO Leading Edge Controller 913703006709

DLE410

- Ideal for applications where multiple user settings are required -Provides robust control in situations where a small number

of lighting circuits require control.

- Interference suppression- Iron powder core toroidal choke lessens effects of interference from other equipment, such

as transformers.

- Naturally ventilated -Requires no forced cooling or maintenance.

- Soft start and voltage regulation technologies -Protects lamps from over voltage and dramatically improves lamp life, reducing

maintenance costs.

- Diagnostic functionality一Device Online/Offline status reporting.

- User controls - Incorporates service override switch - all channels to100%, a diagnostic LED and hardware bypass switches for

each channel.

- Options available - Including an additional RS485 DyNet/DMX512 port, circuit breaker trip reporting, double pole circuit breakers

or earth leakage and overload protection on each channel.

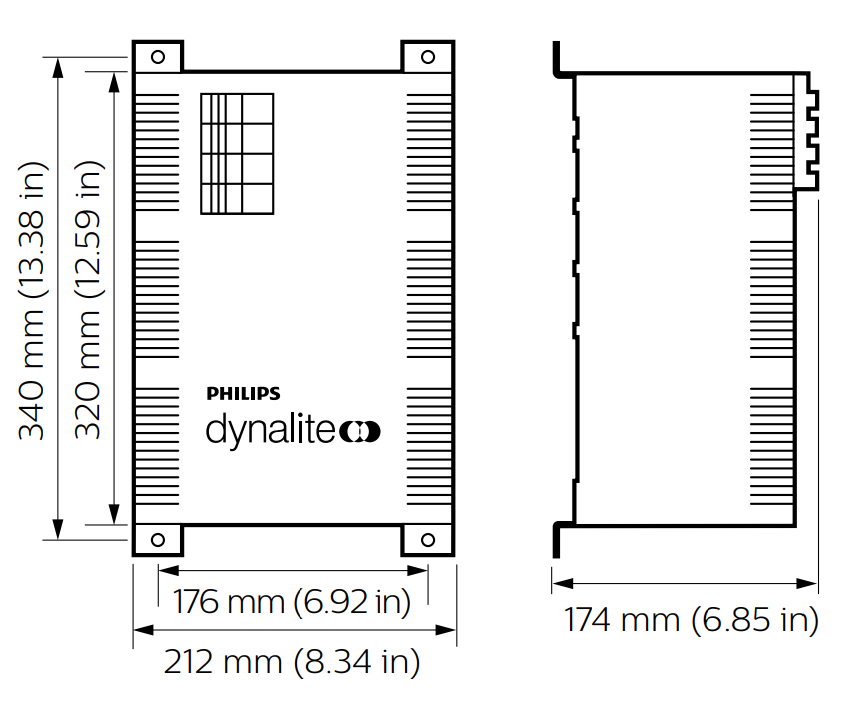

Dimension

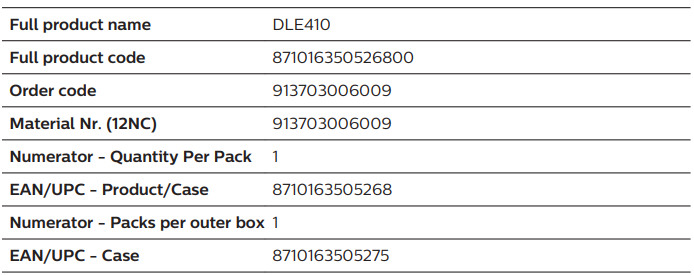

Ordering Code

913703002009   DLE220

913703006009   DLE410

913703006709   DLE410-RCBO

913703010009   DLE1205

913703010509   DLE1205-RCBO

913703014009   DLE1210GL

913703014409   DLE1210GL-RCBO

913703022009   DTE1210

913703022609   DTE1210-RCBO

913703016009   DLE1220GL-S

913703016609   DLE1220GL-S-RCBO

913703016609   DLE1220GL-S-RCBO
