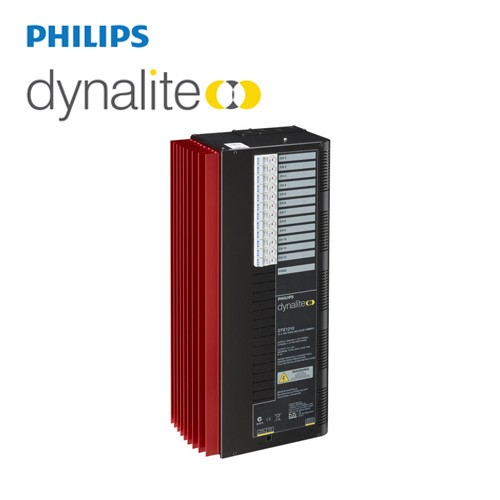

PHILIPS Dynalite DTE1210 Leading Edge Controller 913703022009

DTE1210

Controls a wide range of dimmable electronic transformers

- Operates from three phase supply – Using a three phase supply when connected to a three circuit track permits the track to be

loaded to maximum rating.

- Dual communication ports – Enable direct DMX512 integration with theatrical systems

- Voltage regulation and soft start technologies – Protects lamps and extends life dramatically, minimizing lamp replacement and

ongoing maintenance requirements.

- Naturally ventilated – Integral ventilation in the housing of the unit means that no forced cooling is required, thereby reducing

maintenance.

- Interface to other devices – Incorporates multipurpose programmable dry contact and analog inputs for interfacing to other

devices.

- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic

function processing.

- Options available – Including earth leakage and overload protection on each channel, and three pole circuit breakers.

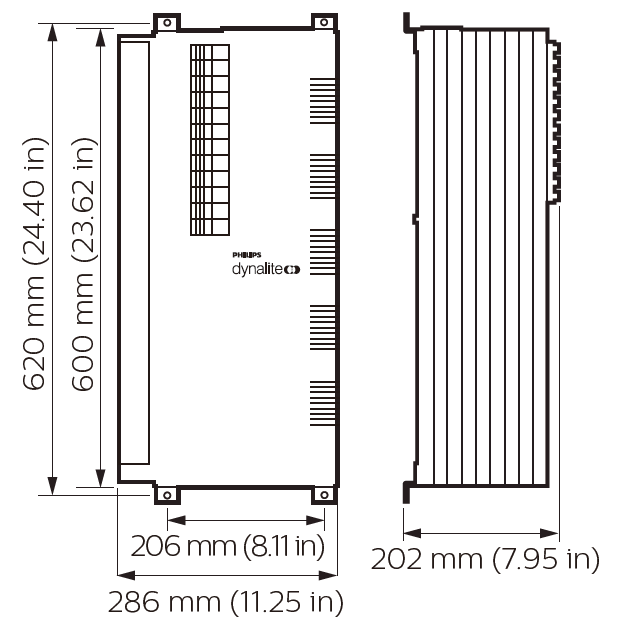

Dimension

Ordering Code

913703002009   DLE220

913703006009   DLE410

913703006709   DLE410-RCBO

913703010009   DLE1205

913703010509   DLE1205-RCBO

913703014009   DLE1210GL

913703014409   DLE1210GL-RCBO

913703022009   DTE1210

913703022609   DTE1210-RCBO

913703016009   DLE1220GL-S

913703016609   DLE1220GL-S-RCBO

913703016609   DLE1220GL-S-RCBO
