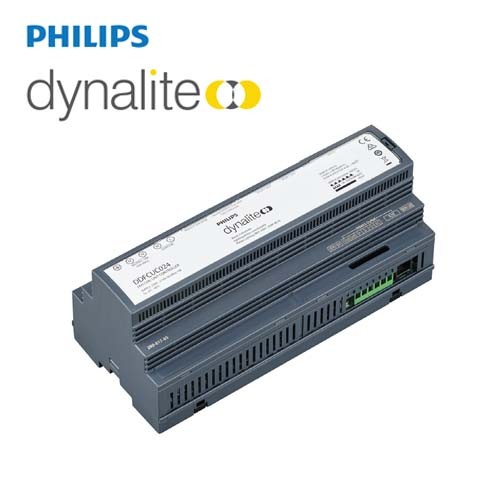

PHILIPS Dynalite Integration Devices DDFCUC024 913703081009

DDFCUC024

Direct control of air conditioning

• Triac outputs – Provided for controlling hot and cold water valves.

• Relay outputs – Provided for driving fan motors.

• High capacity relay – Provided for use with electrical heaters or power outlet switching.

• Inputs for resistive temperature sensors – Allows the device to use data from a local temperature sensor or a networked

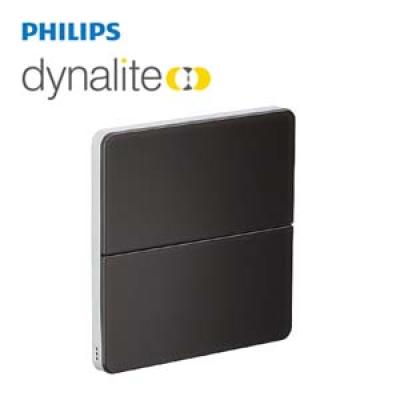

temperature sensor, such as an Antumbra user interface.

• Programmable auxiliary inputs – Provided for use with peripheral devices including smoke detectors, motion detectors, window

open/close sensors, airflow detectors, drip trays, dirty air filters and hot water on cold valve.

• Networkable – Can be networked with other equipment including Philips Dynalite user interfaces, via an on board RS-485 DyNet

port.

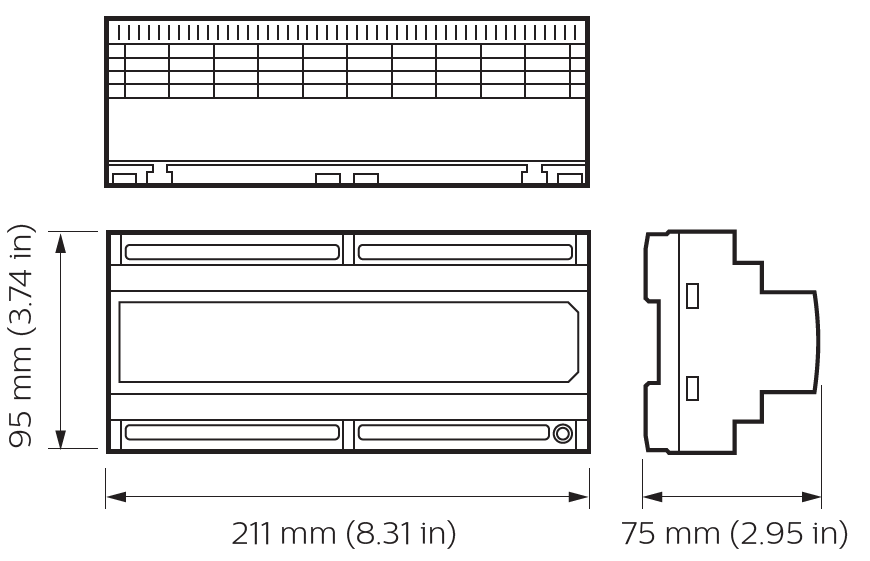

Dimension

Ordering Code

913703081009  DDFCUC024

913703081909  DDFCUC010

913703081109  DDMIDC8

913703081209  DDNG485

913703081309  DDNI485

913703080509  DDNG-KNX

913703081809  DDNG232

913703013809  PDEG

913703240009  PDEB
