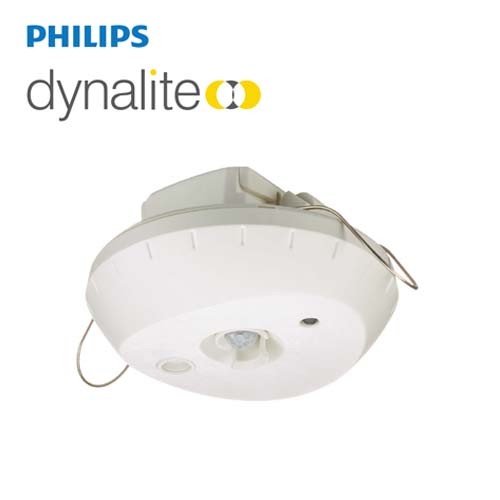

PHILIPS Dynalite Multifunction Sensor DUS360CS-D 913703023909

DUS360CS-D

Surface mount 360° ceiling sensor

• DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.

• Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.

• Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This

prevents nuisance detection from adjacent doorways or corridors.

• Ambient light level regulation – In applications where it is critical to maintain precise light levels, the PE function reads ambient

levels and adjusts artificial light accordingly.

• Powered directly by the DALI network – Eliminates the need for additional network field wiring.

• Multiple mounting options – Can be partially recessed or surface-mounted using the supplied butterfly clips or junction box.

• Daylight harvesting mode – Delivers automatic energy savings.

• Infrared receive capability – Manually adjust light levels using a hand-held remote control, via the inbuilt IR receiver.

• Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.

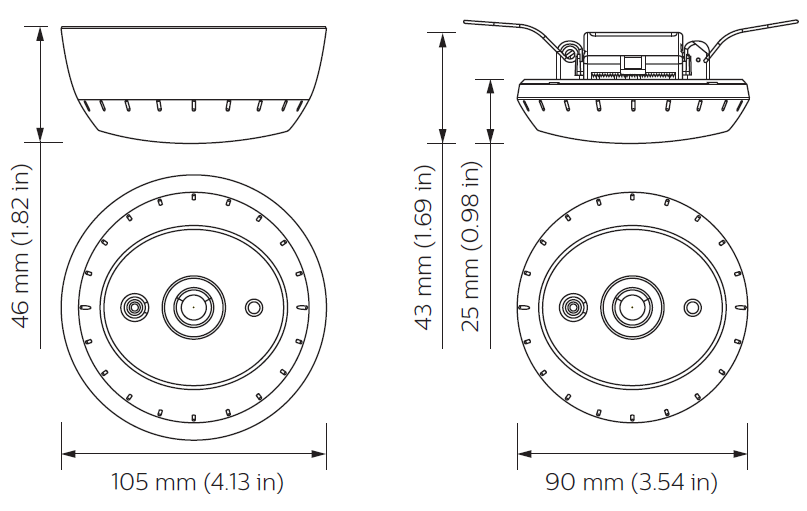

Dimension

Ordering Code

913703213009  DUS360CR-D

913703023909  DUS360CS-D

913703015409  DUS90-AHB-D

913703015509  DUS90-WHB-D

913703015609  DUS30-LHB-D

913703338209  DUS180WR
