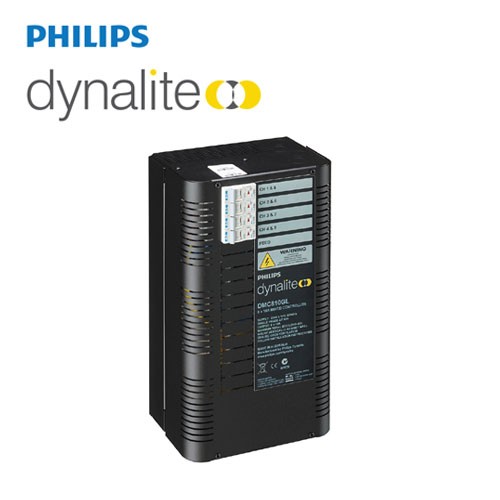

PHILIPS Dynalite Multipurpose Controller DMC810GL 913703028009

DMC810GL

Combining leading edge and signal dimming control

• Four channels for control of dimmable loads – Leading edge phase control for use with incandescent, neon, leading edge

electronic and iron core transformers.

• Four signal control outputs – Selectable to 1-10 VDC, DSI and DALI broadcast for control of lamp drivers.

• Four switched outputs – Signal control outputs can operate in tandem with, or separately from, switched outputs.

• Interference suppression – Iron powder core toroidal choke lessens effects of interference from other equipment, such as

transformers.

• Naturally ventilated – Requires no forced cooling or maintenance.

• Diagnostic functionality – Device Online/Offline status reporting.

• User controls – Incorporates service override switch – all channels to 100% and a diagnostic LED.

• Options available – Including an additional RS-485 DyNet/DMX512 port or earth leakage and overload protection on each channel.

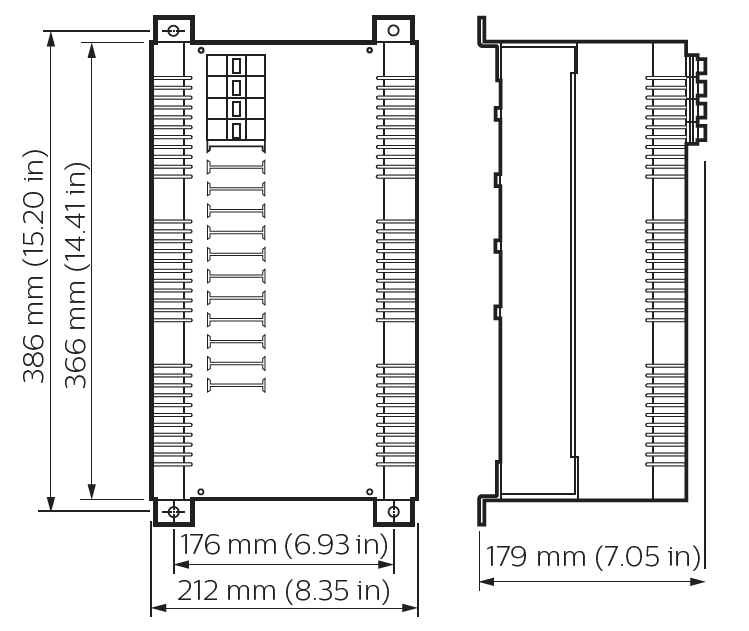

Dimension

Ordering Code

913703028009  DMC810GL
