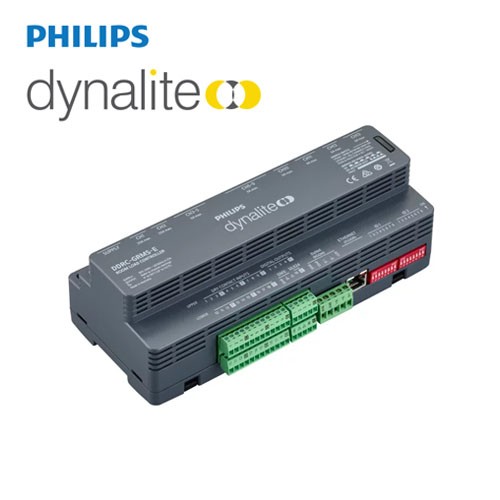

PHILIPS Dynalite Relay Controllers DDRC-GRMS-E 913703334009

DDRC-GRMS-E

Room controller and Ethernet bridge in one compact device

• Single box solution – Compact design allows for small installation footprint and reduced cabling for a simpler and faster

installation.

• Inbuilt Ethernet port – Directly connecting to a site’s Ethernet LAN, the device can securely report its status and pass network

messages via the Dynalite PDDEG-S*.

• Pre-programmed – Can be preloaded with a bespoke configuration to immediately meet the project’s needs from the moment it

powers up.

• Powerful processor – The internal processor allows the device to perform advanced scripted functions and provide automated

intelligent responses to multiple inputs.

• Mixture of switching relays – Supports a combination of different relay ratings and types for a perfect blend of performance and

cost-effectiveness.

• 18 dry contact inputs – Allows simple integration with third-party devices and systems.

• 64 channel DMX output – Adds color and dimming control for a touch of theatrics.

• UL924 Input – Integrates seamlessly with compatible emergency systems.

• Four 12 V digital outputs – Designed to drive room status indicator LEDs in common cathode configuration, and trigger additional

devices such as doorbells.

• 300 mA DyNet output – Directly support the requirements of DyNet devices without the need for an additional network power

supply.

• Unique LAN addressing – Two banks of DIP switches allow the installer to manually set the device’s network identification.

* Each PDDEG-S supports encrypted communication with up to 25 controllers

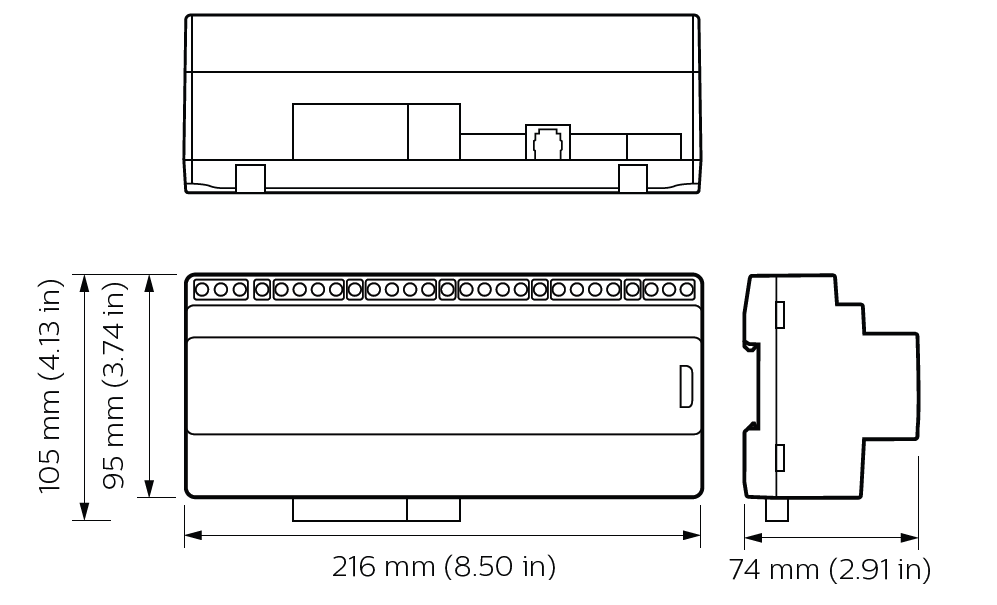

Dimension

Ordering Code

913703334009  DDRC-GRMS-E

913703244609  DDRC420FR V2

913703035209  DDRC810DT-GL

913703243009  DDRC1220FR-GL-V3
