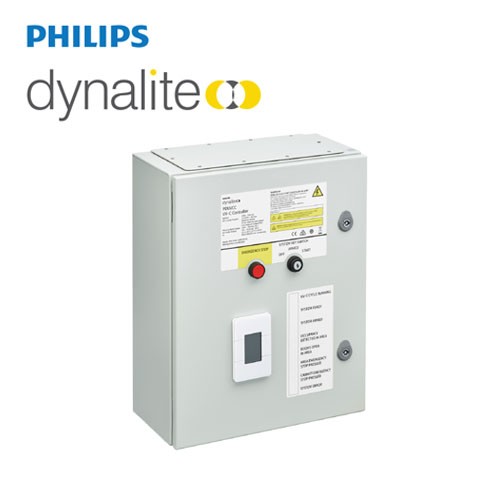

PHILIPS Dynalite Relay Controllers PDUVCC-30 913703074309

PDUVCC

Control solution for UV-C surface disinfection systems

• Single-box solution – Assembled, programmed, and tested in the factory to provide complete out-of-the-box functionality.

• Integrated AntumbraDisplay – Allows authorized users to adjust UV-C disinfecting dosage and monitor lamp life management.

Includes multi-language support.

• Physical key switch protection – Helps to ensure that only authorized users can modify settings or activate the system.

• External control inputs – Robust, reliable connection to door switches, emergency shutoff buttons, and vacancy confirmation

checkpoints.

• Motion sensor integration* – Designed to work with Dynalite's best-in-class network sensors to automatically shut down the UV

lamps if motion is detected in the disinfection area.

• System status indicators – Eight clearly labelled LEDs on the front of the enclosure show the device's status at a glance.

• Onboard event logging – All system events are logged and timestamped for reporting.

• Ethernet connectivity – Enables secure network access to configuration and event logs via System Manager head-end software.

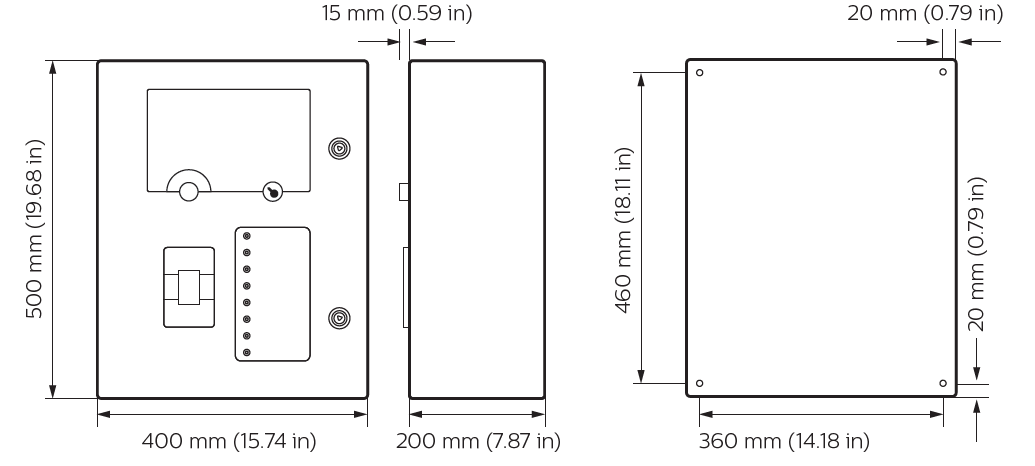

Dimension

Ordering Code

913703073709  PDUVCC-10

913703073809  PDUVCC-20

913703074309  PDUVCC-30
