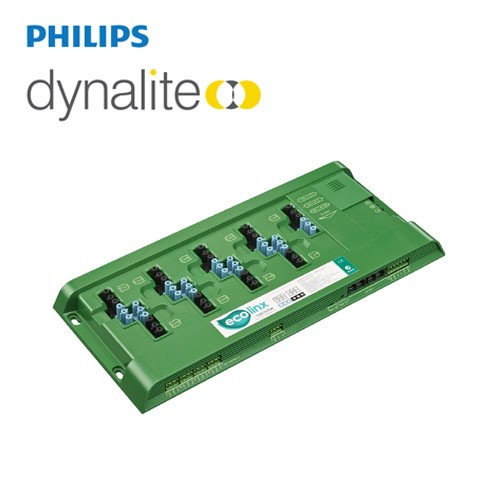

DBC905
Easy-to-install controller with flexible mounting options
• Multiple protocols supported – Each control output supports DALI broadcast, DALI addressed, 1-10 V and DSI protocols.
• Built-in energy savings – Control signals can be programmed to operate in tandem with five internal switched outputs, which will
automatically isolate the power circuit when all associated channels are at 0%. This is a useful feature as DALI drivers still draw
significant power when lamps are turned off via a DALI command.
• No tools required – The device is available with connectors suited to three major modular wiring brands – CMS Electracom,
Wieland and Wago.
• Inbuilt diagnostic functionality – Includes lamp and driver failure, circuit run time tracking/lamp life, automated battery tests and
Device Online/Offline status indication.

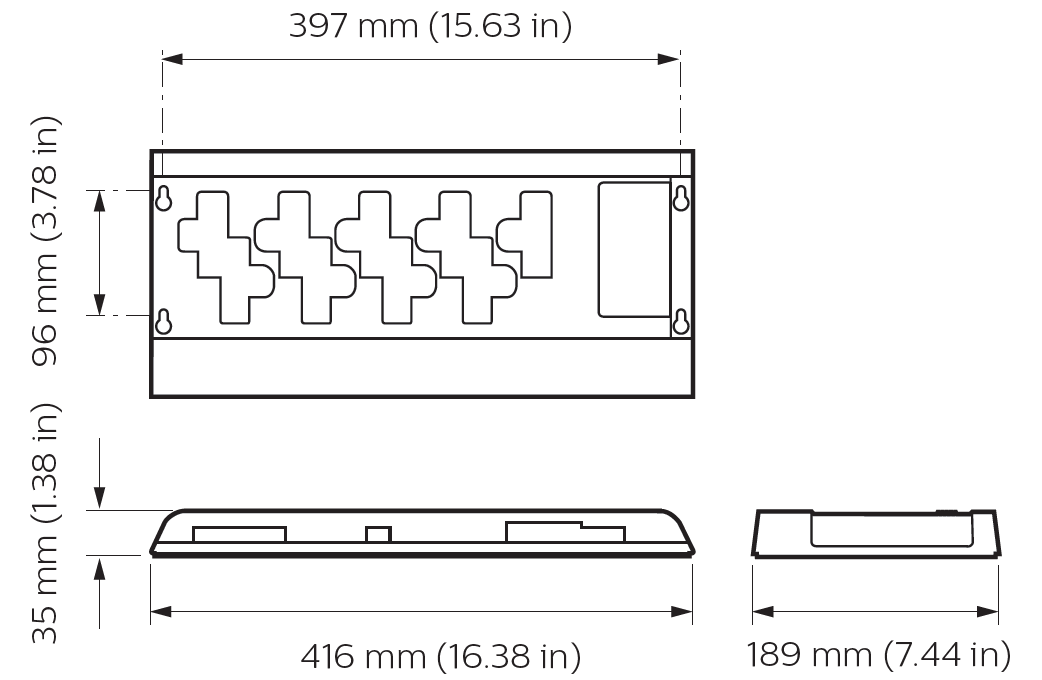

Dimension
Ordering Code
913703040009 DBC905W
913703040509 DBC905C
