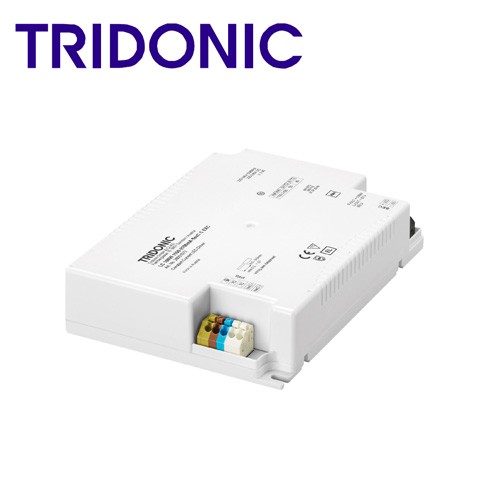

Tridonic LED Driver LC 100W 1100–2100mA flexC C EXC 28001572

Product description

- Constant current LED driver

- Adjustable output current between 1,100 and 2,100 mA via ready2mains Programmer or I-SELECT 2 plugs

- Max. output power 100 W

- Up to 92 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- ready2mains (configuration via mains)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (ready2mains, I-SELECT 2)

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

- Best energy savings due to high efficiency

- Flexible configuration via ready2mains and I-SELECT 2

Typical applications

- For downlight, spotlight and decorative applications

Approval marks and Standards

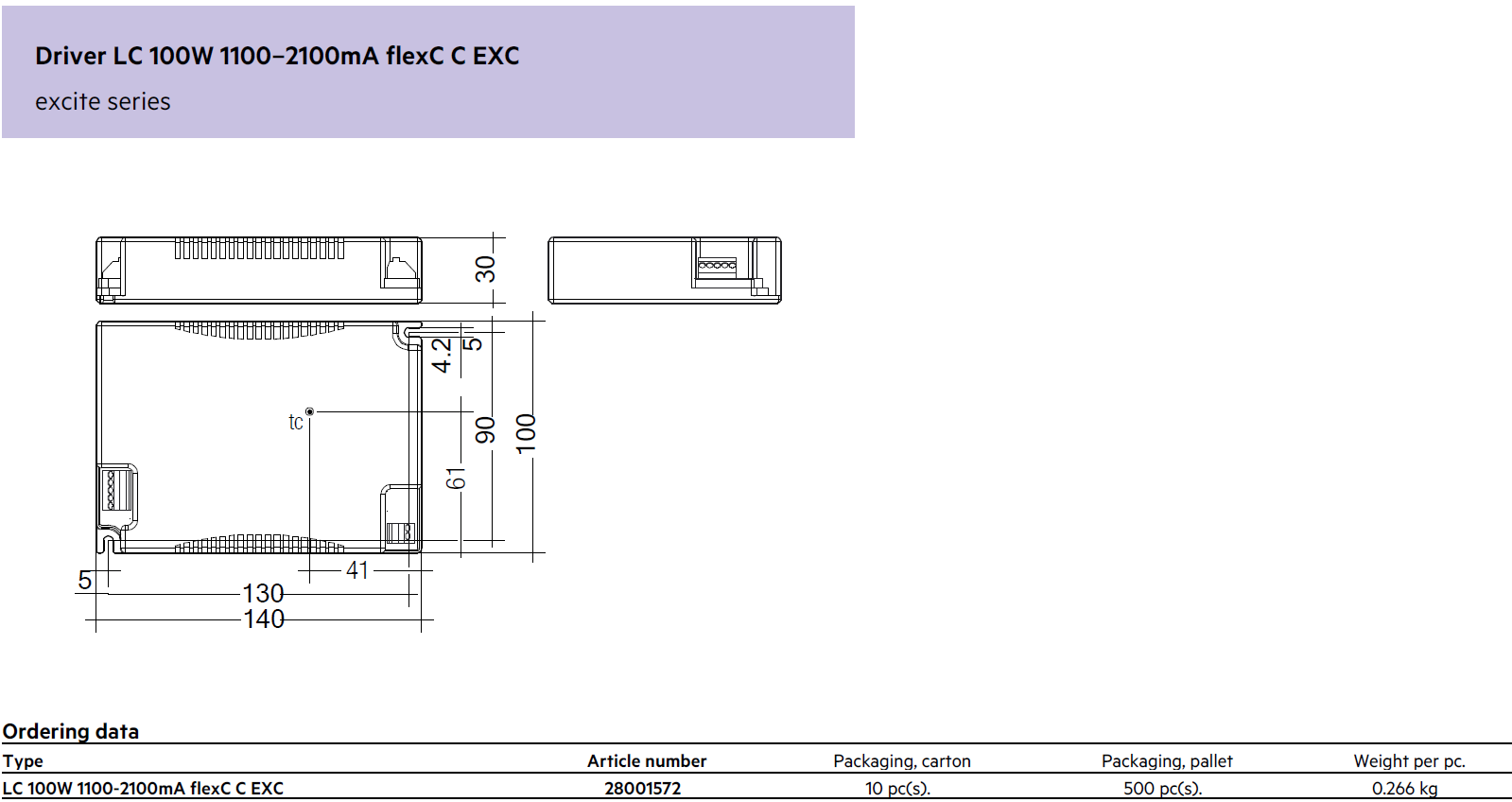

Dimension and Ordering data

Remark

LC 10W 150-400mA flexC C EXC             28000692

LC 17W 250-700mA flexC C EXC             28000693

LC 25W 350-1050mA flexC C EXC           28000694

LC 45W 500-1400mA flexC C EXC           28000695

LC 60W 900-1750mA flexC C EXC*         28000696

LC 100W 1100-2100mA flexC C EXC       28001572

LC 10W 150-400mA flexC SR EXC           28000698

LC 17W 250-700mA flexC SR EXC           28000699

LC 25W 350-1050mA flexC SR EXC         28000700

LC 45W 500-1400mA flexC SR EXC         28000701

LC 60W 900-1750mA flexC SR EXC         28000702

LC 100W 1100-2100mA flexC SR EXC     28001573

LC 10W 150-400mA flexC SC EXC          28000704

LC 17W 250-700mA flexC SC EXC          28000705

LC 25W 350-1050mA flexC SC EXC        28000706

LC 45W 500-1400mA flexC SC EXC        28000707
