Tridonic LED Driver LC 14W 100–400mA 42V bDW NF SC EXC3 28003713

Product description

- Can be integrated in Casambi systems (Casambi Ready)

- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)

- Can be either used built-in or independent with clip-on strain-relief (see accessory)

- Forms automatically a wireless communication network with up to 250 nodes

- Dimming range 1 – 100 % (min. 6 mA)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 100 – 400 mA via NFC

- Max. output power 14 W

- Up to 82 % efficiency

- Lowest power input on stand-by < 0.45 W

- Nominal lifetime up to 100,000 h

- 5 years guarantee

- We will provide security updates for the next five years after the date of purchase of this product

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- basicDIM Wireless

- Near field communication (NFC)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC)

- Enhanced constant light output function (eCLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface

Typical applications

- For downlight, spotlight and decorative applications

Approval marks and Standards

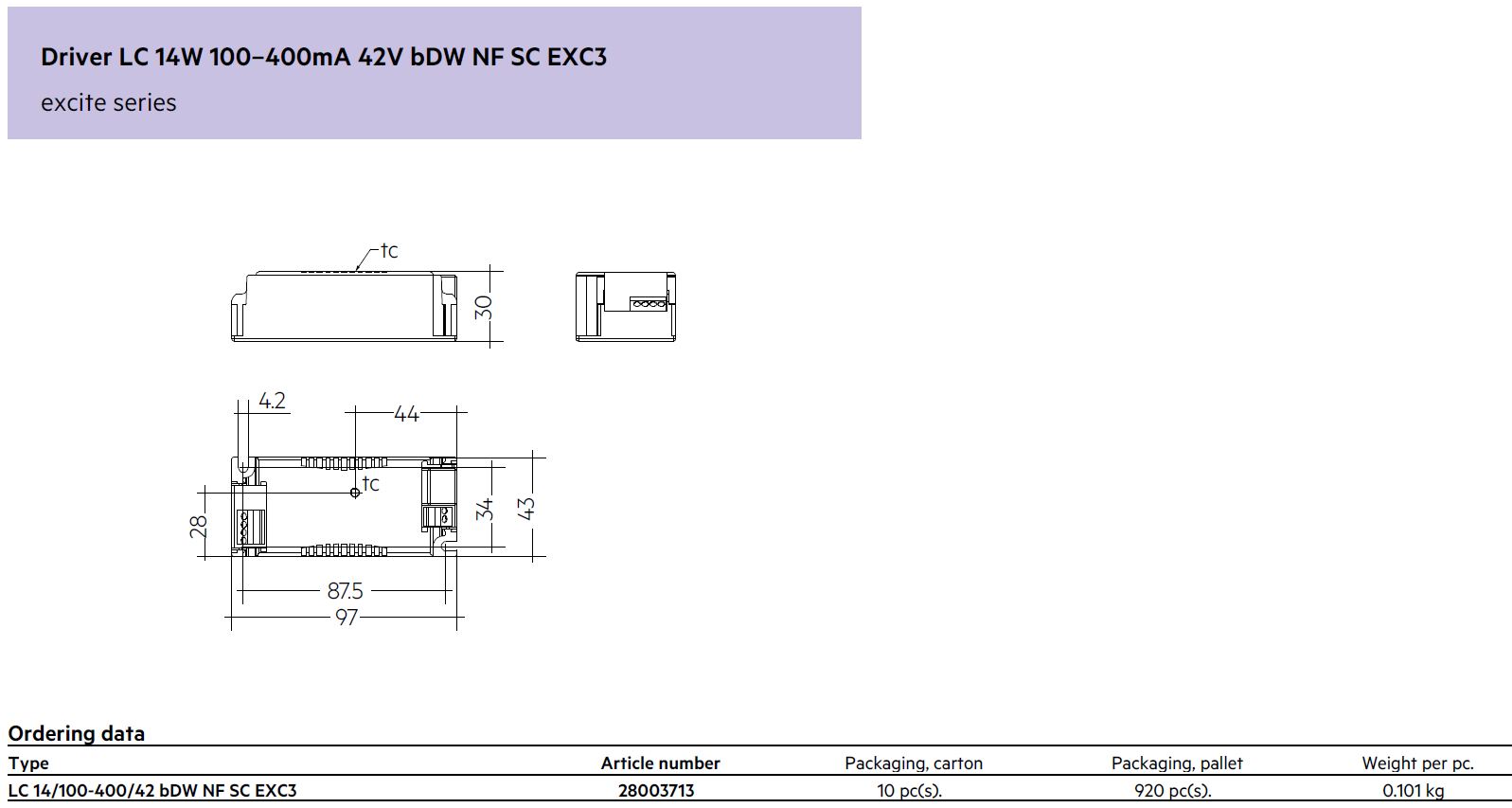

Dimension and Ordering data

Remark

LC 14/100-400/42 bDW NF SC EXC3       28003713

LC 28/300-700/42 bDW NF SC EXC3       28003715

LC 38/650-1050/42 bDW NF SC EXC3     28003716

LC 10/150-400/40 bDW SC PRE2            28002411

LC 17/250-700/50 bDW SC PRE2            28002412

LC 25/350-1050/50 bDW SC PRE2          28002413

LC 45/500-1400/50 bDW SC PRE2          28002414
