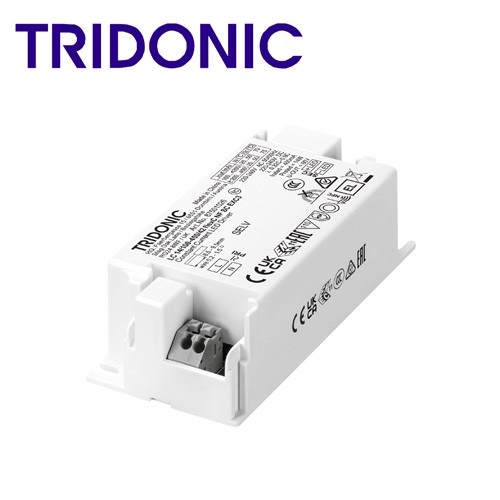

Tridonic LED Driver LC 14W 100–400mA flexC NF SC EXC3 87501026

Product description

- Can be either used build-in or independent with clip-on strain-relief (see accessory)

- For luminaires of protection class I and protection class II

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current between 100 – 400 mA via NFC

- Max. output power 14 W

- Up to 83 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- Near field communication (NFC)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (NFC)

- Constant light output function (CLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (NFC)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- In-field programming possible after installation with NFC interface

Typical applications

- For downlight, spotlight and decorative applications

Approval marks and Standards

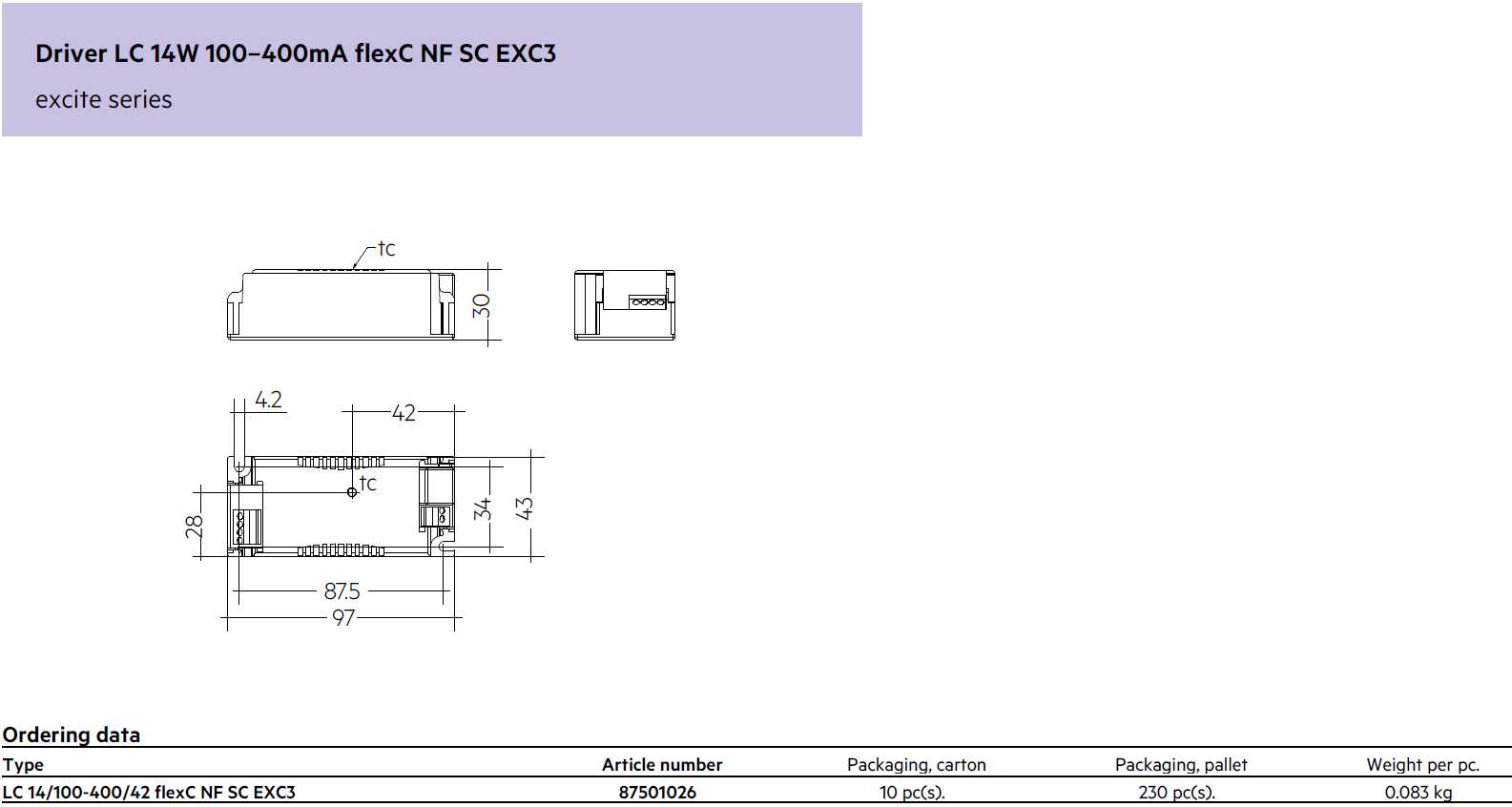

Dimension and Ordering data

Remark

LC 14/100-400/42 flexC NF SC EXC3    87501026

LC 28/300-700/42 flexC NF SC EXC3    87501027

LC 38/650-1050/42 flexC NF SC EXC3  87501028

LC 20/100-1050/44 NF SR EXC3          87500961

LC 27/100-500/54 NF SR EXC3            87500962

LC 45/450-1050/54 NF SR EXC3          87500963
