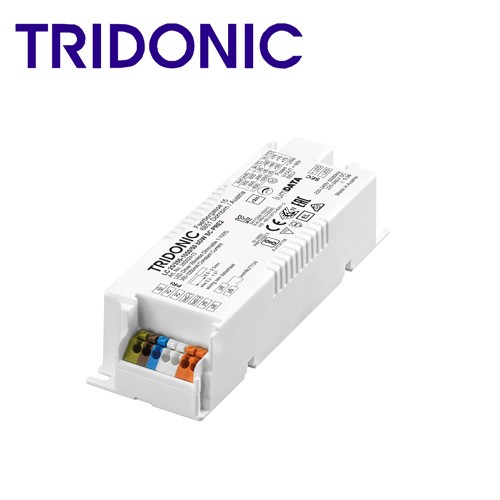

Tridonic LED Driver LC 25W 350–1050mA bDW SC PRE2 28002413

Product description

- Can be integrated in Casambi systems (Casambi Ready)

- NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)

- Dimmable built-in constant current LED driver

- Can be either used built-in or independent with clip-on strain-relief (see accessory)

- Forms automatically a wireless communication network with up to 250 nodes

- Adjustable output current between 350 and 1,050 mA via I-SELECT 2 plugs

- Max. output power 25 W

- Up to 90 % efficiency

- Power input on stand-by < 0.37 W

- Dimming range 1 to 100 %

- For luminaires of protection class I and protection class II

- Nominal lifetime up to 100,000 h

- 5 years guarantee

- We will provide security updates for the next five years after the date of purchase of this product

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- basicDIM Wireless

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (I-SELECT 2)

- Constant light output function (CLO)

- Power-up fading at AC

- Switch off the driver with fade2zero

- Service monitor to log certain events

- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)

- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

- Flexible configuration via basicDIM Wireless and I-SELECT 2

Typical applications

- For linear/area lighting in office applications

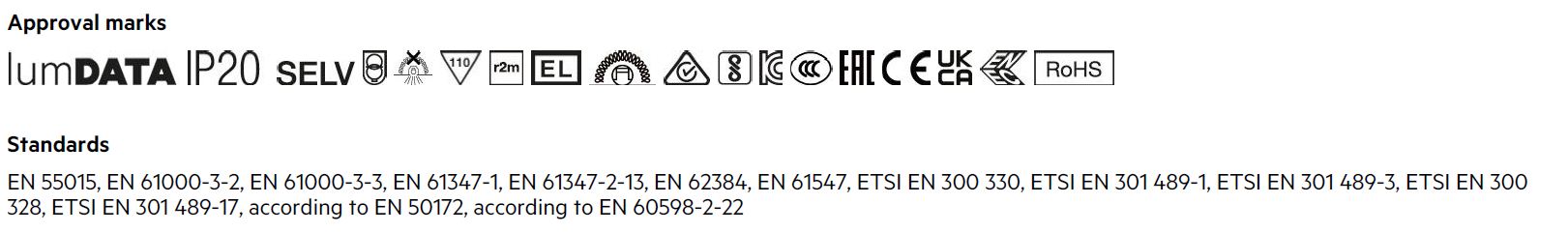

Approval marks and Standards

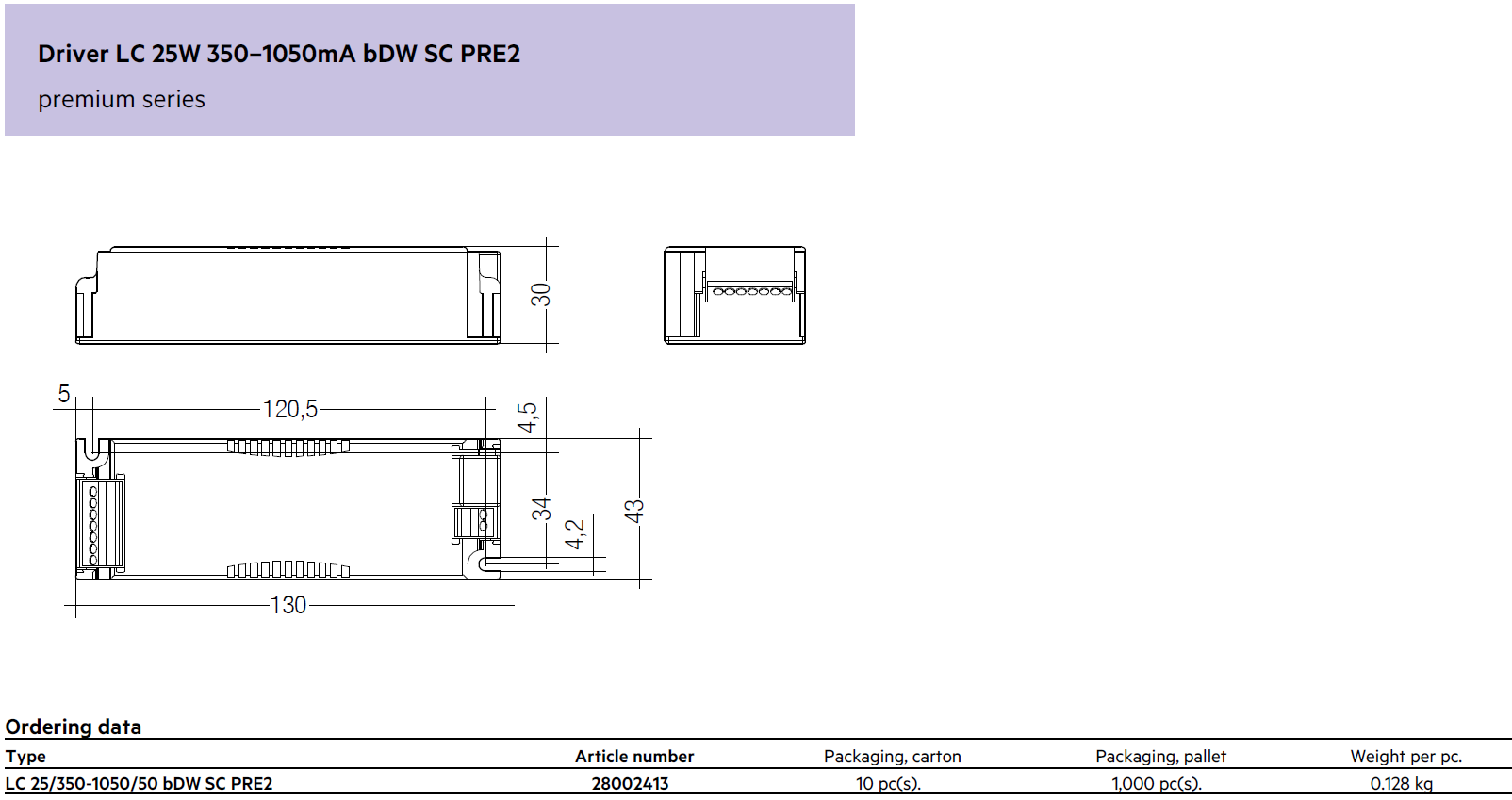

Dimension and Ordering data

Remark

LC 14/100-400/42 bDW NF SC EXC3       28003713

LC 28/300-700/42 bDW NF SC EXC3       28003715

LC 38/650-1050/42 bDW NF SC EXC3     28003716

LC 10/150-400/40 bDW SC PRE2             28002411

LC 17/250-700/50 bDW SC PRE2             28002412

LC 25/350-1050/50 bDW SC PRE2           28002413

LC 45/500-1400/50 bDW SC PRE2           28002414
