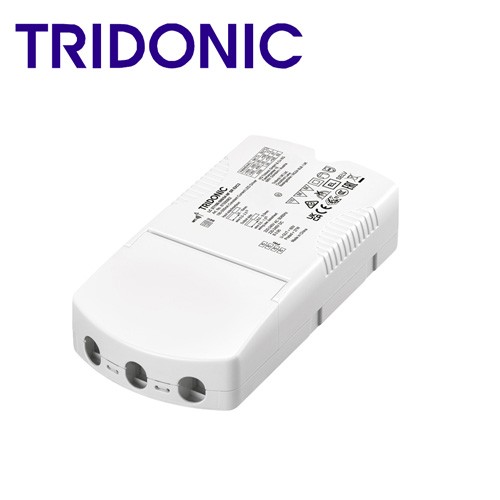

Tridonic LED Driver LC 27W 100-500mA 54V NF SR EXC3 87500962

Product description

- Independent constant current LED driver

- Output current adjustable between 100 –500 mA with NFC

- Max. output power 27 W

- Up to 84 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

- Toolless mounting of strain relief

Interfaces

- Near field communication (NFC)

Functions

- Adjustable output current in 1-mA-steps (NFC)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Surge protection voltage 1 kV (L – N)

- Suitable for emergency escape lighting systems acc. to EN 50172

- For cable cross-sections up to 2.5 mm²

Benefits

- Flexible configuration via companionSUITE (NFC)

- Application-oriented operating window for maximum compatibility

Typical applications

- For applications in downlight and decorative luminaires

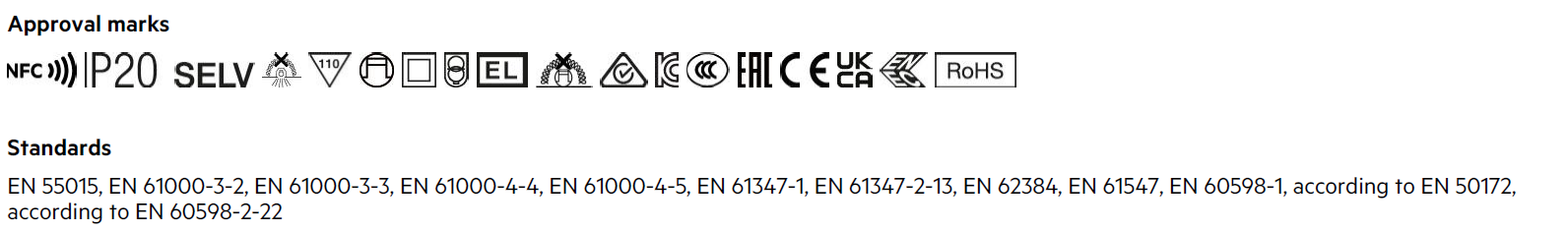

Approval marks and Standards

Dimension and Ordering data

Remark

LC 14/100-400/42 flexC NF SC EXC3    87501026

LC 28/300-700/42 flexC NF SC EXC3    87501027

LC 38/650-1050/42 flexC NF SC EXC3  87501028

LC 20/100-1050/44 NF SR EXC3          87500961

LC 27/100-500/54 NF SR EXC3            87500962

LC 45/450-1050/54 NF SR EXC3          87500963
