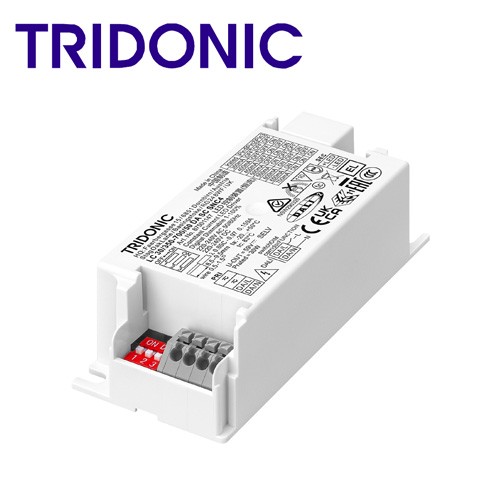

Tridonic LED Driver LC 30W 350-700mA DA SC SNC4 87501147

Product description

- Can be either used built-in or independent with clip-on strain-relief

- For luminaires of protection class I and protection class II

- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711

- Temperature protection as per EN 61347-2-13 C5e

- Adjustable output current via dip switch or DALI

- Selectable fixed output current 350, 400, 450, 500, 550, 600, 650 and 700 mA (pre-selected current 350 mA)

- Max. output power 30 W

- Up to 88 % efficiency

- Nominal lifetime up to 100,000 h

- 5 years guarantee

Housing properties

- Casing: polycarbonate, white

- Type of protection IP20

Interfaces

- one4all (DALI-2, switchDIM, corridorFUNCTION)

- Terminal blocks: 45° push terminals

Functions

- Adjustable output current in 1-mA-steps (DALI)

- Constant light output function (CLO)

- Protective features (overtemperature, short-circuit, overload, no-load)

- Suitable for emergency escape lighting systems acc. to EN 50172

Benefits

- Flexible configuration via companionSUITE (DALI)

- Application-oriented operating window for maximum compatibility

- Best energy savings due to low stand-by losses and high efficiency

Typical applications

- For downlight, spotlight and decorative applications

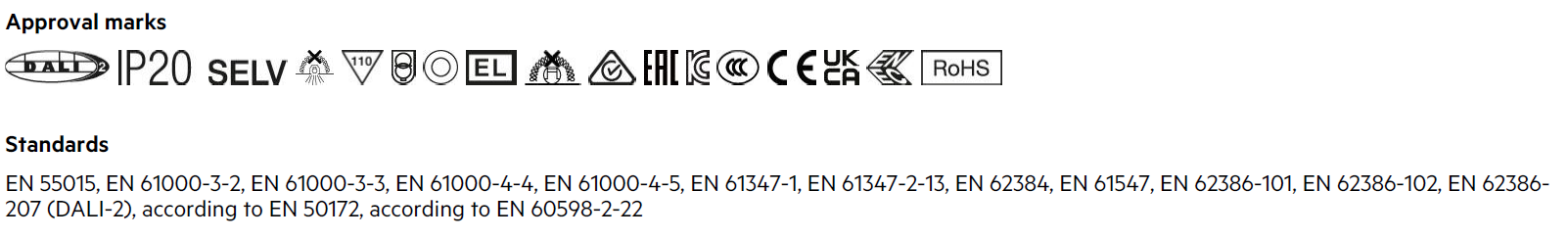

Approval marks and Standards

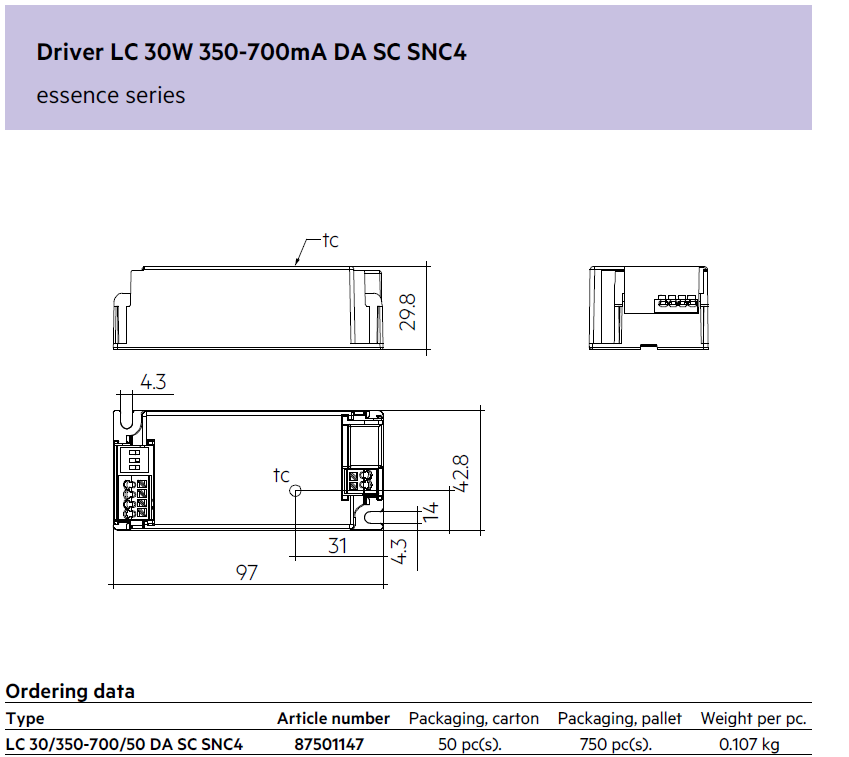

Dimension and Ordering data

Remark

LC 15/100-400/42 DA SR SNC4     87501146

LC 30/350-700/50 DA SC SNC4     87501147

LC 45/700-1050/50 DA SC SNC4   87501148
